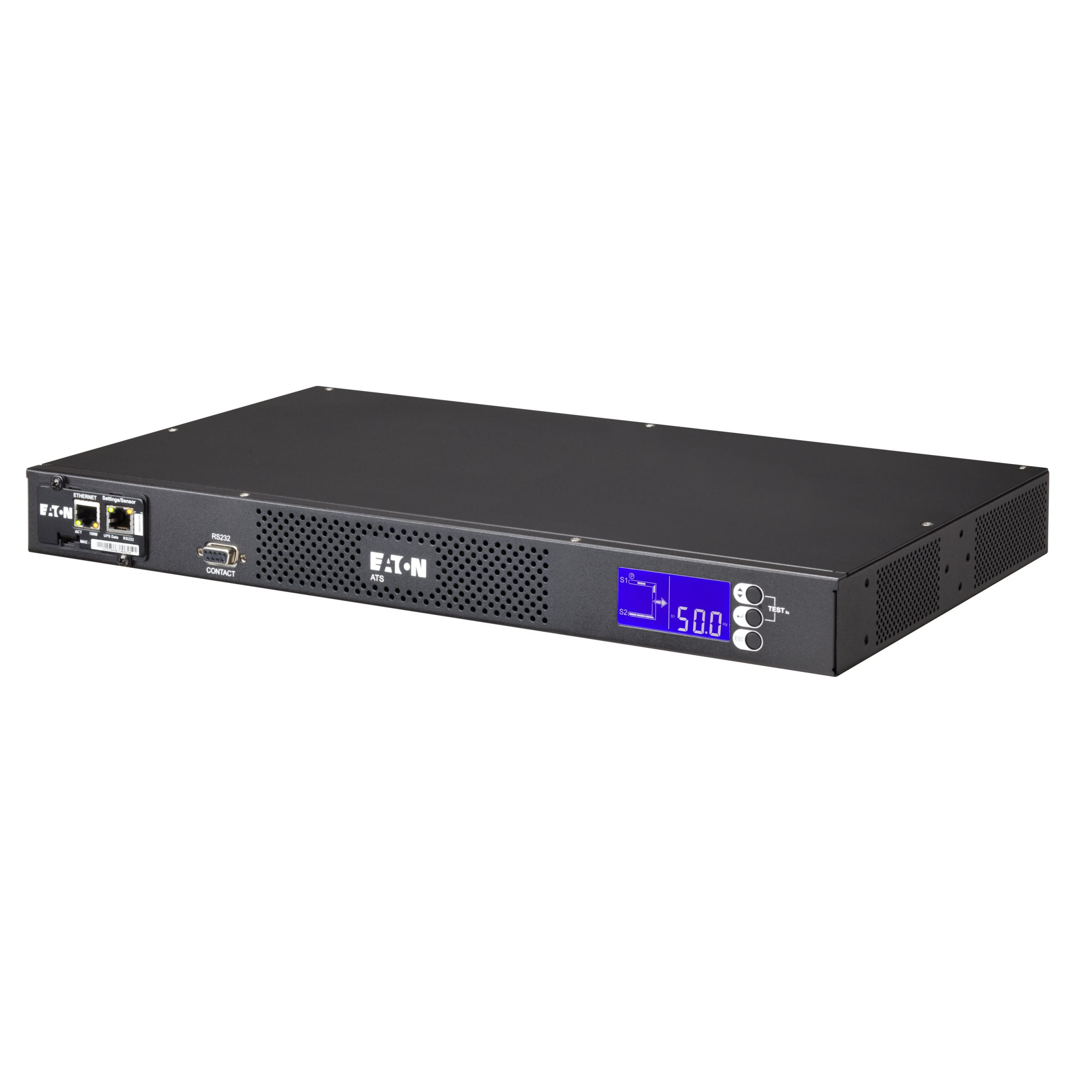

Eaton ATS

Features and Benefits

  • 1U rack form factor
  • Metering and configuration capabilities are possible through ATS 16’s LCD.
  • RS232 serial port
  • Network NMC card (on netpack version)

Models

Overview

Available Models of Eaton ATS:

  • EATS115 : Eaton ATS rack PDU, 1U, (2) 5-15P input, 1.44 kW max, 120V, 12A, 10 ft cord, Single-phase, Outlets: (10) 5-15R
  • EATS120 : Eaton ATS rack PDU, 1U, (2) 5-20P input, 1.92 kW max, 120 V, 16 A, 6 ft cord, Single-phase, Outlets: (10) 5-20 R
  • EATS16 : Eaton ATS rack PDU, 1U, Inputs (2) C20, 3.84 kW max, 16A, 200-240V, Outlets 8XC13:1XC19
  • EATS16-IN : 9001-5020 16A ETN ATS 1P C19,C13/C19 EU 230V IND
  • EATS16CN : Automatic Transfer ePDU, China
  • EATS16N : Eaton ATS rack PDU, Netpack, 1U, Inputs (2) C20, 3.84 kW max, 16A, 200-240V, Outlets 8XC13:1XC19
  • EATS16N-KR : 16A EATON ATS 1P C19,C13/C19 KR 230V COM
  • EATS220 : Eaton ATS rack PDU, 1U, (2) L6-20P, (2) C20 input, 3.33 kW max, 200-240V, 16A, 8 ft cord, Single-phase, Outlets: (8) C13, (1) C19
  • EATS30N : Eaton ATS rack PDU, 1U, Inputs Hardwired, 7.4 kW max, 30A, 200-240V, Output Hardwired

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy Eaton ATS from APulsar Technologies, Eaton Authorised Direct Reseller.

Order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction:

The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.



Specifications

Nominal current
  • A16 (ATS 16 model only)
  • 16A (ATS 16 Netpack model only)
  • 30 A* (ATS 30 model only)

Nominal voltage/input frequency

  • 208/220/230/240 V ; 50/60 Hz (ATS 16 model and ATS 16 Netpack model)
  • 220/230/240 V ; 50/60 Hz (ATS 30 model only)

Typical transfer time

  • 8 ms (ATS 16 model only)

Safety

  • IEC/EN 62310-1 and IEC/EN 60950-1 (ATS 16 model and ATS 16 Netpack model)
  • IEC/EN 60950-1 (ATS 30 model only)

EMC

  • IEC/EN 62310-2 (ATS 16 model only)

Marking

  • CE (ATS 16 model only)



Inputs

  • 2 IEC C20 + 2 input cables (ATS 16 model and ATS 16 Netpack model)
  • Hardwired (ATS 30 model only)

Outputs

  • 8 IEC C13 + 1 IEC C19 (ATS 16 model and ATS 16 Netpack model)
  • Hardwired (ATS 30 model only)

User interface

  • LCD (ATS 16 model and ATS 16 Netpack model)
  • LED (ATS 30 model only)

Network communication

  • No (ATS 16 model only)
  • Yes (ATS 16 Netpack model and ATS 30 model)

Dimensions H x W x D

  • 43 x 430 x 250 mm (ATS 16 model and ATS 16 Netpack model)
  • 43 x 440 x 390

Weight

  • 3,3 kg
  • 3,5 kg
  • 5 kg
