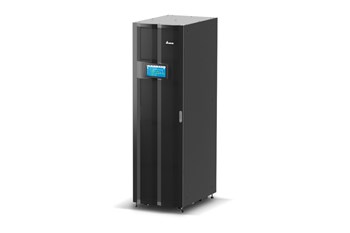

Delta DPH Series 15-60/105 kVA

Features and Benefits

  • High Integration and Space Saving
    • Fully integrated in one 42U cabinet with power supply, battery runtime, static transfer switch and input/output/bypass breakers
  • Ultimate Availability
    • Fully modularized design and hot-swappable modules for easy deployment and maintenance
    • Redundant aux power and controller design
    • Dual CAN bus to ensure the inherent reliability on signal level
    • Battery module’s LED fuse warning indicators can alert operators in the event of a blown fuse
  • Excellent Power Performance
    • Industry-leading high power density of power module: 15 kVA/kW in 2U height
    • AC-AC conversion efficiency 95% and ECO mode efficiency up to 98.5% with Energy Star 2.0 certification
    • Green mode for effective utilization
  • High Manageability
    • Environment Management System integration (optional)
    • Power consumption trend calculation
    • Inbuilt Ethernet and RS485 communication interface
    • User-friendly 10” touch panel
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • DPH-60K-LV
  • DPH-105K-LV

Overview

Introduction

The Modulon DPH supports ultimate availability for datacenter operations and provides the benefit of “pay as you go” without over-sizing the UPS. While achieving ultimate availability, the Modulon DPH does not compromise on power efficiency performance. When availability, efficiency and expanding according to business needs are essential, the Modulon DPH is the ideal UPS system to provide power protection and total cost of ownership (TCO) savings.



Specifications

Power Rating

kVA / kW

DPH-60K-LV

  • 15, 30, 45, 60

DPH-105K-LV

  • 15, 30, 45, 60, 75, 90, 105

Power Module Quantity

DPH-60K-LV

  • 4+1 redundancy

DPH-105K-LV

  • 7+1 redundancy

Battery Module

DPH-60K-LV

  • Quantity Inbuilt 16 pcs (4 strings)

DPH-105K-LV

  • Modular battery cabinet



Nominal Voltage

  • 208/120 Vac, 220/127 Vac (3 phase, 4-wire +G)

Voltage Range

  • 166~253 Vac (full load)

iTHD

  • < 5% (non-linear); < 3%(linear) *

Power Factor

  • > 0.99

Frequency

  • 40~70 Hz

Voltage

  • 208/120 Vac, 220/127 Vac (3 phase, 4-wire +G)

Voltage Regulation

  • ±1% (static); ±5% (dynamic)

Power Factor

  • Unity

THDv

  • < 2% (Linear); < 5% (Non-linear)

AC-AC Efficiency

  • 95%

ECO Efficiency

  • Up to 98.5%

Overload Capability

  • ≤ 125%: 10 minutes; ≤ 150%: 1 minute; > 150%: 1 second
  • 10” Touch Panel

Nominal Voltage

  • ±168 Vdc (±14 pcs)

Charge Voltage

  • ±190 Vdc (adjustable from 182 Vdc to 196 Vdc)

Charge Current

  • 6A Max. per power module

Operating Temperature

  • 32 to 104°F (0 to 40°C)

Storage Temperature

  • -13 to 167°F (-25 to 75°C)

Relative Humidity

  • 5~95% non-condensing

Audible Noise

  • < 68 dBA **

Compliance

  • UL 1778, FCC Class A, Energy Start 2.0

Parallel

  • Maximum 4 units

Communication Interface

  • Ethernet, RS485

Dimensions (W x D x H)

  • 23.62” x 33.46” x 78.74” (600 x 850 x 2000 mm)

Weight: UPS System

DPH-60K-LV

  • 562.2 lb (255 kg)

DPH-105K-LV

  • 619.5 lb (281 kg)

Weight: 15 kW Power Module

  • 46.3 lb (21 kg / 1 pc)

Weight: Battery Module

  • 51.8 lb (23.5 kg / 1 pc, 1 battery module=9 Ah battery x 7 pcs)

Dimensions (W x D x H)

  • 23.62” x 33.46” x 78.74” (600 x 850 x 2000 mm)

Weight: w/ Full Battery Module

  • 2123.1 lb (963 kg)

Weight: w/o Battery Module

  • 465.2 lb (211 kg)

Maximum Number of Battery Strings

  • 8

Maximum Number of Battery Modules

  • 32
