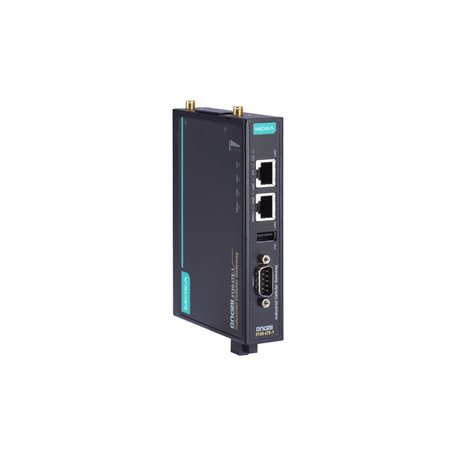

OnCell 3120-LTE-1 Series

Features and Benefits

  • Support MRC Quick Link Ultra for centralized monitoring and remote access to the on-site devices
  • Low power consumption (40 mW in standby)
  • GuaranLink for reliable cellular connectivity
  • Dual cellular operator backup with dual-SIM
  • Cellular WAN and Ethernet WAN backup mechanism for a complete path redundancy
  • Rugged hardware design well suited for hazardous locations (ATEX Zone 2/IECEx)
  • VPN secure connection capability with IPsec, GRE, and OpenVPN protocols
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • OnCell 3120-LTE-1-EU
  • OnCell 3120-LTE-1-EU-T
  • OnCell 3120-LTE-1-US
  • OnCell 3120-LTE-1-US-T
  • OnCell 3120-LTE-1-AU
  • OnCell 3120-LTE-1-AU-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy OnCell 3120-LTE-1 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The OnCell 3120-LTE-1 Series is a set of reliable, secure, low power consumption LTE gateways with state-of-the-art global LTE Cat 1 coverage. These LTE cellular gateways provide reliable connections from remote serial and Ethernet devices to a cellular network so that your applications can be easily implemented for IIoT remote-access scenarios. With its efficient power saving features, the OnCell 3120-LTE-1 Series lowers power consumption to less than 40 mW when in standby mode which can be managed using schedules. To enhance industrial reliability, the OnCell 3120-LTE-1 features GuaranLink to ensure robust cellular connectivity.

Remote Access Gateway with VPN and Network Security

  • Supports MRC Quick Link Ultra for remote access and is easy to configure. For more information, please visit Secure Remote Access (https://www.moxa.com/en/products/industrial-network-infrastructure/secure-remote-access/moxa-remote-connect-suite).
  • Secure and reliable VPN support with NAT/OpenVPN/GRE/IPsec functionality
  • Cybersecurity features based on IEC 62443-4-2

Industrial-grade Reliability

  • Rugged hardware design well suited for hazardous locations (ATEX, C1D2, IECEx)
  • GuaranLink for reliable cellular connectivity
  • WAN backup between cellular and Ethernet
  • -30 to 70°C wide operating temperature
  • Low power consumption: Less than 40 mW in standby mode

Specifications

Cellular Interface

Cellular Standards

  • LTE Cat. 1
  • HSPA
  • UMTS
  • EDGE
  • GPRS
  • GSM

LTE Data Rate

  • 10 MHz bandwidth: 10.2 Mbps DL, 5.2 Mbps UL

HSPA Data Rates

  • 7.2 Mbps DL, 5.76 Mbps UL

Band Options (EU)

  • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) / LTE Band 28A (700 MHz)
  • UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz
  • GSM 900 MHz / 1800 MHz

Band Options (AU)

  • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 9 (1800 MHz) / LTE Band 18 (850 MHz) / LTE Band 19 (850 MHz) / LTE Band 26 (850 MHz) / LTE Band 28 (700 MHz)
  • UMTS/HSPA 2100 MHz / 850 MHz / 800 MHz / 900 MHz

Band Options (US)

  • LTE Band 2 (1900 MHz) / LTE Band 4 (1700MHz (AWS)) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz)
  • UMTS/HSPA 1900 MHz / 1700 MHz / 850 MHz

No. of SIMs

  • 2

SIM Format

  • Nano SIM

Cellular Antenna Connectors

  • 2 SMA female

10/100BaseT(X) Ports (RJ45 connector)

  • 2

No. of Ports

  • 1

Connector

  • DB9 male

Serial Standards

  • RS-232/422/485

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Parity

  • None, Even, Odd, Space, Mark

Baudrate

  • 75 bps to 921.6 kbps

Console Port

  • RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

Management

  • GuaranLink
  • DHCP Server
  • DDNS
  • ARP
  • Telnet
  • TCP/IP
  • UDP
  • SMTP
  • Remote SMS Control
  • Power Saving
  • Syslog
  • SNMPv1/v2c/v3
  • Serial Console
  • Telnet Console
  • Web Console
  • Wireless Search Utility
  • Moxa Remote Connect (MRC)

Firewall

  • Filter: MAC, IP protocol, port-based
  • Access IP list

Security

  • HTTPS

Time Management

  • SNTP Client

Authentication

  • PSK/X.509/RSA

Encryption

  • DES, 3DES, AES, MD5, SHA-1, DH2, DH5

Concurrent VPN Tunnels

  • 5

Features

  • NAT loopback
  • 1-to-1
  • N-to-1
  • Port forwarding

OpenVPN

  • OpenVPN (client and server), Tunnel mode (routing) and TAP mode (bridge)

Encryption

  • Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC

Concurrent VPN Tunnels

  • 5

Input Current

  • 0.8 A (max.)

Input Voltage

  • 9 to 36 VDC

Power Consumption

  • 5 W (typ.)

Power Connector

  • Terminal block

Reverse Polarity Protection

  • Supported

Power Button

  • Reset button

Housing

  • Metal

IP Rating

  • IP30

Dimensions

  • 128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in)

Weight

  • 550 g (1.22 lb)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)

Operating Temperature

  • Standard Models: 0 to 55°C (32 to 131°F)
  • Wide Temp. Models: -30 to 70°C (-22 to 158°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35
  • EN 61000-6-2/-6-4

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz
  • IEC 61000-4-8: 30 A/m

Freefall

  • IEC 60068-2-32

Hazardous Locations

  • ATEX
  • IECEx
  • Class I Division 2

Radio Frequency

  • PTCRB
  • FCC ID SLE-LE910CXNF

Radio

  • RCM
  • KC
  • JATE
  • NCC
  • TELEC

Carrier Approvals

  • Verizon
  • AT&T

Cellular Standards

  • EN 301511
  • EN 301908-1
  • EN 62311(MPE SAR)
  • AS/CA S042
  • EN 301489-1/-52

Safety

  • IEC 60950-1
  • IEC 62368-1
  • UL 60950-1
  • UL 62368-1

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-6

Green Product

  • RoHS, CRoHS, WEEE

Time

  • 585,775 hrs

Standards

  • Telcordia SR332

Warranty Period

  • 5 years
