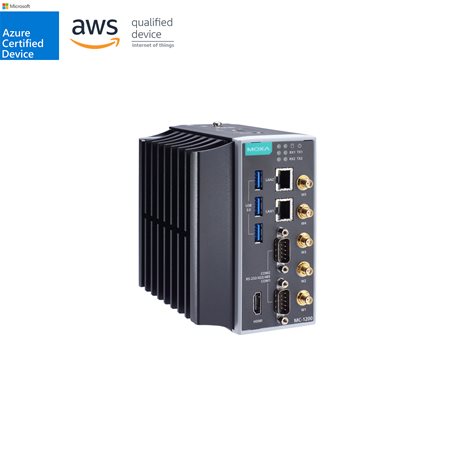

MC-1200 Series

Features and Benefits

  • 3 Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules
  • 7th Gen Intel® Core™ processor (Kaby Lake U)
  • 2 built-in DDR4 memory slots; total capacity up to 32 GB
  • Built-in TPM 2.0 module
  • Variety of interfaces: 2 serial ports, 2 Giga LANs, 3 USB 3.0 (type A) ports

Models

  • MC-1220-KL7-T-S
  • MC-1220-KL5-T
  • MC-1220-KL5-T-S
  • MC-1220-KL1-T-S

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MC-1200 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The MC-1200 Series computers are built around a 7th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 1 HDMI display port, 3 USB 3.0 ports, 2 gigabit LAN ports, and 2 3-in-1 RS-232/422/485 serial ports. The MC-1200 is equipped with a 2.5” HDD/SSD slot and a built-in TPM 2.0 module.

Additional value and convenience is provided through a modular design with three independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules.

With UL Class 1 Division 2 compliance, the MC-1200 is sure to deliver stable and reliable system operation for oil and gas applications. Class 1 Division 2 (C1D2) is a certification issued to products that allow them to be used in potentially hazardous environments. Examples of hazardous work settings include locations where flammable or explosive gasses, certain chemicals, airborne fibers, or vapors could be excessive under abnormal circumstances.

The MC-1200 is designed to operate reliably in extreme conditions, such as continuous exposure to low or high temperatures, humidity, high vibration, and power surges, making them perfect for heavy industry, solar grid, water/wastewater, oil and gas, and transportation applications.

Proactive Monitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility available with some Moxa computers to track a number of system parameters. You can view the current values for key parts by simply clicking on the icons corresponding to the parameters in a Windows-based user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relays and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.

The Proactive Monitoring tool is currently available with the following:DA-820C SeriesDA-720 SeriesMC-1200 SeriesMC-7400 Series

Appearance

Specifications

Computer

CPU

  • MC-1220-KL7-T-S: Intel® Core™ i7-7600U Processor (4M Cache, up to 3.90 GHz)
  • MC-1220-KL5-T-S: Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz)
  • MC-1220-KL1-T-S: Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
  • MC-1220-KL5-T: Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz)

Storage Slot

  • mSATA slots x 1, SATA 3.0, internal mini-PCIe socket

System Memory Slot

  • SODIMM DDR4 slot x 2, up to 32 GB max.

Supported OS

  • Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS)
  • Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)

Graphics Controller

  • MC-1220-KL7-T-S: Intel® HD Graphics 620
  • MC-1220-KL5-T-S: Intel® HD Graphics 620
  • MC-1220-KL1-T-S: Intel® HD Graphics 610
  • MC-1220-KL5-T: Intel® HD Graphics 620

Video Input

  • HDMI x 1, up to 3840 x 2160 resolution at 30 Hz

USB 3.0

  • USB 3.0 hosts x 3, type-A connectors

Buttons

  • Reset button

Connector

  • DB9 male

Serial Standards

  • RS-232/422/485 (software selectable)

Serial Ports

  • 2 x RS-232/422/485

Flow Control

  • RTS/CTS, XON/XOFF

Baudrate

  • 50 bps to 115.2 kbps

ESD Protection

  • 4 kV contact, 8 kV air

Magnetic Isolation Protection

  • 1.5 kV (built-in)

10/100/1000BaseT(X) Ports (RJ45 connector)

  • 2

System

  • Power x 1

Serial

  • 2 per port (Tx, Rx)

RS-232

  • TxD, RxD, RTS, CTS, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

Installation

  • Wall mounting (with optional kit), DIN-rail mounting

Housing

  • Metal

Dimensions

  • 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)

Weight

  • Product only: 1.40 kg (0.63 lb)

Green Product

  • RoHS, CRoHS, WEEE

Power Button

  • ON/OFF (rear panel)
  • Reset button

Input Voltage

  • 9 to 36 VDC

Input Current

  • 8 A @ 9 VDC, 2 A @ 36 VDC

Power Consumption

  • 72 W

Operating Temperature

  • -40 to 70°C (-40 to 158°F)

Storage Temperature

  • -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Shock

  • IEC 60068-2-27

Safety

  • UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1

EMC

  • EN 55032/35, CISPR 32, FCC Part 15B Class A

Hazardous Locations

  • ATEX Zone 2, IECEx Zone 2, Class I Division 2

Alert Tools

  • Built-in RTC (real-time clock) with lithium battery backup

Time

  • 510,913 hrs

Standards

  • Telcordia (Bellcore), GB

Warranty Period

  • 3 years
