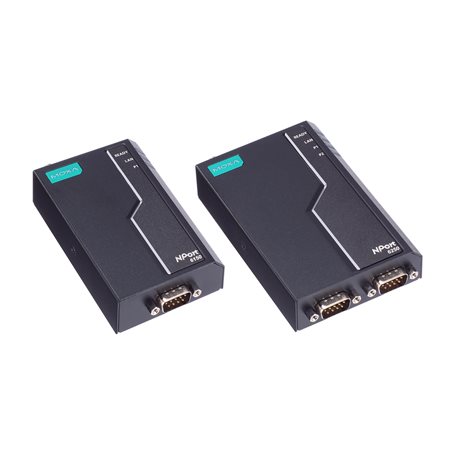

NPort 6100-G2/6200-G2 Series

Features and Benefits

  • Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
  • Supports SSL certificate signing by RSA-4096 / ECC-521
  • Secure Boot only allows Moxa-authorized firmware to run on devices
  • Side-mount installation option and two-sided LEDs to meet all installation scenarios and enable system downsizing
  • Easy RS-485 configuration of serial interfaces with software-adjustable pull high/low resistor and terminator

Models

  • NPort 6150-G2
  • NPort 6250-G2
  • NPort 6250-G2-T
  • NPort 6150-G2-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy NPort 6100-G2/6200-G2 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

Moxa has leveraged IEC 62443-4-1 secure development lifecycle process to develop a new generation of secure terminal servers. The NPort 6100- G2/6200-G2 Series secure terminal servers follow the IEC 62443-4-2 design and guidelines to securely connect your legacy serial devices to industrial networks. In addition, the user experience is enhanced based on Moxa’s 35 years of experience in the serial-connectivity field by providing versatile installation means for different space requirements and an easy troubleshooting tool for maintenance.

Secure Data Transmission

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6100-G2/6200-G2 secure terminal servers support the TLS and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6100-G2/6200-G2, you can be rest assured that serial data is transmitted securely over both private and public networks.

Easy Provisioning With Side-mount and Software-configurable Pull High/low Resistors and Terminator

In line with the trend for smaller systems and easier setup, the NPort® 6100-G2/6200-G2 secure terminal servers support side-mount installation and two-sided LEDs to fit in a variety of installation scenarios with the added benefit of reduction in the system size. The software-configurable pull high/low resistors and terminator function eliminate the requirement to open the chassis to adjust the pull high/low resistors or terminators, making it convenient for operators to install the devices at field sites.

Easy Troubleshooting With One-click Log Collection

At the maintenance stage, system errors may require you to call for help. Device vendors might take a long time to troubleshoot issues because they need to collect information and then hold discussions with the technical support team. The NPort 6100-G2/6200-G2 comes with a one-click log collection function to enable logging of data, which can provide all the data that a technical support team needs to quickly troubleshoot system issues.

Specifications

Memory

SD Slot

  • NPort 6200-G2 models:
  • microSD card
  • Up to 2 TB (high speed, 25 Mbps)

10/100BaseT(X) Ports (RJ45 connector)

  • 1
  • Auto MDI/MDI-X connection

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Configuration Options

  • Web Console (HTTP/HTTPS)
  • Windows Utility
  • Device Search Utility (DSU)
  • MCC Tool
  • Serial Console

Management

  • ARP
  • DHCP Client
  • DNS
  • HTTPS
  • ICMP
  • IPv4/IPv6
  • SMTP
  • SMTPS
  • SNMPv1/v2c/v3
  • SNTP
  • TCP/IP
  • UDP
  • WINS

Windows Real COM Drivers

  • Windows 11, 10, 8.1, 8, and 7
  • Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2

Linux Real TTY Drivers

  • Kernel versions 6.x, 5.x, and 4.x

Fixed TTY Drivers

  • macOS versions: 14, 13, 12, and 11

Arm®-based Platform Support

  • Windows 11
  • Linux kernel 6.x, 5.x, and 4.x
  • macOS 14, 13, 12, and 11

Virtual Machine

  • VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x)
  • VMware Fusion (Windows on macOS 14, 13, 12, and 11)
  • Parallels Desktop (Windows on macOS 14, 13, 12, and 11)

Time Management

  • SNTP Client

MIB

  • MIB-II
  • RFC1213, RFC1317
  • Private MIB

Unicast Routing

  • RIPV1/V2
  • Static Route

Root of Trust

  • Secure Boot
  • True Random Number Generator (TRNG)
  • Security Screws

Authentication

  • Local database
  • RADIUS
  • TACACS+

Encryption

  • AES-128
  • AES-256
  • ECC-256
  • ECC-384
  • ECC-521
  • HMAC
  • RSA-1024
  • RSA-2048
  • RSA-3072
  • RSA-4096
  • SHA-256
  • SHA-384

Security Protocols

  • HTTPS (TLS 1.2)
  • SNMPv3
  • SSHv2

Connector

  • DB9 male

No. of Ports

  • NPort 6150-G2 models: 1
  • NPort 6250-G2 models: 2

Serial Standards

  • RS-232
  • RS-422
  • RS-485

Secure Operation Modes

  • Reverse SSH
  • Secure Pair Connection
  • Secure Real COM
  • Secure TCP Client
  • Secure TCP Server
  • SSH

Standard Operation Modes

  • Disabled
  • Pair Connection
  • SLIP
  • PPP
  • Real COM
  • Reverse Terminal
  • RFC2217
  • TCP Client
  • TCP Server
  • Terminal
  • UDP

Baudrate

  • 50 bps to 921.6 kbps (supports non-standard baudrates)

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Flow Control

  • None
  • RTS/CTS
  • DTR/DSR
  • RTS Toggle
  • XON/XOFF

Parity

  • None, Even, Odd, Space, Mark

RS-485 Data Direction Control

  • Automatic Data Direction Control (ADDC)

Terminator for RS-485

  • 120 ohms

Pull High/Low Resistor for RS-485

  • 1 kilo-ohm, 150 kilo-ohms
    (software–configurable)

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

Input Current

  • 12 to 48 VDC, 160 mA (max.)

Input Voltage

  • 12 to 48 VDC

Automatic Reboot Trigger

  • Built-in WDT

Alert Tools

  • Built-in buzzer and RTC (real-time clock)

Housing

  • Metal

Dimensions (with ears)

  • NPort 6150-G2 models: 64 x 111.8 x 25 mm (2.52 x 4.4 x 0.98 in)
  • NPort 6250-G2 models: 76.3 x 122.4 x 25 mm (3 x 4.82 x 0.98 in)

Weight

  • Product with package:
    NPort 6150-G2: 228 g (0.50 lb); 437 g (0.96 lb)
    NPort 6150-G2-T: 228 g (0.50 lb); 302 g (0.67 lb)
    NPort 6250-G2: 278 g (0.61 lb); 487 g (1.07 lb)
    NPort 6250-G2-T: 278 g (0.61 lb); 352 g (0.78 lb)

Installation

  • Desktop
  • DIN-rail mounting (with optional kit)
  • Wall mounting (with optional kit)
  • Side-panel mounting (with optional kit)

Operating Temperature

  • Standard models: -10 to 60°C (14 to 140°F)
  • Standard models with power adapter (in the box):
    0 to 40°C (32 to 104°F)
  • Wide temp. models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
  • IEC 61000-4-5 Surge: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
  • IEC 61000-4-6 CS: 3 V
  • IEC 61000-4-8 PFMF
  • IEC 61000-4-11

Traffic Control

  • NEMA TS2

Vibration

  • IEC 60068-2-6

Package Drop Test

  • ISTA 1A

Safety

  • IEC 62368-1
  • UL 62368-1
  • EN 62368-1

International Approval

  • KC

Green Product

  • RoHS, CRoHS, WEEE

Time

  • NPort 6150-G2/6150-G2-T: 3,843,653 hrs
  • NPort 6250-G2/6250-G2-T: 3,351,651 hrs

Standards

  • Telcordia Standard SR-332
  • Telcordia SR-332 Issue 4

Warranty Period

  • 5 years
