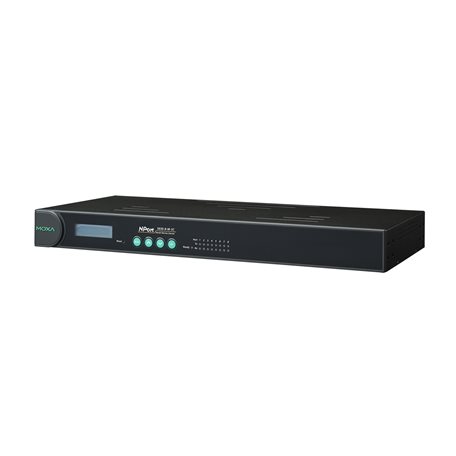

Nport 5600 Series

Features and Benefits

  • Standard 19-inch rackmount size
  • Easy IP address configuration with LCD panel (excluding wide-temperature models)
  • Configure by Telnet, web browser, or Windows utility
  • Socket modes: TCP server, TCP client, UDP
  • SNMP MIB-II for network management
  • Universal high-voltage range: 100 to 240 VAC or 88 to 300 VDC
  • Popular low-voltage ranges: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • NPort 5610-8
  • NPort 5610-8-48V
  • NPort 5630-8
  • NPort 5610-16
  • NPort 5610-16-48V
  • NPort 5630-16
  • NPort 5650-8
  • NPort 5650-8-M-SC
  • NPort 5650-8-S-SC
  • NPort 5650-8-T
  • NPort 5650-8-HV-T
  • NPort 5650-16
  • NPort 5650-16-M-SC
  • NPort 5650-16-S-SC
  • NPort 5650-16-T
  • NPort 5650-16-HV-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy Nport 5600 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.

Network Readiness for up to 16 Serial Devices

  • Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.

19-Inch Rackmount Device Server

  • NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.

Real COM/TTY Ports

  • Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.

LED Indicators to Ease Your Maintenance Tasks

  • The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but they also help field engineers monitor the status of attached serial devices.

Adjustable Termination and Pull High/Low Resistors/h4>

  • When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5650-8/16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

  • 1

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Optical Fiber

100BaseFX
Multi-Mode Single-Mode
Fiber Cable Type OM1 50/125 µm G.652
800 MHz x km
Typical Distance 4 km 5 km 40 km
Wavelength Typical (nm) 1300 1310
TX Range (nm) 1260 to 1360 1280 to 1340
RX Range (nm) 1100 to 1600 1100 to 1600
Optical Power TX Range (dBm) -10 to -20 0 to -5
RX Range (dBm) -3 to -32 -3 to -34
Link Budget (dB) 12 29
Dispersion Penalty (dB) 3 1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Configuration Options

  • Telnet Console
  • Web Console (HTTP/HTTPS)
  • Windows Utility

Management

  • ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, RFC2217, Rtelnet, PPP, SLIP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

Filter

  • IGMP v1/v2c

Windows Real COM Drivers

  • Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
  • Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
  • Windows Embedded CE 6.0 and 5.0, Windows XP Embedded

Linux Real TTY Drivers

  • Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

Fixed TTY Drivers

  • macOS versions: 14, 13, 12, 11, and 10.1x

Arm®-based Platform Support

  • Windows 11
  • Linux Kernel 6.x, 5.x, and 4.x
  • macOS 14, 13, 12, and 11

Virtual Machine

  • VMWare ESXi (Windows 11/10)
  • VMware Fusion (Windows on macOS 14, 13, 12, 11, and 10.1x)
  • Parallels Desktop (Windows on macOS 14, 13, 12, 11, and 10.1x)

Android API

  • Android 3.1.x and later

Time Management

  • SNTP

Authentication

  • Local database

Encryption

  • HTTPS
  • AES-128
  • RSA-1024
  • SHA-1
  • SHA-256

Security Protocols

  • HTTPS (TLS 1.2)
  • SNMPv3

Connector

  • 8-pin RJ45

No. of Ports

  • 8 ports (NPort 5600-8 models) or 16 ports (NPort 5600-16 models)

Serial Standards

  • NPort 5610 models: RS-232
  • NPort 5630 models: RS-422, RS-485
  • NPort 5650 models: RS-232, RS-422, RS-485

Baudrate

  • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Parity

  • None, Even, Odd, Space, Mark

Flow Control

  • None
  • RTS/CTS (RS-232 only)
  • DTR/DSR (RS-232 only)
  • XON/XOFF

Pull High/Low Resistor for RS-485

  • 1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

  • 120 ohms

RS-485 Data Direction Control

  • Automatic Data Direction Control (ADDC)

Operation Modes

  • Real COM, TCP Client, TCP Server, UDP, Ethernet Modem, Pair Connection, Reverse Telnet, RFC2217, Disabled

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

Input Current

  • NPort 5610-8-48V/16-48V: 135 mA @ 48 VDC
  • NPort 5650-8-HV-T/16-HV-T: 152 mA @ 88 VDC
  • NPort 5610-8/16: 141 mA @ 100 VAC
  • NPort 5630-8/16: 152 mA @ 100 VAC
  • NPort 5650-8/8-T/16/16-T: 158 mA @ 100 VAC
  • NPort 5650-8-M-SC/16-M-SC: 174 mA @ 100 VAC
  • NPort 5650-8-S-SC/16-S-SC: 164 mA @ 100 VAC

Input Voltage

  • HV models: 88 to 300 VDC
  • AC models: 100 to 240 VAC, 47 to 63 Hz
  • DC models: ±48 VDC, 20 to 72 VDC, -20 to -72 VDC

Automatic Reboot Trigger

  • Built-in WDT

Housing

  • Metal

Dimensions (with ears)

  • 480 x 45.5 x 198 mm (18.90 x 1.79 x 7.80 in)

Dimensions (without ears)

  • 440 x 45.5 x 198 mm (17.32 x 1.79 x 7.80 in)

Weight

  • NPort 5650-16-HV-T: 3,820 g (8.42 lb)
  • NPort 5650-8-HV-T: 3,720 g (8.20 lb)
  • NPort 5610-16-48V: 3,260 g (7.19 lb)
  • NPort 5610-8-48V: 3,160 g (6.97 lb)
  • NPort 5630-16: 2,560 g (5.64 lb)
  • NPort 5630-8/5650-16/5650-16-T: 2,510 g (5.53 lb)
  • NPort 5650-16-S-SC: 2,500 g (5.51 lb)
  • NPort 5610-16: 2,490 g (5.49 lb)
  • NPort 5650-8-S-SC/5650-16-M-SC: 2,440 g (5.38 lb)
  • NPort 5610-8: 2,290 g (5.05 lb)
  • NPort 5650-8-M-SC: 2,380 g (5.25 lb)
  • NPort 5650-8/5650-8-T: 2,310 g (5.09 lb)

Installation

  • 19-inch rack mounting

Interactive Interface

  • LCD panel display (standard temp. models only)
  • Push buttons for configuration (standard temp. models only)

Operating Temperature

  • Standard models: 0 to 60°C (32 to 140°F)
  • Wide temp. models: -40 to 75°C (-40 to 167°F)
  • High-voltage wide temp. models: -40 to 85°C (-40 to 185°F)

Storage Temperature (package included)

  • Standard models: -20 to 70°C (-4 to 158°F)
  • Wide temp. models: -40 to 75°C (-40 to 167°F)
  • High-voltage wide temp. models: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • NPort 5650-8/16 models:
    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2.5 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8
    IEC 61000-4-11
  • NPort 5650-8/16-HV models:
    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8

Safety

  • UL 62368-1

Medical

  • EN 55011: 2007+A2: 2007 Class A (Group 1) compliant
  • EN 60601-1-2: 2007 compliant

Time

  • NPort 5610-8: 903,009 hrs
  • NPort 5610-8-48V: 892,692 hrs
  • NPort 5630-8: 844,009 hrs
  • NPort 5650-8-T: 776,469 hrs
  • NPort 5650-8: 754,927 hrs
  • NPort 5650-8-M-SC/8-S-SC: 738,291 hrs
  • NPort 5650-8-HV-T: 716,168 hrs
  • NPort 5610-16-48V: 693,529 hrs
  • NPort 5610-16: 680,154 hrs
  • NPort 5630-16: 618,263 hrs
  • NPort 5650-16: 525,107 hrs
  • NPort 5650-16-T: 533,046 hrs
  • NPort 5650-16-M-SC/16-S-SC: 517,019 hrs
  • NPort 5650-16-HV-T: 506,093 hrs

Standards

  • HV models: Telcordia (Bellcore) Standard TR/SR
  • All other models: MIL-HDBK-217F

Warranty Period

  • 5 years
