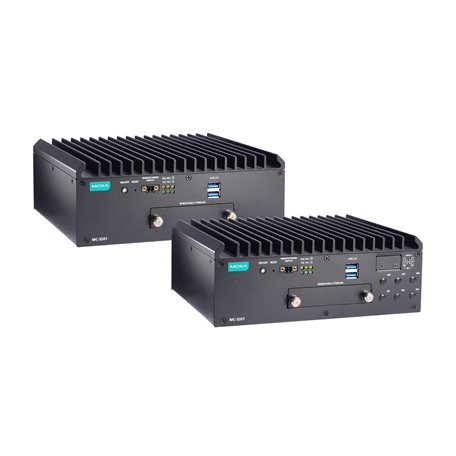

MC-3201 Series

Features and Benefits

  • 11th Gen Intel® Core™ processor (Tiger Lake U)
  • 2 built-in DDR4 memory slots; total capacity up to 32 GB
  • Variety of interfaces: 2 serial ports, 4 Giga LAN ports, 2 USB 3.1 (type A) ports, and 4 USB 2.0 (type A) ports
  • Built-in TPM 2.0 module
  • Complies with DNV, IEC-60945, and IACS E10 standards

Models

  • MC-3201-TGL1-M-S
  • MC-3201-TGL5-S-S
  • MC-3201-TGL7-M-S
  • MC-3201-TGL5-M-S
  • MC-3201-TGL7-S-S
  • MC-3201-TGL1-S-S
  • MC-3201-TGL3-S-S
  • MC-3201-TGL3-M-S

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MC-3201 Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The MC-3201 Series computers are built around a 11th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 2 DisplayPort interfaces, 2 USB 3.1 ports, 4 GbE ports, and 2 3-in-1 RS-232/422/485 serial ports. The computers are also equipped with a 2.5-inch SSD/HDD slot and a built-in TPM 2.0 module.

Compliance with the DNV, IEC-60945, and IACS E10 standards ensures the MC-3201 delivers stable and reliable system operations for marine and IIoT applications. These certifications are issued to indicate the suitability of product for use in marine applications.

Proactive Monitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility available with some Moxa computers to track a number of system parameters. You can view the current values for key parts by simply clicking on the icons corresponding to the parameters in a Windows-based user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relays and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.

The Proactive Monitoring tool is currently available with DA-720 Series, DA-820C Series, MC-1200 Series, MC-3201 Series, and MC-7400 Series.

Specifications

Computer

CPU

  • MC-3201-TGL7-M-S/S-S models: Intel® Core™ i7-1185G7E processor (12M Cache, up to 1.8 GHz)
  • MC-3201-TGL5-M-S/S-S models: Intel® Core™ i5-1145G7E processor (8M Cache, up to 1.5 GHz)
  • MC-3201-TGL3-M-S/S-S models: Intel® Core™ i3-1115G4E processor (6M Cache, up to 2.2 GHz)
  • MC-3201-TGL1-M-S/S-S models: Intel® Celeron® 6305E processor (4M Cache, up to 1.8 GHz)

Graphics Controller

  • Intel® Iris® Xe Graphics

System Memory Pre-installed

  • 8 GB DDR4

System Memory Slot

  • SODIMM DDR4 2133 slots x 2, up to 32 GB max.

Supported OS

  • Windows 10 IoT Enterprise LTSC 2021
  • Driver support:
    Linux Debian 11 (kernel 5.10), 64-bit

Storage Slot

  • 2.5-inch HDD/SSD slots x 1

Ethernet Ports

  • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

Serial Ports

  • RS-232/422/485 ports x 2, software selectable (DB9 male)

Digital Input

  • M-S models: DIs x 4

Digital Output

  • M-S models: DOs x 4

USB 3.0

  • USB 3.0 hosts x 2, type-A connectors

USB 2.0

  • USB 2.0 hosts x 4, type-A connectors

Video Output

  • DisplayPort x 2
  • up to 3840 x 2160 resolution at 60 Hz

Audio Input/Output

  • Line in x 1, Line out x 1, 3.5 mm phone jack

Buttons

  • Reset button
  • Power button

TPM

  • TPM v2.0

Magnetic Isolation Protection

  • 1.5 kV (built-in)

10/100/1000BaseT(X) Ports (RJ45 connector)

  • 4

Baudrate

  • 50 bps to 115.2 kbps

Connector

  • DB9 male

Data Bits

  • 5, 6, 7, 8

Flow Control

  • RTS/CTS, XON/XOFF

Parity

  • None, Even, Odd, Space, Mark

Stop Bits

  • 1, 1.5, 2

ESD Protection

  • 4 kV contact, 8 kV air

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-485-2w

  • Data+, Data-, GND

System

  • Power x 1
  • Storage x 1

Serial

  • 2 per port (Tx, Rx)

LAN

  • 2 per port (10/100/1000 Mbps)

Dimensions

  • 220 x 80 x 170 mm (8.66 x 3.15 x 6.69 in)

Weight

  • 3,000 g (6.61 lb)

Housing

  • Metal

Installation

  • Wall mounting

Input Voltage

  • M-S models: 24 VDC
  • S-S models: 9 to 36 VDC

Operating Temperature

  • -20 to 55°C (-4 to 131°F)

Storage Temperature

  • -30 to 60°C (-22 to 140°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
  • IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
  • IEC 61000-4-6 CS: 3 V
  • IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

Safety

  • UL 62368-1
  • EN 62368-1
  • IEC 62368-1
  • IEC 60950-1

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-64

Maritime

  • MC-3201-TGL3/5/7-M-S: DNV, IEC 60945, IACS E10
  • Other M-S Models: IEC 60945, IACS E10

Green Product

  • RoHS, CRoHS, WEEE

Time

  • 323,270 hrs

Standards

  • Telcordia (Bellcore) Standard TR/SR

Warranty Period

  • 3 years
