MC-1100 Series

Features and Benefits

  • Intel Atom® Quad-core E3845 processor
  •  Dual storage (SD and CFast slots)
  • Dual independent displays (VGA + display port)
  • Variety of interfaces: 2 serial ports, 4 Giga LANs, 4 DIs, 4 DOs, 2 USB 2.0 ports
  • Mini-PCIe sockets for Wi-Fi, 3G, LTE, GPS
  • 12 to 36 VDC, wide-range isolated power input
  • -40 to 70°C system operating temperature range
  • Marine-grade and ATEX, IECEx Zone 2 compliance

Models

  • MC-1121-E4-T-W7E
  • MC-1121-E2-T
  • MC-1122-E2-T
  • MC-1121-E4-T
  • MC-1122-E4-T
  • MC-1111-E2-T
  • MC-1112-E2-T
  • MC-1112-E4-T
  • MC-1111-E4-T
  • MC-1122-E4-TPM-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy MC-1100 Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

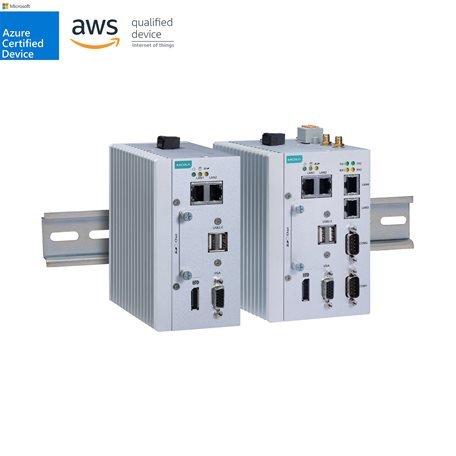

The MC-1100 Series DIN-rail mountable, fanless, x86 embedded computers use the Intel Atom® E3800 Series processor, feature the most reliable I/O design to maximize connectivity, and support wireless modules (Wi-Fi/3G/LTE), making them suitable for a diverse range of communication applications.

The MC-1100’s wide operating temperature range (-40 to 70°C) and safety/EMI/EMS compliances make it ideal for intelligent computing and communication solutions in critical environments, including marine communication, oil and gas field site monitoring, and transportation.

The MC-1100 Series supports the Moxa Proactive Monitoring tool for device I/O status monitoring and alerts, system temperature monitoring and alerts, and system power management. Close monitoring of the system status makes it easier to recover from errors and provides the most reliable platform for your applications.

The MC-1100 Series is Microsoft Azure Certified for IoT. It can leverage the Microsoft reference configuration and has been tested to work with Microsoft Azure IoT services for Industrial IoT applications.

Specifications

Computer

CPU

  • MC-1100-E2-T models: Intel Atom® E3826 processor (1M cache, 1.46 GHz)
  • MC-1100-E4-T models: Intel Atom® E3845 processor (2M cache, 1.91 GHz)

Graphics Controller

  • Intel® HD Graphics

System Memory Pre-installed

  • 4 GB DDR3L

System Memory Slot

  • SODIMM DDR3/DDR3L slots x 1

Supported OS

  • Windows 10 IoT Enterprise LTSC 2021
  • Linux Debian 9 (kernel v4.9)

Storage Slot

  • All models: CFast x 1
  • MC-1111/1121 models: SD x 1

Ethernet Ports

  • MC-1111/1112 models: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • MC-1121/1122 models: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

Serial Ports

  • MC-1121/1112 models: RS-232/422/485 ports x 2, software-selectable (DB9 male)
  • MC-1122 models: RS-232/422/485 ports x 4, software-selectable (DB9 male)

USB 2.0

  • USB 2.0 hosts x 2, type-A connectors

Digital Input

  • MC-1121/1122 models: DIs x 4

Digital Output

  • MC-1121/1122: DOs x 4

Expansion Slots

  • mPCIe slots x 1

TPM

  • TPM v1.2 (MC-1122-E4-TPM-T only)

Video Output

  • MC-1111/1121 models: VGA x 1, DisplayPort x 1
  • All models: VGA x 1, 15-pin D-sub connector (female)

Number of SIMs

  • MC-1121/1122 models: 1

SIM Format

  • [X1]

System

  • Storage x [X1]

LAN

  • 2 per port (10/100/1000 Mbps)

Serial

  • 2 per port (Tx, Rx)

Baudrate

  • 50 bps to 115.2 kbps

Connector

  • DB9 male

Data Bits

  • 5, 6, 7, 8

Flow Control

  • Automatic Data Direction Control (ADDC) for RS-485
  • RTS/CTS, XON/XOFF

Isolation

  • N/A

Parity

  • None, Even, Odd, Space, Mark

Input Voltage

  • 11.4 to 36 VDC

Power Connector

  • Terminal block (for DC models)

Power Consumption

  • 30 W (max.)

Automatic Reboot Trigger

  • Built-in WDT

Housing

  • Metal

Dimensions

  • MC-1111/1112 models: 132 x 122 x 68 mm (5.2 x 4.81 x 2.68 in)
  • MC-1121/1122 models: 132 x 122 x 87 mm (5.2 x 4.81 x 3.43 in)

Weight

  • MC-1111/1112 models: 1,022 g (2.25 lb)
  • MC-1121/1122 models: 1,340 g (2.95 lb)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)

Operating Temperature

  • -40 to 70°C (-40 to 158°F)

Storage Temperature (package included)

  • -45 to 75°C (-49 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Hazardous Locations

  • All models excluding MC-1121-E4-T-US:
    ATEX Zone 2
    IECEx Zone 2
    Class I Division 2

Maritime

  • DNV
  • IEC 60945
  • LR

Radio Frequency

  • FCC

Safety

  • UL 60950-1

Warranty Period

  • 3 years
