DRP-C100

Features and Benefits

  • DIN-rail mountable computers with fanless design
  • Intel® Celeron® or Intel® Core™ i5, or i7 processor
  • Rich interface options for up to 8 serial and 10 LAN ports
  • Compact size to fit most field applications
  • -30 to 60°C operating temperature range
  • DNV, CID2, ATEX, and IECEx certified
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • DRP-C100-C7-T-Win10
  • DRP-C100-C7-T
  • DRP-C100-C7-8L-T
  • DRP-C100-C7-2L4C-T
  • DRP-C100-C5-T-Win10
  • DRP-C100-C1-T
  • DRP-C100-C5-6C-T
  • DRP-C100-C1-T-Win10
  • DRP-C100-C5-2L4C-T
  • DRP-C100-C1-6C-T
  • DRP-C100-C5-8L-T
  • DRP-C100-C1-2L4C-T
  • DRP-C100-C1-8L-T
  • DRP-C100-C5-T
  • DRP-C100-C7-6C-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy DRP-C100 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

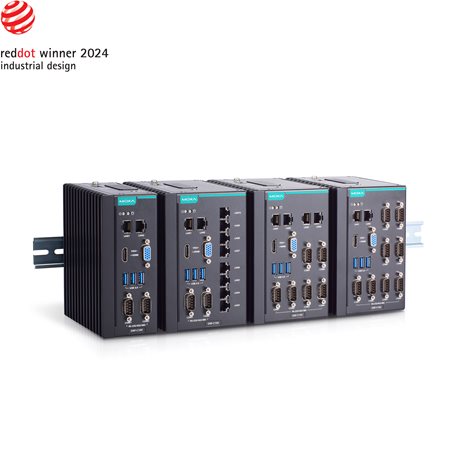

The DRP-C100 Series DIN-rail mountable computers are powered by an Intel® Celeron®, or Intel® Core™ i5 or i7processor. The computers come with a rich set of interface options including up to 8 software-selectable RS-232/422/485 serial ports and up to 10 gigabit Ethernet ports. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. A unique battery-fastener cover secures the battery in place and ensures stability in all operating environments while a trap-door design for the battery slot enables easy battery swapping without having to remove the cover.

The DRP-C100 compact computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The DRP-C100 Series is an intelligent, reliable, durable, and versatile yet user-friendly computing solution that fulfills both OT and IT requirements of industrial environments.

Specifications

Computer

CPU

  • DRP-C100-C1 models:
    Intel® Celeron® 6305E processor (Dual core, 4M cache, 1.80 GHz)
  • DRP-C100-C5 models:
    Intel® Core™ i5-1145G7E processor (Quad core, 8M cache,
    2.60 GHz, Base:1.50 GHz)
  • RP-C100-C7 models:
    Intel® Core™ i7-1185G7E processor (Quad core, 12M cache,
    2.80 GHz, Base:1.80 GHz)

System Memory Slot

  • SODIMM DDR4 slots x 1, up to 32 GB max.

System Memory Pre-installed

  • 8 GB DDR4

Storage Slot

  • CFast slot x 1 (SATAIII interface)
  • SD slots x 1, SD 3.0 interface (SDHC/SDXC)

Storage Pre-installed

  • DRP-C100-C1-T-Win10/C5-T-Win10/C7-T-Win10 models:
    64 GB CFast card

Supported OS

  • Windows images and drivers supported:
    – Windows 11 Professional 64-bit
    – Windows 11 IoT Enterprise LTSC 2024 64-bit
    – Windows 10 IoT Enterprise LTSC 2021 64-bit
  • Linux drivers supported:
    – Debian 12 (kernel 6.1)
    – Debian 11 (kernel 5.10)
    – Ubuntu 22.04 LTS (kernel 5.15)
    – RHEL 9 (kernel 5.14)

Graphics Controller

  • Intel® UHD Graphics

Ethernet Ports

  • DRP-C100-C1-8L-T/C5-8L-T/C7-8L-T:
    Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 10
  • DRP-C100-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T:
    Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
  • All other models:
    Auto–sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

Serial Ports

  • DRP-C100-C1-6C-T/C5-6C-T/C7-6C-T:
    RS-232/422/485 ports x 8, software selectable (DB9 male) x 8
  • DRP-C100-C1-2L4C-T/C5-2L4C-T/C7-2L4C-T:
    RS-232/422/485 ports x 6, software selectable (DB9 male) x 6
  • All other models:
    RS-232/422/485 ports x 2, software selectable (DB9 male) x 2

USB 3.0

  • USB 3.0 hosts x 3, type-A connectors

Video Output

  • HDMI 2.0b x 1, (type A connector)
  • VGA x 1, 15-pin D-sub connector (female)

Buttons

  • Reset button
  • Power button

TPM

  • TPM v2.0

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Baudrate

  • 50 bps to 115.2 kbps

Connector

  • DB9 male

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Parity

  • None, Even, Odd, Space, Mark

Flow Control

  • RTS/CTS, XON/XOFF

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

System

  • Power x 1
  • Storage x 1

LAN

  • 2 per port (10/100/1000 Mbps)

Input Voltage

  • 12/24 VDC

Power Consumption

  • 90 W

Power Connector

  • Screw-fastened Euroblock terminal

Housing

  • Metal

IP Rating

  • IP20

Dimensions

  • DRP-C100-C1-T/C1-T-Win10/DRP-C100-C5-T/C5-T-Win10/DRP-C100-C7-T/-C7-TWin10:
    60 x 130 x 150 mm (2.36 x 5.12 x 5.91 in)
  • All other models:
    94 x 130 x 150 mm (3.70 x 5.12 x 5.91 in)

Weight

  • DRP-C100-C1-T/C1-T-Win10/DRP-C100-C5-T/C5-T-Win10/DRP-C100-C7-T/-C7-TWin10:
    1,213 g (2.67 lb)
  • All other models:
    1.612 g (3.55 lb)

Installation

  • DIN-rail mounting

Green Product

  • RoHS, CRoHS, WEEE

Operating Temperature

  • -30 to 60°C (-22 to 140°F)

Storage Temperature

  • -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A
  • BSMI

EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 6 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: line-to-ground 1 kV, line-to-line 0.5 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: 3 V, Spot Frequency: 10 V
  • IEC 61000-4-8 PFMF: 1 A/m at 50 Hz

Safety

  • UL 62368-1
  • EN 62368-1
  • IEC 62368-1
  • BSMI

Maritime

  • DNV-CG-0339
  • IEC 60945
  • IACS E10

Hazardous Locations

  • ATEX
  • IECEx
  • Class I Division 2

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-64
  • IEC 60068-2-6
  • DNV-CG-0339 Class A
  • IEC 60945

Package Drop Test

  • ISTA 1A

Package Vibration Test

  • ISTA 1A

Environmental Testing

  • IEC 60068-2-1, DNV-CG-0339
  • IEC 60068-2-1, IEC 60945
  • IEC 60068-2-2, DNV-CG-0339
  • IEC 60068-2-2, IEC 60945

Time Source

  • Built-in RTC (real-time clock) with lithium-battery backup

Automatic Reboot Trigger

  • Built-in WDT

Time

  • 1,842,390 hrs

Standards

  • Telcordia (Bellcore), GB

Warranty Period

  • 3 years
