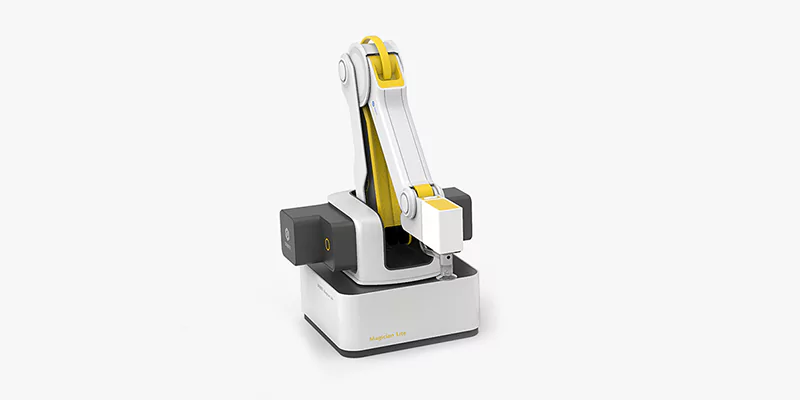

The Magician Lite is a multi-functional lightweight intelligent robotic arm made for K12 education. Students can interact with the Magician Lite using software, hardware and expansion interfaces to maximize their creative freedom. Through the process of buidling and playing, they can learn how AI and robots work. They will also be introduced to the world of robotics and how robots can be applied in the real world.
| Axis 1- Base | -135° to +135° |
| Axis 2- Rear Arm | -5° to +80° |
| Axis 3- Fore Arm | -10° to +85° |
| Axis 4- End Tools | -145° to +145° |
| J1-J3 Max speed | 300°/s |
| J4 Max speed | 200°/s |
| Power Interface | 2 | 4PIN, 12V～3A DC |
| Multi-Functional Communication Interface | 2 | 10PIN, Serial Communication Interface |
| I/O Interface | 6 | Green Terminal, 4PIN, 3.3V/5V-IO, 5V 1A-VCC, Multi-Function Multiplexing Interface, User-Defined I/O, AD, PWM Output, I2C, etc |
| Stepper Motor Interface | 2 | Yellow Terminal, 4PIN, 2-Phase Stepper Motor, 16 Subdivision, 12V 1A |
| 12V Power Interface | 2 | Red Terminal, 2PIN, 12V, 3A Max |
