CR5AS

Features and Benefits

  • 25 kg Robot Weight
  • 5 kg Maximum Payload
  • 900 mm Working Radius
  • 1,096 mm Maximum Reach
  • ±0.02 mm Repeatability
  • IP54 Protection Rating
Download Datasheet Download Datasheet

Models

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy Dobot CR5AS from APulsar Technologies, Dobot Robotics Official Distributor.

Purchase from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

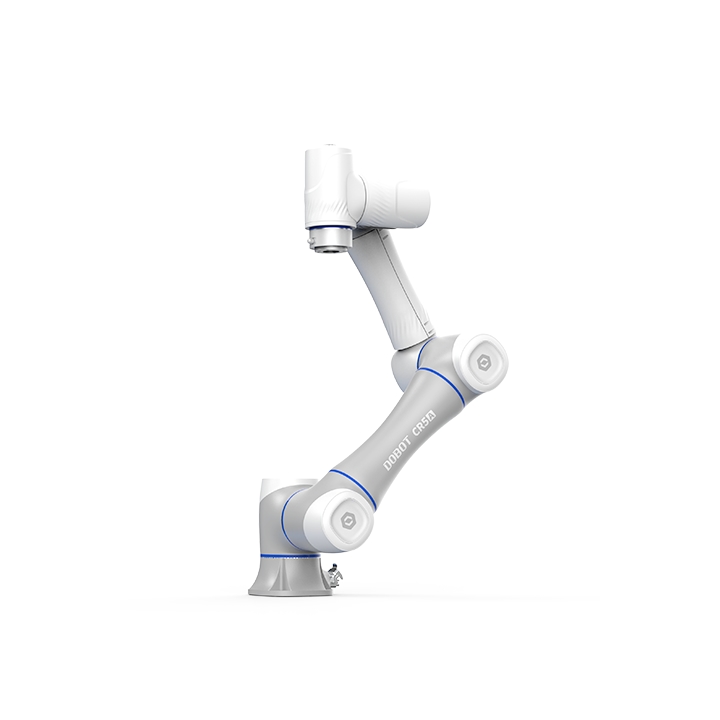

The Dobot CR5AS is a 6-axis high-performance collaborative robot with SafeSkin technology designed for safe, efficient work alongside humans. It builds on the proven CR5 platform and adds Dobot’s SafeSkin, a smart wrap that enhances safety without sacrificing performance. The robot offers ±0.02 mm repeatability, 5 collision detection levels, and an intelligent interaction panel with drag-to-teach control. It supports fast deployment and user-friendly operation, even for new automation users.

What sets the CR5AS apart is its integrated SafeSkin pre-collision detection. It scans surroundings with a 0.01-second sensing cycle. If an object enters the 15 cm zone, the robot quickly evades or performs a full stop in 0.1 seconds. This reduces collision risks and protects people and equipment.

With a 5 kg payload and 900 mm reach, the CR5AS handles common automation tasks. These include loading and unloading, assembly, bin picking, gluing, inspection, screwdriving, and material transportIt’s a solid choice for electronics, medical, automotive, and warehouse applications. Easy to integrate, safe by design, and ready to go.

Specifications

Weight
  • 25 kg
  • 5 kg
  • 900 mm
  • 1096 mm
  • 48V DC
  • 2 m/s
J1 ±360°
J2 ±360°
J3 ±160°
J4 ±360°
J5 ±360°
J6 ±360°
J1/J2/J3 180° /s
J4/J5/J6 223° /s
DI/DO/AI 2
AO 0

Communication

  • RS-485
DI 16
DO/DI 16
AI/AO 2
ABZ Incremental Encoder 1
  • ±0.02 mm
  • TCP/IP
  • Modbus
  • Wi-Fi
  • IP54
  • 0° ~ 50° C
  • 150W
  • Aluminum alloy, ABS plastic
