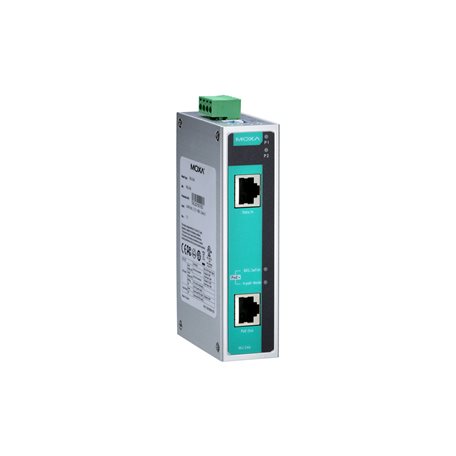

INJ-24A Series

Features and Benefits

  • High-power mode provides up to 60 W
  • DIP switch configurator and LED indicator for PoE management
  • 3 kV surge resistance for harsh environments
  • Mode A and Mode B selectable for flexible installation
  • Built-in 24/48 VDC booster for redundant dual power inputs
  • -40 to 75°C operating temperature range (-T model)
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • INJ-24A-T
  • INJ-24A

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy INJ-24A from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The INJ-24A is a Gigabit high-power PoE+ injector that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for power-hungry devices, the INJ-24A injector provides up to 60 watts, which is twice as much power as conventional PoE+ injectors. The injector also includes features such as a DIP switch configurator and LED indicator for PoE management, and it can also support 24/48 VDC power inputs for power redundancy and operational flexibility. The -40 to 75°C (-40 to 167°F) operating temperature capability makes the INJ-24A ideally suited to operating in harsh industrial environments.

Specifications

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)

  • 1
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection
  • Auto negotiation speed

PoE Ports (10/100/1000BaseT(X), RJ45 connector)

  • 1
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection
  • Auto negotiation speed

PoE Pinout

  • Default: V+, V+, V-, V- for pins 4, 5, 7, 8 (Midspan, MDI, Mode B)
  • Custom DIP switch setting: V+, V+, V-, V- for pins 1, 2, 3, 6 (Endspan, MDI, Mode A)

Standards

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3af/at for PoE/PoE+ output
  • IEEE 802.3u for 100BaseT(X)

Input Voltage

  • 24/48 VDC

Operating Voltage

  • 22 to 57 VDC

Input Current

  • 2.71 A @ 24 VDC

Power Consumption (Max.)

  • Max. 5.29 W full loading without PDs’ consumption

Power Budget

  • Max. 60 W for total PD consumption
  • Max. 60 W for each PoE port

Connection

  • 1 removable 4-contact terminal block(s)

Overload Current Protection

  • Supported

Reverse Polarity Protection

  • Supported

Housing

  • Metal

IP Rating

  • IP30

Dimensions

  • 30 x 115 x 78.8 mm (1.19 x 4.53 x 3.10 in)

Weight

  • 245 g (0.54 lb)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)

Operating Temperature

  • INJ-24A: 0 to 60°C (32 to 140°F)
  • INJ-24A-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Safety

  • UL 508
  • EN 62368-1

EMC

  • EN 55032/24

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 3 kV; Signal: 3 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Freefall

  • IEC 60068-2-31

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-6

Time

  • 2,407,739 hrs

Standards

  • Telcordia (Bellcore), GB

Warranty Period

  • 5 years
