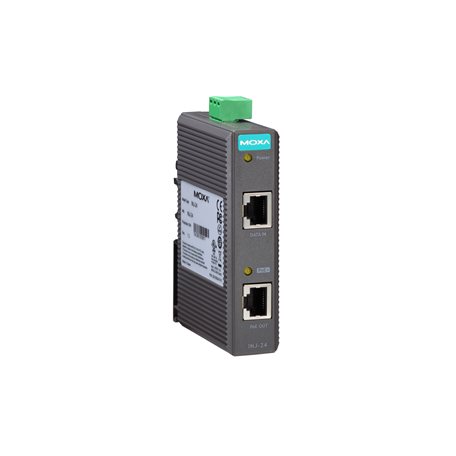

INJ-24 Series

Features and Benefits

  • PoE+ injector for 10/100/1000M networks; injects power and sends data to PDs (power devices)
  • IEEE 802.3af/at compliant; supports a full 30 watt output
  • 24/48 VDC wide range power input
  • -40 to 75°C operating temperature range (-T model)
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • INJ-24-T
  • INJ-2

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy  INJ-24 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The INJ-24 is a Gigabit IEEE 802.3at PoE+ injector that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for use with power-hungry devices, the INJ-24 injector provides PoE of up to 30 watts. The -40 to 75°C (-40 to 167°F) operating temperature capability makes the INJ-24 ideally suited to operating in harsh industrial environments.

Specifications

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)

  • 1
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection
  • Auto negotiation speed

PoE Ports (10/100/1000BaseT(X), RJ45 connector)

  • 1
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection
  • Auto negotiation speed

PoE Pinout

  • V+, V+, V-, V-, for pins 4, 5, 7, 8 (Midspan, MDI, Mode B)

Standards

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3af/at for PoE/PoE+ output

Input Voltage

  • 24/48 VDC

Operating Voltage

  • 22 to 57 VDC

Input Current

  • 1.42 A @ 24 VDC

Power Consumption (Max.)

  • Max. 4.08 W full loading without PDs’ consumption

Power Budget

  • Max. 30 W for total PD consumption
  • Max. 30 W for each PoE port

Connection

  • 1 removable 3-contact terminal block(s)

Overload Current Protection

  • Supported

Reverse Polarity Protection

  • Supported

Housing

  • Plastic

IP Rating

  • IP30

Dimensions

  • 24.9 x 100 x 86.2 mm (0.98 x 3.93 x 3.39 in)

Weight

  • 115 g (0.26 lb)

Installation

  • DIN-rail mounting

Operating Temperature

  • INJ-24: 0 to 60°C (32 to 140°F)
  • INJ-24-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Safety

  • UL 508
  • EN 62368-1

EMC

  • EN 55032/24

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Freefall

  • IEC 60068-2-31

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-6

Time

  • 2,525,278 hrs

Standards

  • Telcordia (Bellcore), GB

Warranty Period

  • 5 years
