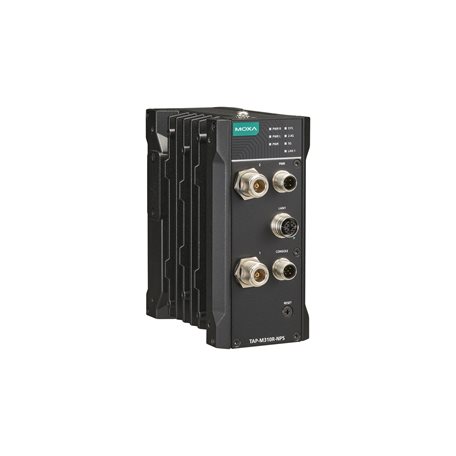

TAP-M310R Series

Features and Benefits

IEEE 802.11a/b/g/n/ac/ax compliant
Selectable dual-band Wi-Fi with data rates of up to 574 Mbps (2.4 GHz) or 1,201 Mbps (5 GHz)
Controller-based Turbo Roaming
Complies with all EN 50155 mandatory test items
Rugged IP67-rated housing and -40 to 75°C operating temperature
Wireless network redundancy with AeroLink Protection

Get Quote Get Quote

Download Datasheet Download Datasheet

Models

TAP-M310R-NPS-1R-EU-CT-T
TAP-M310R-NPS-1R-US-CT-T
TAP-M310R-1P1R1S-EU-CT-T
TAP-M310R-NPS-1P1R-EU-CT-T
TAP-M310R-1P2R1S-US-CT-T
TAP-M310R-1P1R1S-US-CT-T
TAP-M310R-NPS-1P1R-US-CT-T
TAP-M310R-1P2R1S-EU-CT-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy TAP-M310R from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The TAP-M310R Series wireless APs/clients are ruggedized IEEE 802.11ax wireless solutions for railway train-to-ground applications, including CBTC and CCTV communications.

Protected by a dust-tight and waterproof IP67-rated housing, the TAP-M310R Series ensures reliable operations in harsh conditions. The TAP-M310R Series comes in four distinct configurations for onboard and wayside applications, including AC or DC power modules and Ethernet switch modules with support for multiple Ethernet/Turbo Chains for easier deployment. The TAP-M310R Series complies with industrial standards and railway approvals, covering operational temperature ranges, power input voltage, surge protection, ESD, and vibration resistance.

Built for Demanding Environments

IP67-rated metal housing and -40 to 75°C wide operating temperature
Anti-vibration M12 design with waterproof and dust-tight connectors

Tailored for Railway Applications

24 VDC, 110 to 220 VAC, or 24 to 110 VDC power input (depending on the model)
Fiber ports with Moxa Turbo Chain support
Controller-based Turbo Roaming handover time under 50 ms with 3 selected channels (when used with the WAC-M300 only)
Built-in 2.4 and 5 GHz band-pass filters
Built-in 2×2 antenna splitters

Specifications

WLAN Interface

WLAN Standards

2.4 GHz: 802.11b/g/n/ax with 1024 QAM support, 20/40 MHz
5 GHz: 802.11a/n/ac/ax with 1024 QAM support, 20/40/80 MHz

Frequency Band for US (20 MHz operating channels)

2.412 to 2.462 GHz (11 channels)\
5.180 to 5.240 GHz (4 channels)
5,745 to 5,825 GHz (5 channels)

Frequency Band for EU (20 MHz operating channels)

2,412 to 2,472 GHz (13 channels)
5,180 to 5,240 GHz (4 channels)
5,745 to 5,825 GHz (5 channels)

Wireless Security

SSID broadcast enable/disable
WPA2/WPA3 Personal (AES)
WPA2/WPA3 Enterprise (IEEE 802.1X/RADIUS, AES)

Transmission Rate

802.11b: 1 to 11 Mbps
802.11a/g: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps
802.11ac: up to 540 Mbps
802.11ax: 5 GHz up to 1201 Mbps, 2.4 GHz up to 576 Mbps

WLAN Operation Mode

Access point
Master
Sniffer
Client
Client-Router
Slave

Antenna Connectors

TAP-M310R-NPS-1R and -1P1R models: 2 x N-type (female)
TAP-M310R-1P1R1S models: 4 x N-type (female)
TAP-M310R-1P2R1S models: 8 x N-type (female)

Transmitter Power for 802.11a

TAP-M310R-NPS-1R and -1P1R models:
22±1.5 dBm @ 6 Mbps 20 MHz
22±1.5 dBm @ 9 Mbps 20 MHz
22±1.5 dBm @ 12 Mbps 20 MHz
22±1.5 dBm @ 18 Mbps 20 MHz
20±1.5 dBm @ 24 Mbps 20 MHz
19.5±1.5 dBm @ 36 Mbps 20 MHz
19±1.5 dBm @ 48 Mbps 20 MHz
19±1.5 dBm @ 54 Mbps 20 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
18±1.5 dBm @ 6 Mbps 20 MHz
18±1.5 dBm @ 9 Mbps 20 MHz
18±1.5 dBm @ 12 Mbps 20 MHz
18±1.5 dBm @ 18 Mbps 20 MHz
17±1.5 dBm @ 24 Mbps 20 MHz
17±1.5 dBm @ 36 Mbps 20 MHz
16±1.5 dBm @ 48 Mbps 20 MHz
15.5±1.5 dBm @ 54 Mbps 20 MHz

Transmitter Power for 802.11n (5 GHz)

TAP-M310R-NPS-1R and -1P1R models:
22±1.5 dBm @ MCS0 20 MHz
22±1.5 dBm @ MCS1 20 MHz
21.5±1.5 dBm @ MCS2 20 MHz
21.5±1.5 dBm @ MCS3 20 MHz
19.5±1.5 dBm @ MCS4 20 MHz
19±1.5 dBm @ MCS5 20 MHz
19±1.5 dBm @ MCS6 20 MHz
18.5±1.5 dBm @ MCS7 20 MHz
22±1.5 dBm @ MCS8 20 MHz
22±1.5 dBm @ MCS9 20 MHz
21.5±1.5 dBm @ MCS10 20 MHz
21.5±1.5 dBm @ MCS11 20 MHz
20.5±1.5 dBm @ MCS12 20 MHz
19.5±1.5 dBm @ MCS13 20 MHz
19.5±1.5 dBm @ MCS14 20 MHz
19±1.5 dBm @ MCS15 20 MHz
22±1.5 dBm @ MCS0 40 MHz
22±1.5 dBm @ MCS1 40 MHz
22±1.5 dBm @ MCS2 40 MHz
21.5±1.5 dBm @ MCS3 40 MHz
21±1.5 dBm @ MCS4 40 MHz
20±1.5 dBm @ MCS5 40 MHz
20±1.5 dBm @ MCS6 40 MHz
19.5±1.5 dBm @ MCS7 40 MHz
22±1.5 dBm @ MCS8 40 MHz
22±1.5 dBm @ MCS9 40 MHz
21.5±1.5 dBm @ MCS10 40 MHz
21.5±1.5 dBm @ MCS11 40 MHz
20±1.5 dBm @ MCS12 40 MHz
20±1.5 dBm @ MCS13 40 MHz
20±1.5 dBm @ MCS14 40 MHz
20±1.5 dBm @ MCS15 40 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
18.5±1.5 dBm @ MCS0 20 MHz
18.5±1.5 dBm @ MCS1 20 MHz
18.5±1.5 dBm @ MCS2 20 MHz
18±1.5 dBm @ MCS3 20 MHz
17±1.5 dBm @ MCS4 20 MHz
16.5±1.5 dBm @ MCS5 20 MHz
16±1.5 dBm @ MCS6 20 MHz
15.5±1.5 dBm @ MCS7 20 MHz
18.5±1.5 dBm @ MCS8 20 MHz
18.5±1.5 dBm @ MCS9 20 MHz
18.5±1.5 dBm @ MCS10 20 MHz
18±1.5 dBm @ MCS11 20 MHz
17±1.5 dBm @ MCS12 20 MHz
16.5±1.5 dBm @ MCS13 20 MHz
15.5±1.5 dBm @ MCS14 20 MHz
15.5±1.5 dBm @ MCS15 20 MHz
18.5±1.5 dBm @ MCS0 40 MHz
18.5±1.5 dBm @ MCS1 40 MHz
18.5±1.5 dBm @ MCS2 40 MHz
17.5±1.5 dBm @ MCS3 40 MHz
17.5±1.5 dBm @ MCS4 40 MHz
16.5±1.5 dBm @ MCS5 40 MHz
15.5±1.5 dBm @ MCS6 40 MHz
15±1.5 dBm @ MCS7 40 MHz
18±1.5 dBm @ MCS8 40 MHz
18±1.5 dBm @ MCS9 40 MHz
17.5±1.5 dBm @ MCS10 40 MHz
17±1.5 dBm @ MCS11 40 MHz
17±1.5 dBm @ MCS12 40 MHz
16.5±1.5 dBm @ MCS13 40 MHz
15.5±1.5 dBm @ MCS14 40 MHz
15±1.5 dBm @ MCS15 40 MHz

Transmitter Power for 802.11ac (5 GHz, Dual Chain)

TAP-M310R-NPS-1R and -1P1R models:
22±1.5 dBm @ MCS0 20 MHz
22±1.5 dBm @ MCS1 20 MHz
21.5±1.5 dBm @ MCS2 20 MHz
21.5±1.5 dBm @ MCS3 20 MHz
20.5±1.5 dBm @ MCS4 20 MHz
20±1.5 dBm @ MCS5 20 MHz
19.5±1.5 dBm @ MCS6 20 MHz
19.5±1.5 dBm @ MCS7 20 MHz
19±1.5 dBm @ MCS8 20 MHz
21.5±1.5 dBm @ MCS0 40 MHz
21.5±1.5 dBm @ MCS1 40 MHz
21±1.5 dBm @ MCS2 40 MHz
20.5±1.5 dBm @ MCS3 40 MHz
20±1.5 dBm @ MCS4 40 MHz
19.5±1.5 dBm @ MCS5 40 MHz
19.5±1.5 dBm @ MCS6 40 MHz
19.5±1.5 dBm @ MCS7 40 MHz
19±1.5 dBm @ MCS8 40 MHz
18.5±1.5 dBm @ MCS9 40 MHz
21±1.5 dBm @ MCS0 80 MHz
21±1.5 dBm @ MCS1 80 MHz
21±1.5 dBm @ MCS2 80 MHz
21±1.5 dBm @ MCS3 80 MHz
20±1.5 dBm @ MCS4 80 MHz
20±1.5 dBm @ MCS5 80 MHz
19±1.5 dBm @ MCS6 80 MHz
19±1.5 dBm @ MCS7 80 MHz
18.5±1.5 dBm @ MCS8 80 MHz
18.5±1.5 dBm @ MCS9 80 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS1 20 MHz
18±1.5 dBm @ MCS2 20 MHz
18±1.5 dBm @ MCS3 20 MHz
17±1.5 dBm @ MCS4 20 MHz
17±1.5 dBm @ MCS5 20 MHz
15.5±1.5 dBm @ MCS6 20 MHz
15±1.5 dBm @ MCS7 20 MHz
14.5±1.5 dBm @ MCS8 20 MHz
18±1.5 dBm @ MCS0 40 MHz
18±1.5 dBm @ MCS1 40 MHz
18±1.5 dBm @ MCS2 40 MHz
18±1.5 dBm @ MCS3 40 MHz
17±1.5 dBm @ MCS4 40 MHz
17±1.5 dBm @ MCS5 40 MHz
15±1.5 dBm @ MCS6 40 MHz
15.5±1.5 dBm @ MCS7 40 MHz
15±1.5 dBm @ MCS8 40 MHz
14.5±1.5 dBm @ MCS9 40 MHz
18±1.5 dBm @ MCS0 80 MHz
18±1.5 dBm @ MCS1 80 MHz
18±1.5 dBm @ MCS2 80 MHz
18±1.5 dBm @ MCS3 80 MHz
17±1.5 dBm @ MCS4 80 MHz
17±1.5 dBm @ MCS5 80 MHz
15.5±1.5 dBm @ MCS6 80 MHz
15±1.5 dBm @ MCS7 80 MHz
14.5±1.5 dBm @ MCS8 80 MHz
14.5±1.5 dBm @ MCS9 80 MHz

Transmitter Power for 802.11ax (5 GHz, Dual Chain)

TAP-M310R-NPS-1R and -1P1R models:
22±1.5 dBm @ MCS0 20 MHz
22±1.5 dBm @ MCS1 20 MHz
21±1.5 dBm @ MCS2 20 MHz
21±1.5 dBm @ MCS3 20 MHz
19±1.5 dBm @ MCS4 20 MHz
19±1.5 dBm @ MCS5 20 MHz
19±1.5 dBm @ MCS6 20 MHz
19±1.5 dBm @ MCS7 20 MHz
19±1.5 dBm @ MCS8 20 MHz
18.5±1.5 dBm @ MCS9 20 MHz
18±1.5 dBm @ MCS10 20 MHz
17.5±1.5 dBm @ MCS11 20 MHz
21.5±1.5 dBm @ MCS0 40 MHz
21.5±1.5 dBm @ MCS1 40 MHz
21±1.5 dBm @ MCS2 40 MHz
21±1.5 dBm @ MCS3 40 MHz
20±1.5 dBm @ MCS4 40 MHz
20±1.5 dBm @ MCS5 40 MHz
19±1.5 dBm @ MCS6 40 MHz
19±1.5 dBm @ MCS7 40 MHz
19±1.5 dBm @ MCS8 40 MHz
18.5±1.5 dBm @ MCS9 40 MHz
18±1.5 dBm @ MCS10 40 MHz
17.5±1.5 dBm @ MCS11 40 MHz
21±1.5 dBm @ MCS0 80 MHz
21±1.5 dBm @ MCS1 80 MHz
21±1.5 dBm @ MCS2 80 MHz
21±1.5 dBm @ MCS3 80 MHz
20±1.5 dBm @ MCS4 80 MHz
20±1.5 dBm @ MCS5 80 MHz
18.5±1.5 dBm @ MCS6 80 MHz
18.5±1.5 dBm @ MCS7 80 MHz
18.5±1.5 dBm @ MCS8 80 MHz
18±1.5 dBm @ MCS9 80 MHz
18±1.5 dBm @ MCS10 80 MHz
17.5±1.5 dBm @ MCS11 80 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
18±1.5 dBm @ MCS0 20 MHz
18±1.5 dBm @ MCS1 20 MHz
18±1.5 dBm @ MCS2 20 MHz
18±1.5 dBm @ MCS3 20 MHz
17±1.5 dBm @ MCS4 20 MHz
17±1.5 dBm @ MCS5 20 MHz
15.5±1.5 dBm @ MCS6 20 MHz
15±1.5 dBm @ MCS7 20 MHz
14.5±1.5 dBm @ MCS8 20 MHz
14±1.5 dBm @ MCS9 20 MHz
13.5±1.5 dBm @ MCS10 20 MHz
13.5±1.5 dBm @ MCS11 20 MHz
18±1.5 dBm @ MCS0 40 MHz
18±1.5 dBm @ MCS1 40 MHz
17.5±1.5 dBm @ MCS2 40 MHz
17.5±1.5 dBm @ MCS3 40 MHz
16.5±1.5 dBm @ MCS4 40 MHz
16.5±1.5 dBm @ MCS5 40 MHz
16±1.5 dBm @ MCS6 40 MHz
15.5±1.5 dBm @ MCS7 40 MHz
14±1.5 dBm @ MCS8 40 MHz
14±1.5 dBm @ MCS9 40 MHz
13.5±1.5 dBm @ MCS10 40 MHz
13.5±1.5 dBm @ MCS11 40 MHz
18±1.5 dBm @ MCS0 80 MHz
18±1.5 dBm @ MCS1 80 MHz
17.5±1.5 dBm @ MCS2 80 MHz
17.5±1.5 dBm @ MCS3 80 MHz
16.5±1.5 dBm @ MCS4 80 MHz
16.5±1.5 dBm @ MCS5 80 MHz
15.5±1.5 dBm @ MCS6 80 MHz
15.5±1.5 dBm @ MCS7 80 MHz
14.5±1.5 dBm @ MCS8 80 MHz
14±1.5 dBm @ MCS9 80 MHz
13.5±1.5 dBm @ MCS10 80 MHz
13.5±1.5 dBm @ MCS11 80 MHz

Transmitter Power for 802.11b

TAP-M310R-NPS-1R and -1P1R models:
27±1.5 dBm @ 1 Mbps
27±1.5 dBm @ 2 Mbps
27±1.5 dBm @ 5.5 Mbps
27±1.5 dBm @ 11 Mbps
TAP-M310R-1P1R1S and -1P2R1S models:
23.5±1.5 dBm @ 1 Mbps
23.5±1.5 dBm @ 2 Mbps
23.5±1.5 dBm @ 5.5 Mbps
23.5±1.5 dBm @ 11 Mbps

Transmitter Power for 802.11g

TAP-M310R-NPS-1R and -1P1R models:
26.5±1.5 dBm @ 6 Mbps
26.5±1.5 dBm @ 9 Mbps
26.5±1.5 dBm @ 12 Mbps
25±1.5 dBm @ 18 Mbps
25±1.5 dBm @ 24 Mbps
25±1.5 dBm @ 36 Mbps
24.5±1.5 dBm @ 48 Mbps
23.5±1.5 dBm @ 54 Mbps
TAP-M310R-1P1R1S and -1P2R1S models:
23±1.5 dBm @ 6 Mbps
23±1.5 dBm @ 9 Mbps
23±1.5 dBm @ 12 Mbps
22±1.5 dBm @ 18 Mbps
22±1.5 dBm @ 24 Mbps
22±1.5 dBm @ 36 Mbps
21.5±1.5 dBm @ 48 Mbps
20.5±1.5 dBm @ 54 Mbps

Transmitter Power for 802.11n (2.4 GHz)

TAP-M310R-NPS-1R and -1P1R models:
26.5±1.5 dBm @ MCS0 20 MHz
26.5±1.5 dBm @ MCS1 20 MHz
25±1.5 dBm @ MCS2 20 MHz
25±1.5 dBm @ MCS3 20 MHz
25±1.5 dBm @ MCS4 20 MHz
24.5±1.5 dBm @ MCS5 20 MHz
23.5±1.5 dBm @ MCS6 20 MHz
23±1.5 dBm @ MCS7 20 MHz
25.5±1.5 dBm @ MCS8 20 MHz
25.5±1.5 dBm @ MCS9 20 MHz
24±1.5 dBm @ MCS10 20 MHz
24±1.5 dBm @ MCS11 20 MHz
24±1.5 dBm @ MCS12 20 MHz
24±1.5 dBm @ MCS13 20 MHz
22.5±1.5 dBm @ MCS14 20 MHz
22±1.5 dBm @ MCS15 20 MHz
26±1.5 dBm @ MCS0 40 MHz
26±1.5 dBm @ MCS1 40 MHz
25.5±1.5 dBm @ MCS2 40 MHz
25±1.5 dBm @ MCS3 40 MHz
24.5±1.5 dBm @ MCS4 40 MHz
24±1.5 dBm @ MCS5 40 MHz
23±1.5 dBm @ MCS6 40 MHz
22.5±1.5 dBm @ MCS7 40 MHz
24±1.5 dBm @ MCS8 40 MHz
24±1.5 dBm @ MCS9 40 MHz
23.5±1.5 dBm @ MCS10 40 MHz
23.5±1.5 dBm @ MCS11 40 MHz
22±1.5 dBm @ MCS12 40 MHz
22±1.5 dBm @ MCS13 40 MHz
21.5±1.5 dBm @ MCS14 40 MHz
21.5±1.5 dBm @ MCS15 40 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
23±1.5 dBm @ MCS0 20 MHz
23±1.5 dBm @ MCS1 20 MHz
22±1.5 dBm @ MCS2 20 MHz
22±1.5 dBm @ MCS3 20 MHz
21.5±1.5 dBm @ MCS4 20 MHz
21±1.5 dBm @ MCS5 20 MHz
20.5±1.5 dBm @ MCS6 20 MHz
19.5±1.5 dBm @ MCS7 20 MHz
23±1.5 dBm @ MCS8 20 MHz
23±1.5 dBm @ MCS9 20 MHz
21±1.5 dBm @ MCS10 20 MHz
21±1.5 dBm @ MCS11 20 MHz
21±1.5 dBm @ MCS12 20 MHz
21±1.5 dBm @ MCS13 20 MHz
20±1.5 dBm @ MCS14 20 MHz
19±1.5 dBm @ MCS15 20 MHz
22.5±1.5 dBm @ MCS0 40 MHz
22.5±1.5 dBm @ MCS1 40 MHz
22.5±1.5 dBm @ MCS2 40 MHz
21.5±1.5 dBm @ MCS3 40 MHz
21±1.5 dBm @ MCS4 40 MHz
20.5±1.5 dBm @ MCS5 40 MHz
20±1.5 dBm @ MCS6 40 MHz
19.5±1.5 dBm @ MCS7 40 MHz
22±1.5 dBm @ MCS8 40 MHz
22±1.5 dBm @ MCS9 40 MHz
21±1.5 dBm @ MCS10 40 MHz
20±1.5 dBm @ MCS11 40 MHz
19±1.5 dBm @ MCS12 40 MHz
19±1.5 dBm @ MCS13 40 MHz
18.5±1.5 dBm @ MCS14 40 MHz
19±1.5 dBm @ MCS15 40 MHz

Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)

TAP-M310R-NPS-1R and -1P1R models:
26±1.5 dBm @ MCS0 20 MHz
26±1.5 dBm @ MCS1 20 MHz
24.5±1.5 dBm @ MCS2 20 MHz
24.5±1.5 dBm @ MCS3 20 MHz
24.5±1.5 dBm @ MCS4 20 MHz
24±1.5 dBm @ MCS5 20 MHz
23±1.5 dBm @ MCS6 20 MHz
22.5±1.5 dBm @ MCS7 20 MHz
22.5±1.5 dBm @ MCS8 20 MHz
25±1.5 dBm @ MCS0 40 MHz
25±1.5 dBm @ MCS1 40 MHz
24±1.5 dBm @ MCS2 40 MHz
24±1.5 dBm @ MCS3 40 MHz
22.5±1.5 dBm @ MCS4 40 MHz
22.5±1.5 dBm @ MCS5 40 MHz
22.5±1.5 dBm @ MCS6 40 MHz
22.5±1.5 dBm @ MCS7 40 MHz
22.5±1.5 dBm @ MCS8 40 MHz
22±1.5 dBm @ MCS9 40 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
22.5±1.5 dBm @ MCS0 20 MHz
22.5±1.5 dBm @ MCS1 20 MHz
22±1.5 dBm @ MCS2 20 MHz
21.5±1.5 dBm @ MCS3 20 MHz
21.5±1.5 dBm @ MCS4 20 MHz
21±1.5 dBm @ MCS5 20 MHz
20±1.5 dBm @ MCS6 20 MHz
19.5±1.5 dBm @ MCS7 20 MHz
19.5±1.5 dBm @ MCS8 20 MHz
22±1.5 dBm @ MCS0 40 MHz
22±1.5 dBm @ MCS1 40 MHz
22±1.5 dBm @ MCS2 40 MHz
21±1.5 dBm @ MCS3 40 MHz
21±1.5 dBm @ MCS4 40 MHz
20±1.5 dBm @ MCS5 40 MHz
19.5±1.5 dBm @ MCS6 40 MHz
19.5±1.5 dBm @ MCS7 40 MHz
19±1.5 dBm @ MCS8 40 MHz
18.5±1.5 dBm @ MCS9 40 MHz

Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)

TAP-M310R-NPS-1R and -1P1R models:
26.5±1.5 dBm @ MCS0 20 MHz
26.5±1.5 dBm @ MCS1 20 MHz
24.5±1.5 dBm @ MCS2 20 MHz
24.5±1.5 dBm @ MCS3 20 MHz
24±1.5 dBm @ MCS4 20 MHz
24±1.5 dBm @ MCS5 20 MHz
23.5±1.5 dBm @ MCS6 20 MHz
23.5±1.5 dBm @ MCS7 20 MHz
22.5±1.5 dBm @ MCS8 20 MHz
22±1.5 dBm @ MCS9 20 MHz
21.5±1.5 dBm @ MCS10 20 MHz
21.5±1.5 dBm @ MCS11 20 MHz
25±1.5 dBm @ MCS0 40 MHz
25±1.5 dBm @ MCS1 40 MHz
24±1.5 dBm @ MCS2 40 MHz
24±1.5 dBm @ MCS3 40 MHz
24±1.5 dBm @ MCS4 40 MHz
22±1.5 dBm @ MCS5 40 MHz
22±1.5 dBm @ MCS6 40 MHz
22±1.5 dBm @ MCS7 40 MHz
22±1.5 dBm @ MCS8 40 MHz
22±1.5 dBm @ MCS9 40 MHz
21.5±1.5 dBm @ MCS10 40 MHz
21.5±1.5 dBm @ MCS11 40 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
22.5±1.5 dBm @ MCS0 20 MHz
22.5±1.5 dBm @ MCS1 20 MHz
21±1.5 dBm @ MCS2 20 MHz
21±1.5 dBm @ MCS3 20 MHz
21±1.5 dBm @ MCS4 20 MHz
20.5±1.5 dBm @ MCS5 20 MHz
20±1.5 dBm @ MCS6 20 MHz
19.5±1.5 dBm @ MCS7 20 MHz
19±1.5 dBm @ MCS8 20 MHz
19±1.5 dBm @ MCS9 20 MHz
18.5±1.5 dBm @ MCS10 20 MHz
18.5±1.5 dBm @ MCS11 20 MHz
22±1.5 dBm @ MCS0 40 MHz
22±1.5 dBm @ MCS1 40 MHz
21±1.5 dBm @ MCS2 40 MHz
21±1.5 dBm @ MCS3 40 MHz
21±1.5 dBm @ MCS4 40 MHz
20.5±1.5 dBm @ MCS5 40 MHz
19.5±1.5 dBm @ MCS6 40 MHz
19.5±1.5 dBm @ MCS7 40 MHz
19±1.5 dBm @ MCS8 40 MHz
18.5±1.5 dBm @ MCS9 40 MHz
18±1.5 dBm @ MCS10 40 MHz
18±1.5 dBm @ MCS11 40 MHz

Receiver Sensitivity for 802.11a

TAP-M310R-NPS-1R and -1P1R models:
Typ. -89 @ 6 Mbps
Typ. -87 @ 9 Mbps
Typ. -86 @ 12 Mbps
Typ. -84 @ 18 Mbps
Typ. -81 @ 24 Mbps
Typ. -78 @ 36 Mbps
Typ. -73 @ 48 Mbps
Typ. -72 @ 54 Mbps
TAP-M310R-1P1R1S and -1P2R1S models:
Typ. -86 @ 6 Mbps
Typ. -84 @ 9 Mbps
Typ. -83 @ 12 Mbps
Typ. -80 @ 18 Mbps
Typ. -77 @ 24 Mbps
Typ. -74 @ 36 Mbps
Typ. -70 @ 48 Mbps
Typ. -68 @ 54 Mbps

Receiver Sensitivity for 802.11n (5 GHz)

TAP-M310R-NPS-1R and -1P1R models:
Typ. -89 dBm @ MCS0 20 MHz
Typ. -86 dBm @ MCS1 20 MHz
Typ. -83 dBm @ MCS2 20 MHz
Typ. -80 dBm @ MCS3 20 MHz
Typ. -76 dBm @ MCS4 20 MHz
Typ. -72 dBm @ MCS5 20 MHz
Typ. -70 dBm @ MCS6 20 MHz
Typ. -69 dBm @ MCS7 20 MHz
Typ. -89 dBm @ MCS8 20 MHz
Typ. -86 dBm @ MCS9 20 MHz
Typ. -84 dBm @ MCS10 20 MHz
Typ. -81 dBm @ MCS11 20 MHz
Typ. -78 dBm @ MCS12 20 MHz
Typ. -74 dBm @ MCS13 20 MHz
Typ. -72 dBm @ MCS14 20 MHz
Typ. -70 dBm @ MCS15 20 MHz
Typ. -86 dBm @ MCS0 40 MHz
Typ. -83 dBm @ MCS1 40 MHz
Typ. -80 dBm @ MCS2 40 MHz
Typ. -77 dBm @ MCS3 40 MHz
Typ. -74 dBm @ MCS4 40 MHz
Typ. -69 dBm @ MCS5 40 MHz
Typ. -68 dBm @ MCS6 40 MHz
Typ. -66 dBm @ MCS7 40 MHz
Typ. -87 dBm @ MCS8 40 MHz
Typ. -83 dBm @ MCS9 40 MHz
Typ. -81 dBm @ MCS10 40 MHz
Typ. -78 dBm @ MCS11 40 MHz
Typ. -75 dBm @ MCS12 40 MHz
Typ. -71 dBm @ MCS13 40 MHz
Typ. -70 dBm @ MCS14 40 MHz
Typ. -68 dBm @ MCS15 40 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
Typ. -85 dBm @ MCS0 20 MHz
Typ. -82 dBm @ MCS1 20 MHz
Typ. -80 dBm @ MCS2 20 MHz
Typ. -76 dBm @ MCS3 20 MHz
Typ. -73 dBm @ MCS4 20 MHz
Typ. -68 dBm @ MCS5 20 MHz
Typ. -67 dBm @ MCS6 20 MHz
Typ. -65 dBm @ MCS7 20 MHz
Typ. -86 dBm @ MCS8 20 MHz
Typ. -83 dBm @ MCS9 20 MHz
Typ. -81 dBm @ MCS10 20 MHz
Typ. -78 dBm @ MCS11 20 MHz
Typ. -75 dBm @ MCS12 20 MHz
Typ. -71 dBm @ MCS13 20 MHz
Typ. -69 dBm @ MCS14 20 MHz
Typ. -66 dBm @ MCS15 20 MHz
Typ. -83 dBm @ MCS0 40 MHz
Typ. -79 dBm @ MCS1 40 MHz
Typ. -77 dBm @ MCS2 40 MHz
Typ. -74 dBm @ MCS3 40 MHz
Typ. -70 dBm @ MCS4 40 MHz
Typ. -66 dBm @ MCS5 40 MHz
Typ. -65 dBm @ MCS6 40 MHz
Typ. -63 dBm @ MCS7 40 MHz
Typ. -84 dBm @ MCS8 40 MHz
Typ. -80 dBm @ MCS9 40 MHz
Typ. -78 dBm @ MCS10 40 MHz
Typ. -74 dBm @ MCS11 40 MHz
Typ. -72 dBm @ MCS12 40 MHz
Typ. -68 dBm @ MCS13 40 MHz
Typ. -67 dBm @ MCS14 40 MHz
Typ. -65 dBm @ MCS15 40 MHz

Receiver Sensitivity for 802.11ac (5 GHz)

TAP-M310R-NPS-1R and -1P1R models:
Typ. -89 dBm @ MCS0 20 MHz
Typ. -86 dBm @ MCS1 20 MHz
Typ. -83 dBm @ MCS2 20 MHz
Typ. -80 dBm @ MCS3 20 MHz
Typ. -78 dBm @ MCS4 20 MHz
Typ. -73 dBm @ MCS5 20 MHz
Typ. -72 dBm @ MCS6 20 MHz
Typ. -70 dBm @ MCS7 20 MHz
Typ. -66 dBm @ MCS8 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -83 dBm @ MCS1 40 MHz
Typ. -81 dBm @ MCS2 40 MHz
Typ. -78 dBm @ MCS3 40 MHz
Typ. -75 dBm @ MCS4 40 MHz
Typ. -71 dBm @ MCS5 40 MHz
Typ. -70 dBm @ MCS6 40 MHz
Typ. -68 dBm @ MCS7 40 MHz
Typ. -64 dBm @ MCS8 40 MHz
Typ. -62 dBm @ MCS9 40 MHz
Typ. -84 dBm @ MCS0 80 MHz
Typ. -81 dBm @ MCS1 80 MHz
Typ. -78 dBm @ MCS2 80 MHz
Typ. -75 dBm @ MCS3 80 MHz
Typ. -72 dBm @ MCS4 80 MHz
Typ. -68 dBm @ MCS5 80 MHz
Typ. -66 dBm @ MCS6 80 MHz
Typ. -64 dBm @ MCS7 80 MHz
Typ. -61 dBm @ MCS8 80 MHz
Typ. -59 dBm @ MCS9 80 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
Typ. -86 dBm @ MCS0 20 MHz
Typ. -82 dBm @ MCS1 20 MHz
Typ. -80 dBm @ MCS2 20 MHz
Typ. -77 dBm @ MCS3 20 MHz
Typ. -74 dBm @ MCS4 20 MHz
Typ. -70 dBm @ MCS5 20 MHz
Typ. -68 dBm @ MCS6 20 MHz
Typ. -67 dBm @ MCS7 20 MHz
Typ. -63 dBm @ MCS8 20 MHz
Typ. -83 dBm @ MCS0 40 MHz
Typ. -80 dBm @ MCS1 40 MHz
Typ. -78 dBm @ MCS2 40 MHz
Typ. -74 dBm @ MCS3 40 MHz
Typ. -72 dBm @ MCS4 40 MHz
Typ. -68 dBm @ MCS5 40 MHz
Typ. -66 dBm @ MCS6 40 MHz
Typ. -65 dBm @ MCS7 40 MHz
Typ. -61 dBm @ MCS8 40 MHz
Typ. -59 dBm @ MCS9 40 MHz
Typ. -81 dBm @ MCS0 80 MHz
Typ. -77 dBm @ MCS1 80 MHz
Typ. -75 dBm @ MCS2 80 MHz
Typ. -71 dBm @ MCS3 80 MHz
Typ. -68 dBm @ MCS4 80 MHz
Typ. -65 dBm @ MCS5 80 MHz
Typ. -63 dBm @ MCS6 80 MHz
Typ. -61 dBm @ MCS7 80 MHz
Typ. -57 dBm @ MCS8 80 MHz
Typ. -56 dBm @ MCS9 80 MHz

Receiver Sensitivity for 802.11ax (5 GHz

TAP-M310R-NPS-1R and -1P1R models:
Typ. -89 dBm @ MCS0 20 MHz
Typ. -86 dBm @ MCS1 20 MHz
Typ. -84 dBm @ MCS2 20 MHz
Typ. -81 dBm @ MCS3 20 MHz
Typ. -78 dBm @ MCS4 20 MHz
Typ. -73 dBm @ MCS5 20 MHz
Typ. -72 dBm @ MCS6 20 MHz
Typ. -70 dBm @ MCS7 20 MHz
Typ. -66 dBm @ MCS8 20 MHz
Typ. -65 dBm @ MCS9 20 MHz
Typ. -61 dBm @ MCS10 20 MHz
Typ. -59 dBm @ MCS11 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -84 dBm @ MCS1 40 MHz
Typ. -82 dBm @ MCS2 40 MHz
Typ. -78 dBm @ MCS3 40 MHz
Typ. -75 dBm @ MCS4 40 MHz
Typ. -71 dBm @ MCS5 40 MHz
Typ. -70 dBm @ MCS6 40 MHz
Typ. -68 dBm @ MCS7 40 MHz
Typ. -65 dBm @ MCS8 40 MHz
Typ. -63 dBm @ MCS9 40 MHz
Typ. -59 dBm @ MCS10 40 MHz
Typ. -57 dBm @ MCS11 40 MHz
Typ. -84 dBm @ MCS0 80 MHz
Typ. -81 dBm @ MCS1 80 MHz
Typ. -78 dBm @ MCS2 80 MHz
Typ. -76 dBm @ MCS3 80 MHz
Typ. -72 dBm @ MCS4 80 MHz
Typ. -68 dBm @ MCS5 80 MHz
Typ. -67 dBm @ MCS6 80 MHz
Typ. -65 dBm @ MCS7 80 MHz
Typ. -61 dBm @ MCS8 80 MHz
Typ. -59 dBm @ MCS9 80 MHz
Typ. -55 dBm @ MCS10 80 MHz
Typ. -53 dBm @ MCS11 80 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
Typ. -87 dBm @ MCS0 20 MHz
Typ. -83 dBm @ MCS1 20 MHz
Typ. -81 dBm @ MCS2 20 MHz
Typ. -78 dBm @ MCS3 20 MHz
Typ. -75 dBm @ MCS4 20 MHz
Typ. -71 dBm @ MCS5 20 MHz
Typ. -69 dBm @ MCS6 20 MHz
Typ. -67 dBm @ MCS7 20 MHz
Typ. -64 dBm @ MCS8 20 MHz
Typ. -62 dBm @ MCS9 20 MHz
Typ. -58 dBm @ MCS10 20 MHz
Typ. -56 dBm @ MCS11 20 MHz
Typ. -84 dBm @ MCS0 40 MHz
Typ. -81 dBm @ MCS1 40 MHz
Typ. -79 dBm @ MCS2 40 MHz
Typ. -76 dBm @ MCS3 40 MHz
Typ. -72 dBm @ MCS4 40 MHz
Typ. -63 dBm @ MCS5 40 MHz
Typ. -67 dBm @ MCS6 40 MHz
Typ. -65 dBm @ MCS7 40 MHz
Typ. -62 dBm @ MCS8 40 MHz
Typ. -60 dBm @ MCS9 40 MHz
Typ. -56 dBm @ MCS10 40 MHz
Typ. -54 dBm @ MCS11 40 MHz
Typ. -81 dBm @ MCS0 80 MHz
Typ. -78 dBm @ MCS1 80 MHz
Typ. -75 dBm @ MCS2 80 MHz
Typ. -72 dBm @ MCS3 80 MHz
Typ. -69 dBm @ MCS4 80 MHz
Typ. -65 dBm @ MCS5 80 MHz
Typ. -64 dBm @ MCS6 80 MHz
Typ. -62 dBm @ MCS7 80 MHz
Typ. -58 dBm @ MCS8 80 MHz
Typ. -56 dBm @ MCS9 80 MHz
Typ. -52 dBm @ MCS10 80 MHz
Typ. -50 dBm @ MCS11 80 MHz

Receiver Sensitivity for 802.11b

TAP-M310R-NPS-1R and -1P1R models:
Typ. -94 dBm @ 1 Mbps
Typ. -90 dBm @ 2 Mbps
Typ. -88 dBm @ 5.5 Mbps
Typ. -85 dBm @ 11 Mbps
TAP-M310R-1P1R1S and -1P2R1S models:
Typ. -91 dBm @ 1 Mbps
Typ. -87 dBm @ 2 Mbps
Typ. -85 dBm @ 5.5 Mbps
Typ. -83 dBm @ 11 Mbps

Receiver Sensitivity for 802.11g

TAP-M310R-NPS-1R and -1P1R models:
Typ. -89 dBm @ 6 Mbps
Typ. -87 dBm @ 9 Mbps
Typ. -86 dBm @ 12 Mbps
Typ. -84 dBm @ 18 Mbps
Typ. -81 dBm @ 24 Mbps
Typ. -78 dBm @ 36 Mbps
Typ. -73 dBm @ 48 Mbps
Typ. -72 dBm @ 54 Mbps
TAP-M310R-1P1R1S and -1P2R1S models:
Typ. -86 dBm @ 6 Mbps
Typ. -84 dBm @ 9 Mbps
Typ. -83 dBm @ 12 Mbps
Typ. -81 dBm @ 18 Mbps
Typ. -78 dBm @ 24 Mbps
Typ. -74 dBm @ 36 Mbps
Typ. -70 dBm @ 48 Mbps
Typ. -69 dBm @ 54 Mbps

Receiver Sensitivity for 802.11n (2.4 GHz)

TAP-M310R-NPS-1R and -1P1R models:
Typ. -88 dBm @ MCS0 20 MHz
Typ. -86 dBm @ MCS1 20 MHz
Typ. -83 dBm @ MCS2 20 MHz
Typ. -80 dBm @ MCS3 20 MHz
Typ. -77 dBm @ MCS4 20 MHz
Typ. -72 dBm @ MCS5 20 MHz
Typ. -71 dBm @ MCS6 20 MHz
Typ. -69 dBm @ MCS7 20 MHz
Typ. -90 dBm @ MCS8 20 MHz
Typ. -87 dBm @ MCS9 20 MHz
Typ. -85 dBm @ MCS10 20 MHz
Typ. -82 dBm @ MCS11 20 MHz
Typ. -78 dBm @ MCS12 20 MHz
Typ. -74 dBm @ MCS13 20 MHz
Typ. -73 dBm @ MCS14 20 MHz
Typ. -71 dBm @ MCS15 20 MHz
Typ. -86 dBm @ MCS0 40 MHz
Typ. -84 dBm @ MCS1 40 MHz
Typ. -81 dBm @ MCS2 40 MHz
Typ. -78 dBm @ MCS3 40 MHz
Typ. -74 dBm @ MCS4 40 MHz
Typ. -70 dBm @ MCS5 40 MHz
Typ. -68 dBm @ MCS6 40 MHz
Typ. -67 dBm @ MCS7 40 MHz
Typ. -88 dBm @ MCS8 40 MHz
Typ. -85 dBm @ MCS9 40 MHz
Typ. -83 dBm @ MCS10 40 MHz
Typ. -79 dBm @ MCS11 40 MHz
Typ. -76 dBm @ MCS12 40 MHz
Typ. -72 dBm @ MCS13 40 MHz
Typ. -70 dBm @ MCS14 40 MHz
Typ. -68 dBm @ MCS15 40 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
Typ. -85 dBm @ MCS0 20 MHz
Typ. -82 dBm @ MCS1 20 MHz
Typ. -80 dBm @ MCS2 20 MHz
Typ. -77 dBm @ MCS3 20 MHz
Typ. -73 dBm @ MCS4 20 MHz
Typ. -69 dBm @ MCS5 20 MHz
Typ. -68 dBm @ MCS6 20 MHz
Typ. -66 dBm @ MCS7 20 MHz
Typ. -87 dBm @ MCS8 20 MHz
Typ. -84 dBm @ MCS9 20 MHz
Typ. -82 dBm @ MCS10 20 MHz
Typ. -79 dBm @ MCS11 20 MHz
Typ. -75 dBm @ MCS12 20 MHz
Typ. -71 dBm @ MCS13 20 MHz
Typ. -70 dBm @ MCS14 20 MHz
Typ. -68 dBm @ MCS15 20 MHz
Typ. -83 dBm @ MCS0 40 MHz
Typ. -80 dBm @ MCS1 40 MHz
Typ. -78 dBm @ MCS2 40 MHz
Typ. -74 dBm @ MCS3 40 MHz
Typ. -71 dBm @ MCS4 40 MHz
Typ. -67 dBm @ MCS5 40 MHz
Typ. -65 dBm @ MCS6 40 MHz
Typ. -64 dBm @ MCS7 40 MHz
Typ. -85 dBm @ MCS8 40 MHz
Typ. -81 dBm @ MCS9 40 MHz
Typ. -79 dBm @ MCS10 40 MHz
Typ. -75 dBm @ MCS11 40 MHz
Typ. -72 dBm @ MCS12 40 MHz
Typ. -69 dBm @ MCS13 40 MHz
Typ. -67 dBm @ MCS14 40 MHz
Typ. -65 dBm @ MCS15 40 MHz

Receiver Sensitivity for 802.11ac (2.4 GHz)

TAP-M310R-NPS-1R and -1P1R models:
Typ. -90 dBm @ MCS0 20 MHz
Typ. -86 dBm @ MCS1 20 MHz
Typ. -84 dBm @ MCS2 20 MHz
Typ. -81 dBm @ MCS3 20 MHz
Typ. -78 dBm @ MCS4 20 MHz
Typ. -74 dBm @ MCS5 20 MHz
Typ. -72 dBm @ MCS6 20 MHz
Typ. -71 dBm @ MCS7 20 MHz
Typ. -67 dBm @ MCS8 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -84 dBm @ MCS1 40 MHz
Typ. -82 dBm @ MCS2 40 MHz
Typ. -78 dBm @ MCS3 40 MHz
Typ. -75 dBm @ MCS4 40 MHz
Typ. -71 dBm @ MCS5 40 MHz
Typ. -70 dBm @ MCS6 40 MHz
Typ. -68 dBm @ MCS7 40 MHz
Typ. -65 dBm @ MCS8 40 MHz
Typ. -63 dBm @ MCS9 40 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
Typ. -86 dBm @ MCS0 20 MHz
Typ. -83 dBm @ MCS1 20 MHz
Typ. -81 dBm @ MCS2 20 MHz
Typ. -78 dBm @ MCS3 20 MHz
Typ. -75 dBm @ MCS4 20 MHz
Typ. -71 dBm @ MCS5 20 MHz
Typ. -69 dBm @ MCS6 20 MHz
Typ. -67 dBm @ MCS7 20 MHz
Typ. -64 dBm @ MCS8 20 MHz
Typ. -84 dBm @ MCS0 40 MHz
Typ. -81 dBm @ MCS1 40 MHz
Typ. -79 dBm @ MCS2 40 MHz
Typ. -75 dBm @ MCS3 40 MHz
Typ. -72 dBm @ MCS4 40 MHz
Typ. -68 dBm @ MCS5 40 MHz
Typ. -67 dBm @ MCS6 40 MHz
Typ. -65 dBm @ MCS7 40 MHz
Typ. -61 dBm @ MCS8 40 MHz
Typ. -60 dBm @ MCS9 40 MHz

Receiver Sensitivity for 802.11ax (2.4 GHz)

TAP-M310R-NPS-1R and -1P1R models:
Typ. -89 dBm @ MCS0 20 MHz
Typ. -87 dBm @ MCS1 20 MHz
Typ. -84 dBm @ MCS2 20 MHz
Typ. -81 dBm @ MCS3 20 MHz
Typ. -78 dBm @ MCS4 20 MHz
Typ. -74 dBm @ MCS5 20 MHz
Typ. -73 dBm @ MCS6 20 MHz
Typ. -71 dBm @ MCS7 20 MHz
Typ. -67 dBm @ MCS8 20 MHz
Typ. -65 dBm @ MCS9 20 MHz
Typ. -62 dBm @ MCS10 20 MHz
Typ. -60 dBm @ MCS11 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -85 dBm @ MCS1 40 MHz
Typ. -83 dBm @ MCS2 40 MHz
Typ. -80 dBm @ MCS3 40 MHz
Typ. -76 dBm @ MCS4 40 MHz
Typ. -72 dBm @ MCS5 40 MHz
Typ. -71 dBm @ MCS6 40 MHz
Typ. -69 dBm @ MCS7 40 MHz
Typ. -65 dBm @ MCS8 40 MHz
Typ. -63 dBm @ MCS9 40 MHz
Typ. -60 dBm @ MCS10 40 MHz
Typ. -58 dBm @ MCS11 40 MHz
TAP-M310R-1P1R1S and -1P2R1S models:
Typ. -87 dBm @ MCS0 20 MHz
Typ. -84 dBm @ MCS1 20 MHz
Typ. -81 dBm @ MCS2 20 MHz
Typ. -78 dBm @ MCS3 20 MHz
Typ. -75 dBm @ MCS4 20 MHz
Typ. -71 dBm @ MCS5 20 MHz
Typ. -70 dBm @ MCS6 20 MHz
Typ. -68 dBm @ MCS7 20 MHz
Typ. -64 dBm @ MCS8 20 MHz
Typ. -62 dBm @ MCS9 20 MHz
Typ. -59 dBm @ MCS10 20 MHz
Typ. -56 dBm @ MCS11 20 MHz
Typ. -85 dBm @ MCS0 40 MHz
Typ. -82 dBm @ MCS1 40 MHz
Typ. -79 dBm @ MCS2 40 MHz
Typ. -76 dBm @ MCS3 40 MHz
Typ. -73 dBm @ MCS4 40 MHz
Typ. -69 dBm @ MCS5 40 MHz
Typ. -68 dBm @ MCS6 40 MHz
Typ. -66 dBm @ MCS7 40 MHz
Typ. -62 dBm @ MCS8 40 MHz
Typ. -60 dBm @ MCS9 40 MHz
Typ. -57 dBm @ MCS10 40 MHz
Typ. -54 dBm @ MCS11 40 MHz

Ethernet Interface

Standards

All models:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3bz for 2.5GBaseT
IEEE 802.1Q for VLAN Tagging
TAP-M310R-1P1R1S and -1P2R1S models only:
IEEE 802.3z for 1000BaseX

10/100/1000/2500BaseT(X) Ports (M12 X-coded 8-pin female connector)

TAP-M310R-NPS-1R, -1P1R models: 1
TAP-M310R-1P1R1S models: 1
TAP-M310R-1P2R1S models: 2

10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

TAP-M310R-1P1R1S, -1P2R1S models: 2

1000/2500BaseSFP Slots

TAP-M310R-1P1R1S, 1P2R1S models: 2

Ethernet Software Features

Management

DHCP Server
DHCP Client
DNS
HTTP
IPv4
LLDP
SMTP
SNMPv1/v2c/v3
Syslog
TCP/IP
Telnet
UDP
VLAN
MXconfig

Security

HTTPS/SSL
RADIUS
SSH
Certificate Management

Time Management

SNTP Client

Firewall

Filter

ICMP
MAC address
IP protocol
Port-based
Wi-Fi ACL
Client Isolation

Serial Interface

Console Port

RS-232 (M12 A-coded 5-pin male connector)

LED Interface

LED Indicators

TAP-M310R-NPS-1R, -1P1R models:
PWR, PWR R, PWR L, SYS, 2.4G, 5G, LAN 1
TAP-M310R-1P1R1S, -1P2R1S models:
PWR, PWR R, PWR L, SYS, 2.4G, 5G, LAN 1, LAN 2, LAN 3, LAN 4, LAN 5, HEAD, TAIL

Input/Output Interface

Buttons

Reset button

Physical Characteristics

Housing

Metal

IP Rating

IP67

Dimensions

TAP-M310R-NPS-1R models: 74.25 x 150 x 130 mm (2.92 x 5.91 x 5.12 in)
TAP-M310R-NPS-1P1R models: 136.65 x 150 x 130 mm (5.38 x 5.91 x 5.12 in)
TAP-M310R-1P1R1S models: 198.75 x 150 x 130 mm (7.83 x 5.91 x 5.12 in)
TAP-M310R-1P2R1S models: 268.15 x 150 x 130 mm (10.56 x 5.91 x 5.12 in)

Weight

TAP-M310R-NPS-1R models: 1,688 g (3.72 lb)
TAP-M310R-NPS-1P1R models: 3,263.5 g (7.19 lb)
TAP-M310R-1P1R1S models: 4,508.5 g (9.94 lb)
TAP-M310R-1P2R1S models: 6,281 g (13.85 lb)

Installation

TAP-M310R-NPS-1R, -1P1R models: Wall mounting, DIN-rail mounting (optional)
TAP-M310R-1P1R1S, -1P2R1S models: DIN-rail mounting

Power Parameters

Input Current

TAP-M310R-NPS-1R models: 1.35 A @ 24 VDC
TAP-M310R-NPS-1P1R models:1.35 A @ 24 VDC, 0.3 A @ 110 VDC
TAP-M310R-1P1R1S models: 110 to 220 VAC, 50 to 60 Hz, 0.36 to 0.18 A (max.)
TAP-M310R-1P2R1S models: 110 to 220 VAC, 50 to 60 Hz, 0.62 to 0.31 A (max.)

Input Voltage

TAP-M310R-NPS-1R models: 24 VDC
TAP-M310R-NPS-1P1R models: 24 to 110 VDC
TAP-M310R-1P1R1S, -1P2R1S models: 110 to 220 VAC

Power Connector

TAP-M310R-NPS-1R models: M12 A-coded 4-pin male connector
TAP-M310R-NPS-1P1R models: M12 K-coded 5-pin male connector
TAP-M310R-1P1R1S, -1P2R1S models: M12 K-coded 5-pin male connector

Power Consumption

TAP-M310R-NPS-1R models: 32.4 W (max.)
TAP-M310R-NPS-1P1R models: 33W (max.)
TAP-M310R-1P1R1S models: 39.6 W (max.)
TAP-M310R-1P2R1S models: 68.2 W (max.)

Environmental Limits

Operating Temperature

-40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 61000-6-2/-6-4
EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V/m
IEC 61000-4-8 PFMF: 30 A/m

Safety

IEC 62368-1
UL 62368-1

Railway

EN 50121-4
EN 50155

Railway Fire Protection

EN 45545-2

Radio

EN 300 328, EN 301 489-1/17, EN 301 893, EN 300 440, FCC

MTBF

Time

TAP-M310R-NPS-1R models: 2,531,479 hrs
TAP-M310R-NPS-1P1R models: 1,872,508 hrs
TAP-M310R-1P1R1S models: 1,414,473 hrs
TAP-M310R-1P2R1S models: 922,834 hrs

Standards

Telcordia Standard SR-332

Warranty

Warranty Period

5 years
