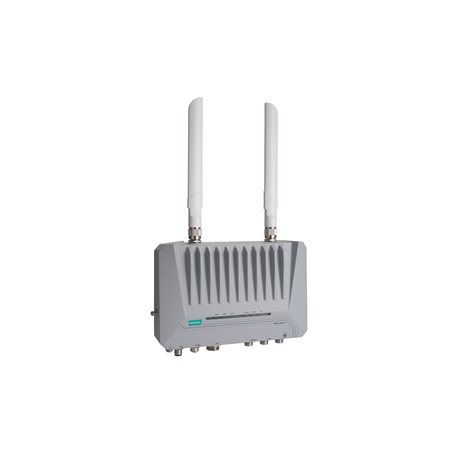

AWK-4262A Series-Outdoor Wi-Fi 6 AP/Bridge/Client

AWK-4262A Series

Features and Benefits

IEEE 802.11ax Wi-Fi 6 AP/bridge/client
Concurrent dual-band Wi-Fi with aggregated data rates up to 1.775 Gbps
Wi-Fi 6 OFDMA technology enables concurrent communication with multiple clients for high density environment
Latest WPA3 encryption for enhanced wireless network security
Millisecond-level Client-based Turbo Roaming
Built-in 2.4 GHz and 5 GHz band pass filter for more reliable wireless connections
Universal (UN) models with configurable country or region code for more flexible deployment
IP68-rated weatherproof housing designed for outdoor applications and -40 to 75°C wide operating temperature range

Get Quote Get Quote

Download Datasheet Download Datasheet

Models

AWK-4262A-US-T
AWK-4262A-UN-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy AWK-4262A from APulsar Technologies, MOXA official distributor.

In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The AWK-4262A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ax echnology for aggregated data rates of up to 1.775Gbps. The AWK-4262A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-4262A can be powered via PoE to facilitate flexible deployment.

The AWK-4262A can operate concurrently on both the 2.4 and 5 GHz bands and is backwards-compatible with existing 802.11a/b/g/n/ac deployments to future-proof your wireless investments.

Advanced 802.11ax Industrial Wireless Solution

802.11a/b/g/n/ac/ax compliant AP/bridge/client for flexible deployment
DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology

Seamless roaming with client-based Turbo Roaming1 for < 150 ms roaming recovery time between APs (Client Mode)

Industrial Ruggedness

IP68-rated weatherproof housing designed for outdoor applications
-40 to 75°C wide operating temperature for smooth wireless communication in harsh environments

Specifications

WLAN Interface

WLAN Standards

2.4 GHz: 802.11ax with 1024 QAM support, 20/40 MHz
5 GHz: 802.11ax with 1024 QAM support, 20/40/80 MHz

Frequency Band for US (20 MHz operating channels)

AWK-4262A US Models Only:

2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels)

Frequency Band for UN (20 MHz operating channels)

AWK-4262A UN Models Only:

2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels)

Available channels change depending on the selected country or region code.

Wireless Security

WEP encryption (64-bit and 128-bit)
WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2/WPA3-Personal

Transmission Rate

2.4 GHz: Up to 573.5 Mbps
5 GHz: Up to 1,201 Mbps

Transmitter Power for 802.11a (Dual Chain)

26±1.5 dBm @ 6 Mbps
24.5±1.5 dBm @ 54 Mbps

Transmitter Power for 802.11n (5 GHz, Dual Chain)

25.5±1.5 dBm @ MCS0 20 MHz
21±1.5 dBm @ MCS7 20 MHz
24.5±1.5 dBm @ MCS0 40 MHz
22±1.5 dBm @ MCS7 40 MHz

Transmitter Power for 802.11ac (Dual Chain)

25.5±1.5 dBm @ MCS0 20 MHz
21±1.5 dBm @ MCS8 20 MHz
24.5±1.5 dBm @ MCS0 40 MHz
21±1.5 dBm @ MCS9 40 MHz
25±1.5 dBm @ MCS0 80 MHz
21±1.5 dBm @ MCS9 80 MHz

Transmitter Power for 802.11ax (Dual Chain)

25±1.5 dBm @ MCS0 20 MHz
19±1.5 dBm @ MCS11 20 MHz
24.5±1.5 dBm @ MCS0 40 MHz
19±1.5 dBm @ MCS11 40 MHz
25±1.5 dBm @ MCS0 80 MHz
19±1.5 dBm @ MCS11 80 MHz

Transmitter Power for 802.11b (Dual Chain)

29±1.5 dBm @ 1 Mbps
29±1.5 dBm @ 11 Mbps

Transmitter Power for 802.11g (Dual Chain)

27±1.5 dBm @ 6 Mbps
26±1.5 dBm @ 54 Mbps

Transmitter Power for 802.11n (2.4 GHz, Dual Chain)

26±1.5 dBm @ MCS0 20 MHz
24±1.5 dBm @ MCS7 20 MHz
26±1.5 dBm @ MCS0 40 MHz
24±1.5 dBm @ MCS7 40 MHz

Transmitter Power for 802.11ac (2.4 GHz, Dual Chain)

26±1.5 dBm @ MCS0 20 MHz
23±1.5 dBm @ MCS8 20 MHz
26±1.5 dBm @ MCS0 40 MHz
22±1.5 dBm @ MCS9 40 MHz

Transmitter Power for 802.11ax (2.4 GHz, Dual Chain)

26±1.5 dBm @ MCS0 20 MHz
20±1.5 dBm @ MCS11 20 MHz
26±1.5 dBm @ MCS0 40 MHz
20±1.5 dBm @ MCS11 40 MHz

Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

Typ. -90 @ 6 Mbps
Typ. -72 @ 54 Mbps

Receiver Sensitivity for 802.11ac (5 GHz)

Typ. -88 dBm @ MCS0 20 MHz
Typ. -65 dBm @ MCS8 20 MHz
Typ. -85 dBm @ MCS0 40 MHz
Typ. -61 dBm @ MCS9 40 MHz
Typ. -82 dBm @ MCS0 80 MHz
Typ. -58 dBm @ MCS9 80 MHz

Receiver Sensitivity for 802.11ax (5 GHz)

Typ. -89 dBm @ MCS0 20 MHz
Typ. -59 dBm @ MCS11 20 MHz
Typ. -86 dBm @ MCS0 40 MHz
Typ. -56 dBm @ MCS11 40 MHz
Typ. -83 dBm @ MCS0 80 MHz
Typ. -53 dBm @ MCS11 80 MHz

Receiver Sensitivity for 802.11b

Typ. -96 dBm @ 1 Mbps
Typ. -88 dBm @ 11 Mbps

Receiver Sensitivity for 802.11g

Typ. -91 dBm @ 6 Mbps
Typ. -74 dBm @ 54 Mbps

Receiver Sensitivity for 802.11n (2.4 GHz)

Typ. -89 dBm @ MCS0 20 MHz
Typ. -71 dBm @ MCS7 20 MHz
Typ. -86 dBm @ MCS0 40 MHz
Typ. -68 dBm @ MCS7 40 MHz

Receiver Sensitivity for 802.11ac (2.4 GHz)

Typ. -89 dBm @ MCS0 20 MHz
Typ. -67 dBm @ MCS8 20 MHz
Typ. -86 dBm @ MCS0 40 MHz
Typ. -63 dBm @ MCS9 40 MHz

Receiver Sensitivity for 802.11ax (2.4 GHz)

Typ. -91 dBm @ MCS0 20 MHz
Typ. -59 dBm @ MCS11 20 MHz
Typ. -87 dBm @ MCS0 40 MHz
Typ. -56 dBm @ MCS11 40 MHz

WLAN Operation Mode

Access point
Client
Client-Router
Master
Slave
Sniffer

Antenna

External, 3/6 dBi
Omni-directional

Antenna Connectors

2 x N-type female

Ethernet Interface

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3bz for 2.5GBaseX
IEEE 802.3af for PoE
IEEE 802.3at for PoE
IEEE 802.3az for Energy-Efficient Ethernet
IEEE 802.1X for authentication

PoE Ports (10/100/1000/2500BaseT(X), M12 connector)

10/100/1000BaseT(X) Ports (M12 connector)

Ethernet Software Features

Management

DHCP Server
DHCP Client
DNS
HTTP
IPv4/IPv6
LLDP
SMTP
SNMPv1/v2c/v3
Syslog
TCP/IP
Telnet
UDP
VLAN
MXconfig

Routing

Port forwarding
Static Route
NAT

Security

HTTPS/SSL
RADIUS
SSH
Certificate Management

Time Management

SNTP Client

Firewall

Filter

ICMP
MAC address
IP protocol
Port-based
Wi-Fi ACL
Client Isolation

Serial Interface

Console Port

RS-232
5 pin M12

USB Interface

Storage Port

USB Type A (for ABC-02 use only)

LED Interface

LED Indicators

PWR, LAN1, LAN2, 2.4GHtz, 5GHtz, SYS

Input/Output Interface

Digital Inputs

2
Max. input current: 8 mA
+13 to +30 V for state 1
+3 to -30 V for state 0

Alarm Contact Channels

Relay output with current carrying capacity of 1 A @ 24 VDC

Buttons

Reset button

Physical Characteristics

Housing

Metal

Dimensions

65.9 x 157.6 x 244 mm (2.59 x 6.20 x 9.61 in)

IP Rating

IP68

Weight

1,980 g (4.37 lb)

Installation

Wall mounting
DIN-rail mounting (with optional kit)
Pole mounting (with optional kit)

Power Parameters

Input Current

12-48 VDC, 2-0.5 A

Input Voltage

12 to 48 VDC
Redundant dual inputs
48 VDC Power-over-Ethernet

Power Connector

M12 A-coded 5-pin male connector

Power Consumption

24 W (max.)

Environmental Limits

Operating Temperature

Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certificates

EMC

EN 61000-6-2/-6-4
EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V/m
IEC 61000-4-8 PFMF: 30 A/m

Safety

IEC 62368-1
UL 62368-1

Vibration

IEC 60068-2-6

Radio

EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, NCC, RCM, SRRC, KC

MTBF

Time

2,376,815 hrs

Standards

Telcordia Standard SR-332

Warranty

Warranty Period

5 years
