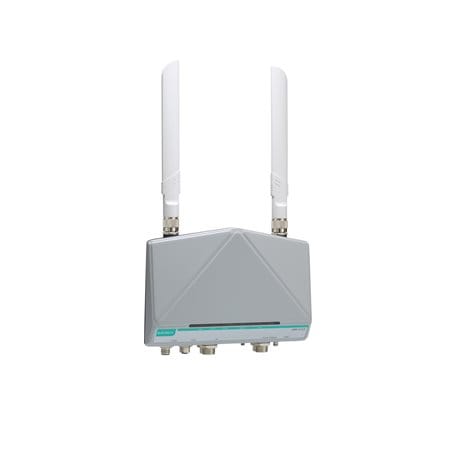

AWK-4131A Series

Features and Benefits

2×2 MIMO 802.11a/b/g/n AP/bridge/client
Millisecond-level Client-based Turbo Roaming
Easy setup and deployment with AeroMag
Wireless redundancy with AeroLink Protection
Easy network setup with Network Address Translation (NAT)
Rugged industrial design with integrated antenna and power isolation
IP68-rated weatherproof housing designed for outdoor applications and -40 to 75°C wide operating temperature range
Avoid wireless congestion with 5 GHz DFS channel support

Get Quote Get Quote

Download Datasheet Download Datasheet

Models

AWK-4131A-US-T
AWK-4131A-JP-T
AWK-4131A-EU-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy AWK-4131A from APulsar Technologies, MOXA official distributor.

In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The AWK-4131A IP68 outdoor industrial AP/bridge/client meets the growing need for faster data transmission speeds by supporting 802.11n technology and allowing 2X2 MIMO communication with a net data rate of up to 300 Mbps. The AWK-4131A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-4131A can be powered via PoE to make deployment easier. The AWK-4131A can operate on either the 2.4 GHz or 5 GHz bands and is backwards-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments. The Wireless add-on for the MXview network management utility visualizes the AWK’s invisible wireless connections to ensure wall-to-wall Wi-Fi connectivity.

Advanced 802.11n Industrial Wireless Solution

802.11a/b/g/n compliant AP/bridge/client for flexible deployment
Software-optimized for long-distance wireless communication with up to 1 km line of sight and external high-gain antenna (available only on 5 GHz)
Supports 60 clients connected concurrently
DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology for Mission-critical Applications

Seamless roaming with client-based Turbo Roaming for < 150 ms roaming recovery time between APs (Client mode)
AeroMag support for error-free setup of your industrial applications’ basic WLAN settings
Supports AeroLink Protection for creating a redundant wireless link (< 300 ms recovery time) between APs and their clients

Industrial Ruggedness

Integrated antenna and power isolation designed to provide 500 V insulation protection against external electrical interference
IP68-rated metal casing for complete ingress protection for any outdoor weather
-40 to 75°C wide operating temperature models available for smooth wireless communication in harsh environments

Wireless Network Management With MXview Wireless

Dynamic topology view shows the status of wireless links and connection changes at a glance
Visual, interactive roaming playback function to review the roaming history of clients
Detailed device information and performance indicator charts for individual AP and client devices

Specifications

WLAN Interface

WLAN Standards

802.11a/b/g/n
802.11i Wireless Security

Modulation Type

DSSS
OFDM
MIMO-OFDM

Frequency Band for US (20 MHz operating channels)

2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels)

Frequency Band for EU (20 MHz operating channels)

2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)

Frequency Band for JP (20 MHz operating channels)

2.412 to 2.484 GHz (14 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.240 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)

Wireless Security

WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal

Transmission Rate

802.11b: 1 to 11 Mbps
802.11a/g: 6 to 54 Mbps
802.11n: 6.5 to 300 Mbps

Transmitter Power for 802.11a

23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
20±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps

Transmitter Power for 802.11n (5 GHz)

23±1.5 dBm @ MCS0/8 20 MHz
18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz

Transmitter Power for 802.11b

26±1.5 dBm @ 1 Mbps
26±1.5 dBm @ 2 Mbps
26±1.5 dBm @ 5.5 Mbps
25±1.5 dBm @ 11 Mbps

Transmitter Power for 802.11g

23±1.5 dBm @ 6 to 24 Mbps
21±1.5 dBm @ 36 Mbps
19±1.5 dBm @ 48 Mbps
18±1.5 dBm @ 54 Mbps

Transmitter Power for 802.11n (2.4 GHz)

23±1.5 dBm @ MCS0/8 20 MHz
18±1.5 dBm @ MCS7/15 20 MHz
23±1.5 dBm @ MCS0/8 40 MHz
17±1.5 dBm @ MCS7/15 40 MHz

Transmitter Power

	US	EU	JP
2.4 GHz	26 dBm	18 dBm	18 dBm
5 GHz (UNII-1)	23 dBm	21 dBm	21 dBm
5 GHz (UNII-2)	23 dBm	21 dBm	21 dBm
5 GHz (UNII-2e)	23 dBm	23 dBm	23 dBm
5 GHz (UNII-3)	23 dBm	–	–
Note: Based on regional regulations, the maximum transmission power allowed on the UNII bands is restricted in the firmware, as indicated above.

Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

Typ. -90 @ 6 Mbps
Typ. -88 @ 9 Mbps
Typ. -88 @ 12 Mbps
Typ. -85 @ 18 Mbps
Typ. -81 @ 24 Mbps
Typ. -78 @ 36 Mbps
Typ. -74 @ 48 Mbps
Typ. -72 @ 54 Mbps
Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

Typ. -69 dBm @ MCS7 20 MHz
Typ. -71 dBm @ MCS15 20 MHz
Typ. -63 dBm @ MCS7 40 MHz
Typ. -68 dBm @ MCS15 40 MHz
Note: Due to a limitation in the receiver sensitivity performance for channels 153 and 161, it is recommended to avoid using these channels in your critical applications.

Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

Typ. -93 dBm @ 1 Mbps
Typ. -93 dBm @ 2 Mbps
Typ. -93 dBm @ 5.5 Mbps
Typ. -88 dBm @ 11 Mbps

Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

Typ. -88 dBm @ 6 Mbps
Typ. -86 dBm @ 9 Mbps
Typ. -85 dBm @ 12 Mbps
Typ. -85 dBm @ 18 Mbps
Typ. -85 dBm @ 24 Mbps
Typ. -82 dBm @ 36 Mbps
Typ. -78 dBm @ 48 Mbps
Typ. -74 dBm @ 54 Mbps

Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

Typ. -70 dBm @ MCS7 20 MHz
Typ. -69 dBm @ MCS15 20 MHz
Typ. -67 dBm @ MCS7 40 MHz
Typ. -67 dBm @ MCS15 40 MHz

WLAN Operation Mode

Access point
Client
Client-Router
Master
Slave
Sniffer

Antenna

External, 3/6 dBi
Omni-directional

WLAN Antenna Connector

2 N-type female

Ethernet Interface

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3at for PoE
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging

PoE Ports (10/100/1000BaseT(X), RJ45 connector)

Ethernet Software Features

Management

DHCP Server/Client
DNS
HTTP
IPv4
LLDP
Proxy ARP
SMTP
SNMPv1/v2c/v3
Syslog
TCP/IP
Telnet
UDP
VLAN
Wireless Search Utility
MXview One
MXview Wireless
MXconfig

Routing

Static Route
NAT
Port forwarding

Redundancy Protocols

RSTP
STP

Security

HTTPS/SSL
RADIUS
SSH

Time Management

SNTP Client

Firewall

Filter

ICMP
MAC address
IP protocol
Port-based

Serial Interface

Console Port

RS-232
8-pin RJ45

LED Interface

LED Indicators

PWR, FAULT, STATE, WLAN, LAN

Input/Output Interface

Alarm Contact Channels

Relay output with current carrying capacity of 1 A @ 24 VDC

Buttons

Reset button

Digital Inputs

+13 to +30 V for state 1
+3 to -30 V for state 0
Max. input current: 8 mA

Physical Characteristics

Housing

Metal

IP Rating

IP68

Dimensions

224 x 147.7 x 66.5 mm (8.82 x 5.82 x 2.62 in)

Weight

1,400 g (3.09 lb)

Installation

Wall mounting (standard)
DIN-rail mounting (optional)
Pole mounting (optional)

Power Parameters

Input Current

0.64 A @ 12 VDC, 0.16 A @ 48 VDC

Input Voltage

12 to 48 VDC
Redundant dual inputs
48 VDC Power-over-Ethernet

Power Connector

M12 A-coded 5-pin male connector

Power Consumption

7.68 W (max.)

Reverse Polarity Protection

Supported

Environmental Limits

Operating Temperature

-40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 61000-6-2/-6-4

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Radio

EN 300 328
EN 301 489-1/17
EN 301 893
FCC ID SLE-WAPN008
ANATEL
MIC
NCC
RCM
SRRC
WPC
KC

Safety

EN 62368-1
UL 60950-1

Cybersecurity

EN 18031-1

Vibration

IEC 60068-2-6

MTBF

Time

440,764 hrs

Standards

Telcordia Standard SR-332

Warranty

Warranty Period

5 years
