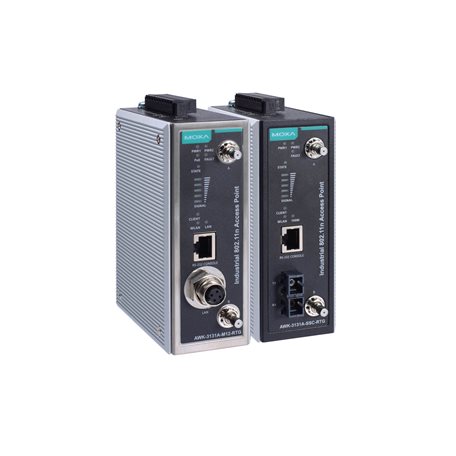

AWK-3131A-RTG Series

Features and Benefits

  • IEEE 802.11a/b/g/n compliant
  • M12 anti-vibration connectors
  • SC optical fiber connection
  • QoS (WMM) and VLAN for efficient network traffic
  • Controller-based Turbo Roaming (less than 50 ms)
  • Complies with all EN 50155 mandatory test items
  • Wide-temperature models available for -40 to 75°C environments
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • AWK-3131A-M12-RTG-EU-T
  • AWK-3131A-SSC-RTG-JP-T
  • AWK-3131A-SSC-RTG-EU-CT-T
  • AWK-3131A-SSC-RTG-US-CT-T
  • AWK-3131A-SSC-RTG-JP-CT-T
  • AWK-3131A-M12-RTG-EU-CT-T
  • AWK-3131A-M12-RTG-US-CT-T
  • AWK-3131A-M12-RTG-JP-T
  • AWK-3131A-M12-RTG-JP-CT-T
  • AWK-3131A-M12-RTG-US-T
  • AWK-3131A-SSC-RTG-EU-T
  • AWK-3131A-SSC-RTG-US-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy AWK-3131A-RTG from APulsar Technologies, MOXA official distributor.

In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The AWK-3131A-RTG 2-in-1 industrial AP/client devices are designed specifically for train-to-ground communication and can perform reliably even when the trains reach a speed of 120 km/h. The AWK-3131A-RTG complies with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the AWK-3131A-RTG suitable for a variety of industrial applications. Installation is easy, with either DIN-rail mounting or distribution boxes, and the DIN-rail mounting capability, wide operating temperature range, and IP30 housing with LED indicators make the AWK-3131A-RTG a convenient yet reliable solution for any rolling stock application.

Advanced Security

  • 64-bit and 128-bit WEP (Wired Equivalent Privacy)
  • Enable/disable SSID broadcasts
  • WPA/WPA2 (Wi-Fi Protected Access) and 802.11i support
  • IEEE802.1X/RADIUS support
  • Powerful filters for access control

Designed for Train-to-Ground Applications

  • Client-based Turbo Roaming handover time < 150 ms @ 3 channel with WPA2
  • Controller-based Turbo Roaming handover time (available only when used with the WAC-1001 or WAC-2004) < 50 ms @ 3 channels with WPA2
  • Multiple roaming parameters for different installation structures and antenna types

Specifications

WLAN Interface

WLAN Standards

  • 802.11a/b/g/n
  • 802.11i Wireless Security

Modulation Type

  • DSSS
  • OFDM
  • 802.11b: CCK @ 11/5.5 Mbps
  • 802.11b: DQPSK @ 2 Mbps
  • 802.11b: DBPSK @ 1 Mbps
  • 802.11a/g: 64QAM @ 54/48 Mbps
  • 802.11a/g: 16QAM @ 36/24 Mbps
  • 802.11a/g: QPSK @ 18/12 Mbps
  • 802.11a/g: BPSK @ 9/6 Mbps
  • 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps

Frequency Band for US (20 MHz operating channels)

  • 2.412 to 2.462 GHz (11 channels)
  • 5.180 to 5.240 GHz (4 channels)
  • 5.260 to 5.320 GHz (4 channels
  • 5.500 to 5.700 GHz (8 channels) excluding 5.600 to 5.640
  • 5.745 to 5.825 GHz (5 channels)

Frequency Band for EU (20 MHz operating channels)

  • 2.412 to 2.472 GHz (13 channels)
  • 5.180 to 5.240 GHz (4 channels)
  • 5.260 to 5.320 GHz (4 channels
  • 5.500 to 5.700 GHz (11 channels)

Frequency Band for JP (20 MHz operating channels)

  • 2.412 to 2.484 GHz (14 channels)
  • 5.180 to 5.240 GHz (4 channels)
  • 5.260 to 5.320 GHz (4 channels
  • 5.500 to 5.700 GHz (11 channels)

Wireless Security

  • SSID broadcast enable/disable
  • WEP encryption (64-bit and 128-bit)
  • WPA/WPA2-Personal
  • WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)

Transmission Rate

  • 802.11b: 1 to 11 Mbps
  • 802.11a/g: 6 to 54 Mbps
  • 802.11n: 6.5 to 300 Mbps

Transmitter Power for 802.11a

  • 23±1.5 dBm @ 6 to 24 Mbps
  • 21±1.5 dBm @ 36 Mbps
  • 20±1.5 dBm @ 48 Mbps
  • 18±1.5 dBm @ 54 Mbps

Transmitter Power for 802.11n (5 GHz)

  • 23±1.5 dBm @ MCS0 20 MHz
  • 20±1.5 dBm @ MCS1 20 MHz
  • 20±1.5 dBm @ MCS2 20 MHz
  • 20±1.5 dBm @ MCS3 20 MHz
  • 19±1.5 dBm @ MCS4 20 MHz
  • 18±1.5 dBm @ MCS5 20 MHz
  • 18±1.5 dBm @ MCS6 20 MHz
  • 18±1.5 dBm @ MCS7 20 MHz
  • 23±1.5 dBm @ MCS8 20 MHz
  • 20±1.5 dBm @ MCS9 20 MHz
  • 20±1.5 dBm @ MCS10 20 MHz
  • 20±1.5 dBm @ MCS11 20 MHz
  • 19±1.5 dBm @ MCS12 20 MHz
  • 19±1.5 dBm @ MCS13 20 MHz
  • 18±1.5 dBm @ MCS14 20 MHz
  • 18±1.5 dBm @ MCS15 20 MHz
  • 23±1.5 dBm @ MCS0 40 MHz
  • 20±1.5 dBm @ MCS1 40 MHz
  • 20±1.5 dBm @ MCS2 40 MHz
  • 20±1.5 dBm @ MCS3 40 MHz
  • 19±1.5 dBm @ MCS4 40 MHz
  • 18±1.5 dBm @ MCS5 40 MHz
  • 18±1.5 dBm @ MCS6 40 MHz
  • 18±1.5 dBm @ MCS7 40 MHz
  • 23±1.5 dBm @ MCS8 40 MHz
  • 20±1.5 dBm @ MCS9 40 MHz
  • 20±1.5 dBm @ MCS10 40 MHz
  • 20±1.5 dBm @ MCS11 40 MHz
  • 19±1.5 dBm @ MCS12 40 MHz
  • 19±1.5 dBm @ MCS13 40 MHz
  • 18±1.5 dBm @ MCS14 40 MHz
  • 18±1.5 dBm @ MCS15 40 MHz

Transmitter Power for 802.11b

  • 26±1.5 dBm @ 1 Mbps
  • 26±1.5 dBm @ 2 Mbps
  • 26±1.5 dBm @ 5.5 Mbps
  • 25±1.5 dBm @ 11 Mbps

Transmitter Power for 802.11g

  • 23±1.5 dBm @ 6 to 24 Mbps
  • 21±1.5 dBm @ 36 Mbps
  • 19±1.5 dBm @ 48 Mbps
  • 18±1.5 dBm @ 54 Mbps

Transmitter Power for 802.11n (2.4 GHz)

  • 23±1.5 dBm @ MCS0 20 MHz
  • 21±1.5 dBm @ MCS1 20 MHz
  • 21±1.5 dBm @ MCS2 20 MHz
  • 21±1.5 dBm @ MCS3 20 MHz
  • 20±1.5 dBm @ MCS4 20 MHz
  • 19±1.5 dBm @ MCS5 20 MHz
  • 18±1.5 dBm @ MCS6 20 MHz
  • 18±1.5 dBm @ MCS7 20 MHz
  • 23±1.5 dBm @ MCS8 20 MHz
  • 21±1.5 dBm @ MCS9 20 MHz
  • 21±1.5 dBm @ MCS10 20 MHz
  • 21±1.5 dBm @ MCS11 20 MHz
  • 20±1.5 dBm @ MCS12 20 MHz
  • 19±1.5 dBm @ MCS13 20 MHz
  • 18±1.5 dBm @ MCS14 20 MHz
  • 18±1.5 dBm @ MCS15 20 MHz
  • 23±1.5 dBm @ MCS0 40 MHz
  • 20±1.5 dBm @ MCS1 40 MHz
  • 20±1.5 dBm @ MCS2 40 MHz
  • 20±1.5 dBm @ MCS3 40 MHz
  • 19±1.5 dBm @ MCS4 40 MHz
  • 19±1.5 dBm @ MCS5 40 MHz
  • 18±1.5 dBm @ MCS6 40 MHz
  • 17±1.5 dBm @ MCS7 40 MHz
  • 23±1.5 dBm @ MCS8 40 MHz
  • 20±1.5 dBm @ MCS9 40 MHz
  • 20±1.5 dBm @ MCS10 40 MHz
  • 20±1.5 dBm @ MCS11 40 MHz
  • 20±1.5 dBm @ MCS12 40 MHz
  • 19±1.5 dBm @ MCS13 40 MHz
  • 18±1.5 dBm @ MCS14 40 MHz
  • 17±1.5 dBm @ MCS15 40 MHz

Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

  • Typ. -90 @ 6 Mbps
  • Typ. -88 @ 9 Mbps
  • Typ. -88 @ 12 Mbps
  • Typ. -85 @ 18 Mbps
  • Typ. -81 @ 24 Mbps
  • Typ. -78 @ 36 Mbps
  • Typ. -74 @ 48 Mbps
  • Typ. -74 @ 54 Mbps

Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

  • Typ. -88 dBm @ MCS0 20 MHz
  • Typ. -85 dBm @ MCS1 20 MHz
  • Typ. -82 dBm @ MCS2 20 MHz
  • Typ. -79 dBm @ MCS3 20 MHz
  • Typ. -76 dBm @ MCS4 20 MHz
  • Typ. -71 dBm @ MCS5 20 MHz
  • Typ. -70 dBm @ MCS6 20 MHz
  • Typ. -69 dBm @ MCS7 20 MHz
  • Typ. -95 dBm @ MCS8 20 MHz
  • Typ. -91 dBm @ MCS9 20 MHz
  • Typ. -87 dBm @ MCS10 20 MHz
  • Typ. -80 dBm @ MCS11 20 MHz
  • Typ. -78 dBm @ MCS12 20 MHz
  • Typ. -74 dBm @ MCS13 20 MHz
  • Typ. -72 dBm @ MCS14 20 MHz
  • Typ. -71 dBm @ MCS15 20 MHz
  • Typ. -84 dBm @ MCS0 40 MHz
  • Typ. -81 dBm @ MCS1 40 MHz
  • Typ. -77 dBm @ MCS2 40 MHz
  • Typ. -75 dBm @ MCS3 40 MHz
  • Typ. -71 dBm @ MCS4 40 MHz
  • Typ. -67 dBm @ MCS5 40 MHz
  • Typ. -64 dBm @ MCS6 40 MHz
  • Typ. -63 dBm @ MCS7 40 MHz
  • Typ. -90 dBm @ MCS8 40 MHz
  • Typ. -85 dBm @ MCS9 40 MHz
  • Typ. -82 dBm @ MCS10 40 MHz
  • Typ. -81 dBm @ MCS11 40 MHz
  • Typ. -77 dBm @ MCS12 40 MHz
  • Typ. -73 dBm @ MCS13 40 MHz
  • Typ. -71 dBm @ MCS14 40 MHz
  • Typ. -68 dBm @ MCS15 40 MHz

Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

  • Typ. -93 dBm @ 1 Mbps
  • Typ. -93 dBm @ 2 Mbps
  • Typ. -93 dBm @ 5.5 Mbps
  • Typ. -88 dBm @ 11 Mbps

Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

  • Typ. -88 dBm @ 6 Mbps
  • Typ. -86 dBm @ 9 Mbps
  • Typ. -85 dBm @ 12 Mbps
  • Typ. -85 dBm @ 18 Mbps
  • Typ. -85 dBm @ 24 Mbps
  • Typ. -82 dBm @ 36 Mbps
  • Typ. -78 dBm @ 48 Mbps
  • Typ. -74 dBm @ 54 Mbps

Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

  • Typ. -89 dBm @ MCS0 20 MHz
  • Typ. -85 dBm @ MCS1 20 MHz
  • Typ. -85 dBm @ MCS2 20 MHz
  • Typ. -82 dBm @ MCS3 20 MHz
  • Typ. -78 dBm @ MCS4 20 MHz
  • Typ. -74 dBm @ MCS5 20 MHz
  • Typ. -72 dBm @ MCS6 20 MHz
  • Typ. -70 dBm @ MCS7 20 MHz
  • Typ. -95 dBm @ MCS8 20 MHz
  • Typ. -90 dBm @ MCS9 20 MHz
  • Typ. -87 dBm @ MCS10 20 MHz
  • Typ. -83 dBm @ MCS11 20 MHz
  • Typ. -80 dBm @ MCS12 20 MHz
  • Typ. -74 dBm @ MCS13 20 MHz
  • Typ. -71 dBm @ MCS14 20 MHz
  • Typ. -69 dBm @ MCS15 20 MHz
  • Typ. -87 dBm @ MCS0 40 MHz
  • Typ. -83 dBm @ MCS1 40 MHz
  • Typ. -83 dBm @ MCS2 40 MHz
  • Typ. -80 dBm @ MCS3 40 MHz
  • Typ. -76 dBm @ MCS4 40 MHz
  • Typ. -73 dBm @ MCS5 40 MHz
  • Typ. -69 dBm @ MCS6 40 MHz
  • Typ. -67 dBm @ MCS7 40 MHz
  • Typ. -93 dBm @ MCS8 40 MHz
  • Typ. -88 dBm @ MCS9 40 MHz
  • Typ. -85 dBm @ MCS10 40 MHz
  • Typ. -82 dBm @ MCS11 40 MHz
  • Typ. -78 dBm @ MCS12 40 MHz
  • Typ. -73 dBm @ MCS13 40 MHz
  • Typ. -69 dBm @ MCS14 40 MHz
  • Typ. -67 dBm @ MCS15 40 MHz

WLAN Operation Mode

  • Access point, Client, Client-Router, Sniffer

Antenna Connectors

  • QMA

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

  • 1, AWK-3131A-M12-RTG only

Standards

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)
  • IEEE 802.3af for PoE
  • IEEE 802.1Q for VLAN Tagging

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

  • 1, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection (AWK-3131A-M12-RTG only)

100BaseFX Ports (single-mode SC connector)

  • 1, AWK-3131A-SSC-RTG only

Optical Fiber

100BaseFX
Wavelength 1310 nm
Max. TX 0 dBm
Min. TX -5 dBm
RX Sensitivity -34 dBm
Link Budget 29 dB
Typical Distance 40 km

Management

  • General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP
  • AP-only: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)

Security

  • RADIUS

Filter

  • MAC/IP Protocol/Port-based

Console Port

  • RS-232 (RJ45-type)

LED Indicators

  • PWR1, PWR2, PoE*, FAULT, STATE, SIGNAL, CLIENT, WLAN, LAN (AWK-3131A-M12-RTG only),100M (AWK-3131A-SSC-RTG only)

*PoE is only available for the AWK-3131A-M12-RTG

Digital Inputs

  • 2
  • +13 to +30 V for state 1
  • +3 to -30 V for state 0
  • Max. input current: 8 mA

Alarm Contact Channels

  • Relay output with current carrying capacity of 1 A @ 24 VDC

Buttons

  • Reset button

Housing

  •  Metal

IP Rating

  • IP30

Dimensions

  • 52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)

Weight

  • 850 g (1.87 lb)

Installation

  • DIN-rail mounting, Wall mounting (with optional kit)

Input Current

  • AWK-3131A-M12-RTG: 0.85 A @ 12 VDC, 0.22 A @ 48 VDC
  • AWK-3131A-SSC-RTG: 1.0 A @ 12 VDC, 0.27 A @ 48 VDC

Input Voltage

  • 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet

Power Connector

  • 1 removable 10-contact terminal block(s)

Power Consumption

  • AWK-3131A-M12-RTG: Maximum 10.5 W
  • AWK-3131A-SSC-RTG: Maximum 13 W

Reverse Polarity Protection

  • Supported

Operating Temperature

  • Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 61000-6-2/-6-4

EMI

  • CISPR 32, FCC Part 15B Class B

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8

Railway

  • EN 50155, EN 50121-4

Railway Fire Protection

  • EN 45545-2

Radio

  • EN 301 489-1/17, EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, SRRC, NCC, IDA

Safety

  • UL 60950-1, IEC 60950-1, EN 60950-1 (LVD)

Time

  • AWK-3131A-M12-RTG: 552,454 hrs
  • AWK-3131A-SSC-RTG: 528,478 hrs

Standards

  • Telcordia SR332

Warranty Period

  • 5 years
