WAC-2004A Series

Features and Benefits

  • 2-in-1 AP controller and mobile IP home agent
  • Millisecond-level controller-based Turbo Roaming
  • IEEE 802.11i-compliant wireless security
  • Layer-3 mobile IP technology
  • Scalable tunneling capacity
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • WAC-2004A

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy WAC-2004A from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

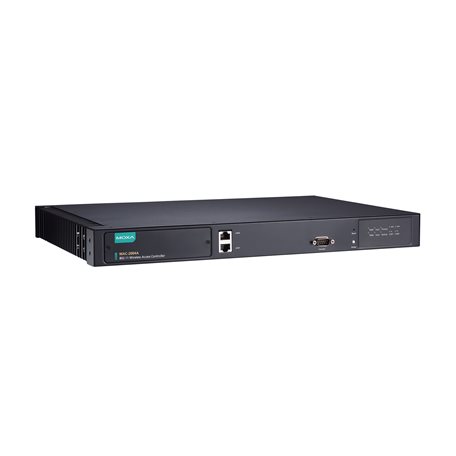

The goal of zero-latency roaming is to allow clients to seamlessly maintain their connection as they move from one access point to another. Moxa’s WAC-2004A Industrial Wireless Access Controller features Controller-based Turbo Roaming technology to enable millisecond-level roaming across different IP subnets. The advanced roaming algorithm along with Mobile IP technology allows wireless clients to roam between APs in different IP subnets within milliseconds, while upholding stringent security in extremely demanding environments. The rugged WAC-2004A is capable of operating at temperatures of 0 to 50°C and is suitable for on-site installation in harsh industrial environments.

Maximum Availability

  • Device-level redundancy via hot standby controller

Minimum Handover Time

  • Millisecond-level Turbo Roaming
  • Inter-controller roaming

Maximum Mobility in L3 Networks

  • Mobile IP tunneling
  • Care-of-Address (CoA) assignment
  • Cross Layer 3 subnet roaming

Specifications

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)

  • 2
  • Port 1: Communications port for WAC/HA
  • Port 2: Reserved

Standards

  • IEEE 802.11i for Wireless Security
  • IEEE 802.3 for 10BaseT
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.1X for authentication

Management

  • IPv4, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, TFTP, Web Console, Wireless Search Utility

Security

  • HTTPS/SSL, RADIUS, SSH

Time Management

  • NTP Client, SNTP

Console Port

  • RS-232 ports x 1 (DB9 male)

Flow Control

  • RTS/CTS, XON/XOFF

Parity

  • None, Even, Odd, Space, Mark

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Controller Failover Mode

  • 1-on-1 hot backup

Handover Time

  • 50 ms

Roaming Support

  • Turbo Roaming (L2/L3) with inter-controller capabilities

WLAN Products Supported

  • Layer 2 networks: Up to 190 clients roaming between 400 APs
  • Layer 3 networks: Up to 100 clients roaming between 190 APs

TAP Products

  • TAP-213/323 Series

AWK Products

  • AWK-3131A-RTG Series

Input Current

  • 1.2 A @ 100 VAC

Input Voltage

  • 100 to 240 VAC

No. of Power Inputs

  • 2

Operating Voltage

  • 100 to 240 VAC

Housing

  • Metal

Dimensions (without ears)

  • 304 x 440 x 44 mm (11.97 x 17.32 x 1.73 in)

Weight

  • 4,550 g (10.03 lb)

Installation

  • 19-inch rack mounting

Operating Temperature

  • 0 to 50°C (32 to 122°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Safety

  • IEC 60950-1, UL 62368-1, IEC 62368-1

EMC

  • EN 55032/35, EN 61000-6-2/-6-4

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
  • IEC 61000-4-3 RS: 1400 MHz to 2000 MHz: 10 V/m
  • IEC 61000-4-3 RS: 2000 MHz to 2700 MHz: 5 V/m
  • IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF: 100 A/m

Green Product

  • RoHS, CRoHS, WEEE

Time

  • 447,959 hrs

Standards

  • Telcordia SR332

Warranty Period

  • 5 years
