WAC-1001 Series

Features and Benefits

  • Redundant 12 to 48 VDC power inputs
  • Controller-based Turbo Roaming (less than 50 ms)
  • Supported models: AWK-RTG Series, TAP Series
  • IEEE 802.11i-compliant wireless security
  • DIN-rail mounting or wall mounting (optional) for on-site installation
  • -40 to 75°C operating temperature range (-T model)
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • WAC-1001
  • WAC-1001-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy WAC-1001 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

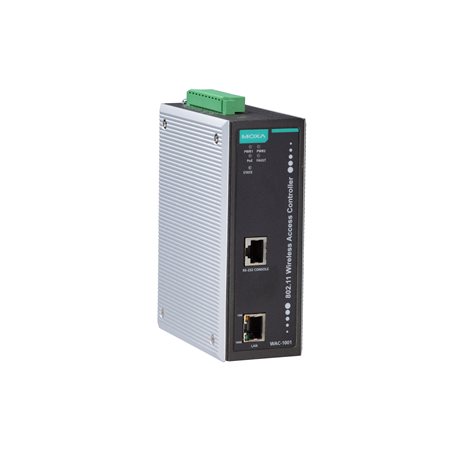

The WAC-1001 wireless access controller provides a seamless roaming experience for Moxa’s access points in distributed wireless networks. It uses Moxa’s controller-based Turbo Roaming technology to achieve less than 50 ms roaming handover times on up to three channels. This advanced roaming capability securely hands off clients at speeds so high that wireless clients can enjoy seamless roaming between APs, with virtually no interruption in connectivity. WAC-1001 also supports 1-to-1 hot backup function to help make your network more reliable. Wide-temperature models that can operate in -40 to 75°C are also available.

Maximum Availability

  • Enables millisecond-level Turbo Roaming
  • Configuration backup
  • Dual redundant DC power inputs

Advanced Security

  • IEEE802.1X/RADIUS supported
  • WPA/WPA2/802.11i supported
  • Integrated DI/DO for on-site monitoring and warnings

Specifications

Input/Output Interface

Alarm Contact Channels

  • 1 relay output with current carrying capacity of 1 A @ 24 VDC

10/100/1000BaseT(X) Ports (RJ45 connector)

  • 1

Standards

  • IEEE 802.1X for authentication
  • IEEE 802.3 for 10BaseT
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3af for PoE
  • IEEE 802.3u for 100BaseT(X)

Total Port Count

  • 1

Highest Speed

  • 1G

Connections

  • PoE

Management

  • IPv4, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, TFTP, Web Console, Wireless Search Utility

Security

  • HTTPS/SSL, RADIUS, SSH

Time Management

  • NTP Client, SNTP

Console Port

  • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

Flow Control

  • RTS/CTS, XON/XOFF

Parity

  • None, Even, Odd, Space, Mark

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Controller Failover Mode

  • 1-on-1 hot backup

Handover Time

  • 50 ms

WLAN Products Supported

  • 110 radios

Input Current

  • 0.6 A @ 12 VDC, 0.15 A @ 48 VDC

Input Voltage

  • 12 to 48 VDC, Redundant dual inputs

Source of Input Power

  • PoE (IEEE 802.3af)

Housing

  • Metal

IP Rating

  • IP30

Dimensions (without ears)

  • 52.85 x 135 x 105 mm (2.08 x 5.32 x 4.13 in)

Weight

  • 1,060 g (2.34 lb)

Installation

    • DIN-rail mounting, Wall mounting (with optional kit)

Operating Temperature

  • Standard Models: -10 to 60°C (14 to 140°F)
  • Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/24

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  •  IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Railway

  • EN 50121-4, EN 50155

Safety

  • EN 60950-1, IEC 60950-1, UL 60950-1

Green Product

  • RoHS, CRoHS, WEEE

Time

  • 447,425 hrs

Standards

  • Telcordia SR332

Warranty Period

  • 5 years
