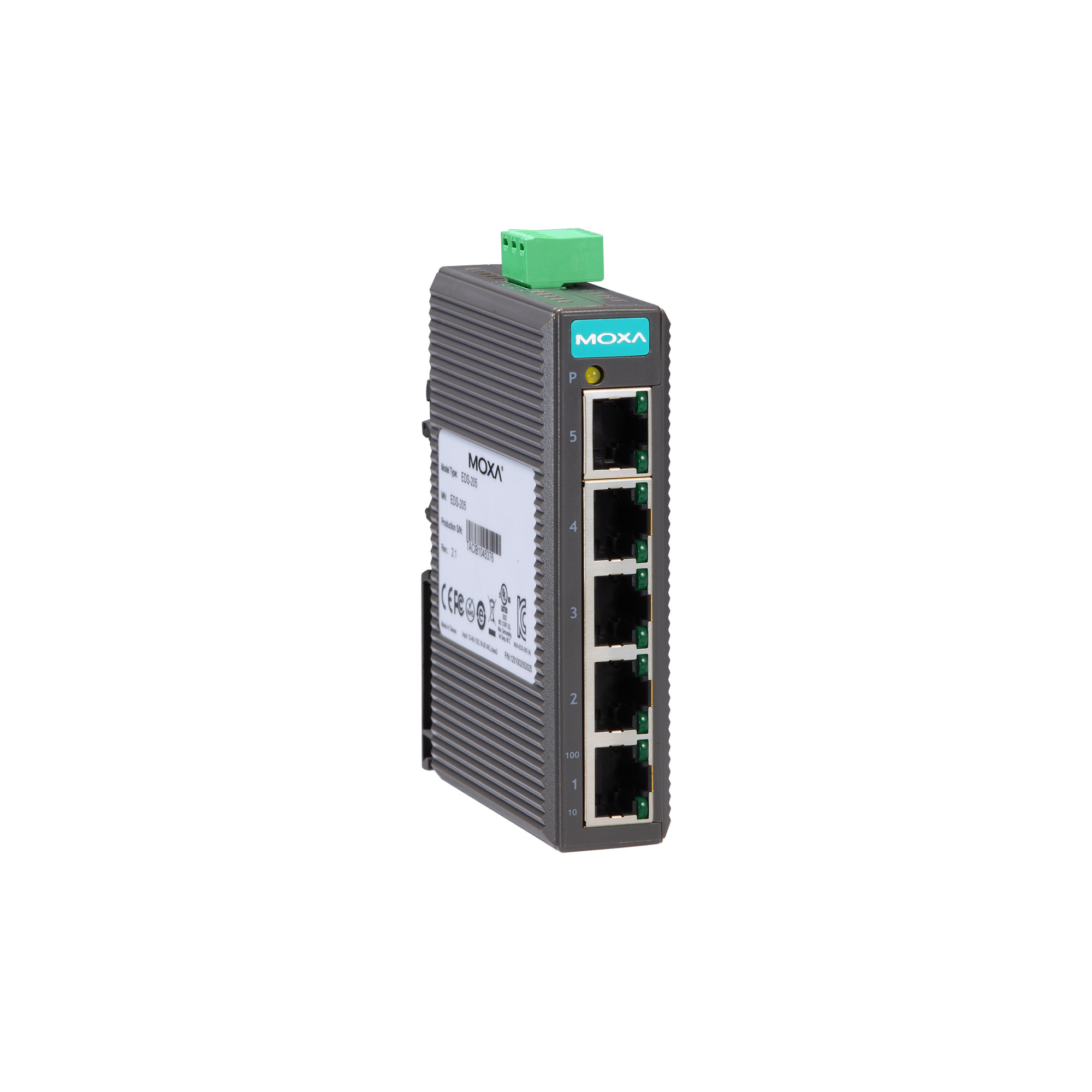

EDS-205 Series

Features and Benefits

10/100BaseT(X) (RJ45 connector)
IEEE802.3/802.3u/802.3x support
Broadcast storm protection
DIN-rail mounting abilitye
-10 to 60°C operating temperature range

Get Quote Get Quote

Download Datasheet Download Datasheet

Models

EDS-205

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy EDS-205 Series from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya. Or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The EDS-205 Series provides five 10/100M RJ45 ports with full/half-duplex and MDI/MDIX auto-sensing. It operates from -10 to 60°C in an IP30 plastic housing, making it suitable for harsh industrial environments.

DIN-rail mounting, LED indicators, and plug-and-play setup ensure fast installation and reliable operation in control cabinets or distribution boxes.

Specifications

Ethernet Interface

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for flow control

10/100BaseT(X) Ports (RJ45 connector)

Full/Half duplex mode
Auto MDI/MDI-X connection
Auto negotiation speed

Switch Properties

Processing Type

Store and Forward

MAC Table Size

Packet Buffer Size

512 kbits

Power Parameters

Input Voltage

12 to 48 VDC

Input Current

0.12 A @ 24 VDC

Connection

1 removable 3-contact terminal block(s)

Overload Current Protection

1.1 A @ 24 VDC

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Plastic

IP Rating

IP30

Dimensions

24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in)

Weight

135 g (0.30 lb)

Installation

DIN-rail mounting

Environmental Limits

Operating Temperature

-10 to 60°C (14 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

UL 508
EN 62368-1

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Freefall

IEC 60068-2-32

MTBF

Time

3,915,945 hrs

Standards

Telcordia (Bellcore), GB

Warranty

Warranty Period

5 years
