EDS-2018-ML Series

Features and Benefits

2 Gigabit uplinks with flexible interface design for high-bandwidth data aggregation
QoS supported to process critical data in heavy traffic
Relay output warning for power failure and port break alarm
IP30-rated metal housing
Redundant dual 12/24/48 VDC power inputs
-40 to 75°C wide operating temperature range (-T models)

Get Quote Get Quote

Download Datasheet Download Datasheet

Models

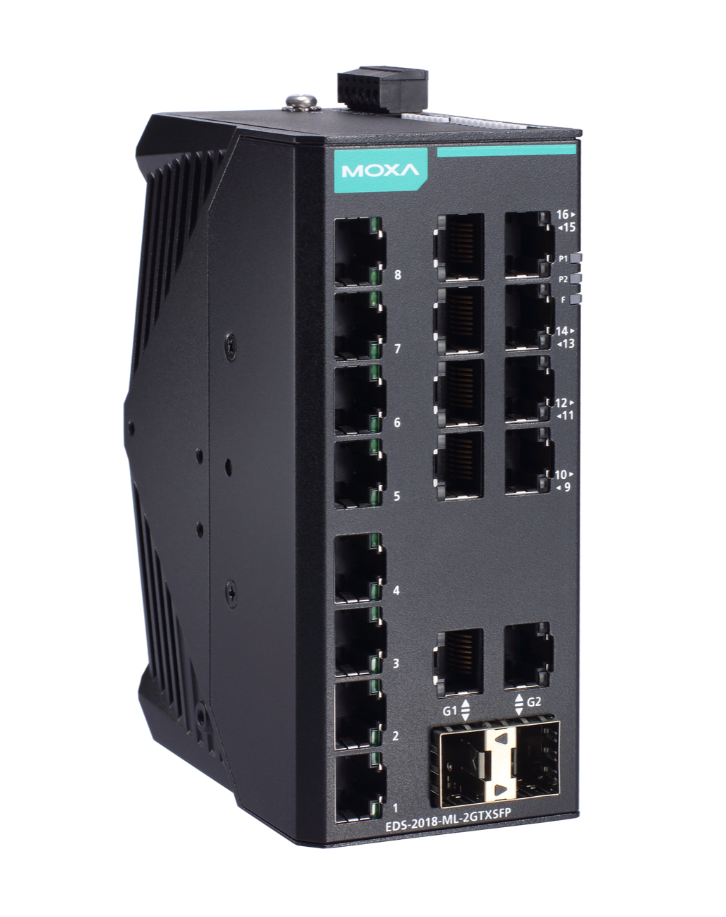

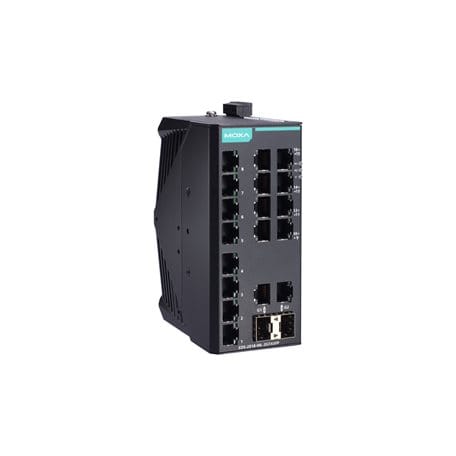

EDS-2018-ML-2GTXSFP
EDS-2018-ML-2GTXSFP-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy EDS-2018-ML Series from APulsar Technologies, MOXA official distributor.

In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The EDS-2018-ML series of industrial Ethernet switches have sixteen 10/100M copper ports and two 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, which are ideal for applications that require high-bandwidth data convergence. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2018-ML Series also allows users to enable or disable the Quality of Service (QoS) function, broadcast storm protection, and port break alarm function with DIP switches on the outer panel.

The EDS-2018-ML Series has 12/24/48 VDC redundant power inputs, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2018-ML Series has passed a 100% burn-in test to ensure it will function reliably in the field. The EDS-2018-ML Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

16
Auto MDI/MDI-X connection
Full/Half duplex mode
Auto negotiation speed

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

2
Auto negotiation speed
Auto MDI/MDI-X connection
Full/Half duplex mode

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service

DIP Switch Configuration

Ethernet Interface

Quality of Service (QoS)
Broadcast storm protection
Port break alarm

Input/Output Interface

Alarm Contact Channels

Relay output with current carrying capacity of 1 A @ 24 VDC

Switch Properties

MAC Table Size

Packet Buffer Size

4 Mbits

Processing Type

Store and Forward

Power Parameters

Connection

1 removable 6-contact terminal block(s)

Input Current

0.277 A @ 24 VDC

Input Voltage

12/24/48 VDC
Redundant dual inputs

Operating Voltage

9.6 to 60 VDC

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions

58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)

Weight

683 g (1.51 lb)

Installation

DIN-rail mounting
Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

EDS-2018-ML-2GTXSFP: -10 to 60°C (14 to 140°F)
EDS-2018-ML-2GTXSFP-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

Safety

UL 61010-2-201
EN 62368-1(LVD)

EMC

EN 55032/35
EN 61000-6-2/-6-4

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

Hazardous Locations

Class I Division 2
IECEx
ATEX

Maritime

Railway

EN 50121-4

Traffic Control

NEMA TS2

Vibration

IEC 60068-2-6

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

MTBF

Time

1,776,132 hrs

Standards

Telcordia (Bellcore), GB

Warranty

Warranty Period

5 years
