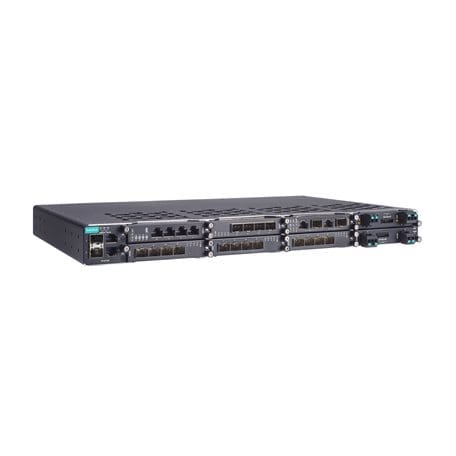

PT-G7828 Series

Features and Benefits

  • IEC 61850-3 Edition 2 Class 2 compliant for EMC
  • Hot-swappable interface and power modules for continuous operation
  • Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
  • IEEE 1588 hardware time stamp supported
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • PT-G7828

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy PT-G7828 from APulsar Technologies, MOXA official distributor.

In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The PT-G7828 modular switches provide up to 28 Gigabit ports, including 4 fixed ports, 6 interface module slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The PT-G7828 Series is designed to meet evolving network requirements, including a hot-swappable module design that enables you to change or add devices without shutting down your device.

The multiple Ethernet modules (RJ45, SFP, and PoE) and power units (24/48 VDC, 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions. The switches support a full Gigabit platform that provides enough bandwidth to set up an Ethernet backbone. Certifications include IEC 61850 Edition 2 Class 2 to ensure high availability and wide usage.

Specifications

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)

  • 2

100/1000BaseSFP Ports

  • 2

Module

  • 6

Slot Combination

  • See the LM-7000H datasheet for Gigabit Ethernet module and PoE+ module information

Standards

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X) and 100BaseFX
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3z for 1000BaseX
  • IEEE 802.1D-2004 for Spanning Tree Protocol
  • IEEE 802.1w for Rapid Spanning Tree Protocol
  • IEEE 802.1p for Class of Service
  • IEEE 802.1Q for VLAN Tagging
  • IEEE 802.1X for authentication
  • IEEE 802.3ad for Port Trunk with LACP
  • IEEE 802.3x for flow control

Management

  • IPv4/IPv6
  • SNMP Inform
  • SNMPv1/v2c/v3
  • DHCP Server/Client
  • DHCP Option 66/67/82
  • BOOTP
  • TFTP
  • LLDP
  • RARP
  • HTTP
  • HTTPS
  • Telnet
  • Flow control
  • Back Pressure Flow Control
  • Port Mirror
  • Fiber check
  • Dying Gasp
  • SMTP
  • Syslog

MIB

  • MIB-II
  • Ethernet-like MIB
  • Bridge MIB
  • P-BRIDGE MIB
  • Q-BRIDGE MIB
  • RSTP MIB
  • RMON MIB Groups 1, 2, 3, 9

Filter

  • 802.1Q
  • GMRP
  • GVRP
  • IGMP v1/v2/v3
  • QinQ VLAN

Redundancy Protocols

  • Link Aggregation
  • MSTP
  • RSTP
  • STP
  • Turbo Chain
  • Turbo Ring v1/v2
  • V-ON
  • MRP

Security

  • RADIUS
  • TACACS+
  • SSH
  • Port Lock
  • Broadcast storm protection
  • MAB authentication
  • Sticky MAC
  • Access control list

Time Management

  • NTP Server/Client
  • SNTP
  • IEEE 1588v2 PTP (hardware-based)

Power Substation

  • IEC 61850 QoS
  • GOOSE Check

Industrial Protocols

  • EtherNet/IP
  • Modbus TCP

Unicast Routing

  • Static Route
  • RIPV1/V2
  • OSPF

Multicast Routing

  • DVMRP
  • PIM-DM

Routing Redundancy

  • VRRP

Priority Queues

  • 8

Max. No. of VLANs

  • 256

VLAN ID Range

  • VID 1 to 4094

IGMP Groups

  • 4096

MAC Table Size

  • 16 K

Packet Buffer Size

  • 12 Mbits

Jumbo Frame Size

  • 9.6 KB

Console Port

  • RS-232 (RJ45)

Storage Port

  • USB Type A

Input Voltage

  • With PWR-HV-P48 installed:
    110/220 VDC/VAC for the switch system
    48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)
  • With PWR-LV-P48 installed:
    24/48 VDC for the switch system
    48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices)
  • With PWR-HV-NP installed:
    110/220 VDC/VAC for the switch system
  • With PWR-LV-NP installed:
    24/48 VDC for the switch system

Operating Voltage

  • With PWR-HV-P48 installed:
    88 to 300 VDC, 90 to 264 VAC for the switch system
    46 to 57 VDC for PoE systems
  • With PWR-LV-P48 installed:
    18 to 72 VDC for the switch system
    46 to 57 VDC for PoE systems
  • With PWR-HV-NP installed:
    88 to 300 VDC, 90 to 264 VAC for the switch system
  • With PWR-LV-NP installed:
    18 to 72 VDC for the switch system

Input Current

  • With PWR-HV-P48 installed:
    PWR input current (switch system)
    Max. 0.11 A @ 110 VDC
    Max. 0.06 A @ 220 VDC
    Max. 0.29 A @ 110 VAC
    Max. 0.18 A @ 220 VAC
    EPS input current (PoE system)
    Max. 0.53 A @ 48 VDC
    (excluding power consumption of PoE devices)
  • With PWR-LV-P48 installed:
    PWR input current (switch system)
    Max. 0.53 A @ 24 VDC
    Max. 0.28 A @ 48 VDC
    EPS input current (PoE system)
    Max. 0.53 A @ 48 VDC
    (excluding power consumption of PoE devices)
  • With PWR-HV-NP installed:
    PWR input current (switch system)
    Max. 0.11 A @ 110 VDC
    Max. 0.06 A @ 220 VDC
    Max. 0.29 A @ 110 VAC
    Max. 0.18 A @ 220 VAC
  • With PWR-LV-NP installed:
    PWR input current (switch system)
    Max. 0.53 A @ 24 VDC
    Max. 0.28 A @ 48 VDC

IP Rating

  • IP30

Dimensions

  • 443 x 44 x 280 mm (17.44 x 1.73 x 11.02 in)

Weight

  • 3080 g (6.8 lb)

Installation

  • 19-inch rack mounting

Operating Temperature

  • -40 to 85°C (-40 to 185°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Power Substation

  • IEC 61850-3 Edition 2 Class 2 (EMC)
  • IEEE 1613

Railway

  • EN 50121-4

Safety

  • UL 62368-1
  • IEC 62368-1

Time

  • 449,542 hrs

Standards

  • Telcordia (Bellcore)
  • GB

Warranty Period

  • 5 years
