Introduction

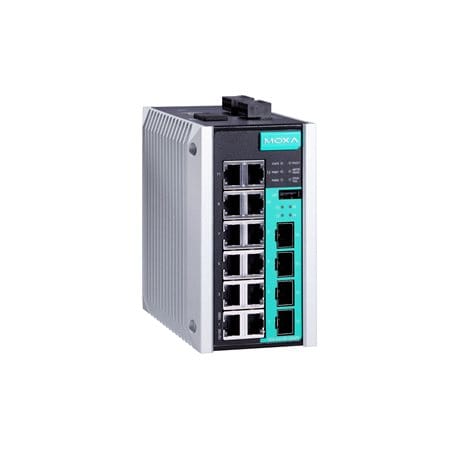

The EDS-G516E Series is equipped with 16 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G500E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable network backbone.

Additional Features and Benefits

• Command line interface (CLI) for quickly configuring major managed functions
• DHCP Option 82 for IP address assignment with different policies
• Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade
• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
• Port Trunking for optimum bandwidth utilization
• RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1x, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security
• SNMPv1/v2c/v3 for different levels of network management
• RMON for proactive and efficient network monitoring
• Bandwidth management to prevent unpredictable network status
• Lock port function for blocking unauthorized access based on MAC address
• Port mirroring for online debugging
• Automatic warning by exception through email and relay output
