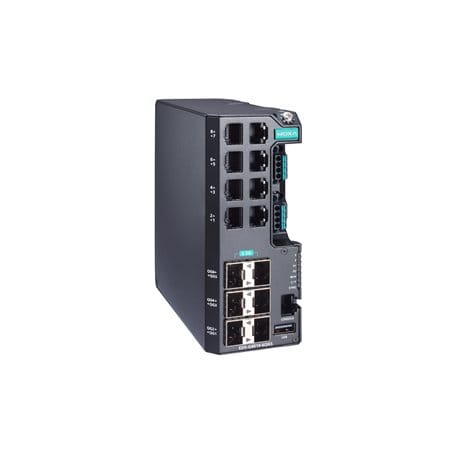

EDS-G4014 Series

Features and Benefits

  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  • Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy
  • Wide range of power input options for flexible deployment
  • Compact and flexible housing design to fit into confined spaces
  • Supports MXstudio for easy, visualized industrial network management
  • Increased bandwidth capabilities with fiber SFP slots supporting up to 2.5 Gbps
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • EDS-G4014-6QGS-LV
  • EDS-G4014-6QGS-HV
  • EDS-G4014-6QGS-LV-T
  • EDS-G4014-6QGS-HV-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy EDS-G4014 Series from APulsar Technologies, MOXA official distributor.

In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The EDS-G4014 Series is equipped with eight Gigabit Ethernet ports and six 2.5 Gbps fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission speed increases bandwidth for higher performance and can transfer large amounts of triple-play services across a network quickly.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-G4014 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.

Specifications

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)

  • 8
  • Auto MDI/MDI-X connection
  • Auto negotiation speed
  • Full/Half duplex mode

1000/2500BaseSFP Ports

  • 6

Standards

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3z for 1000BaseX
  • IEEE 802.3bz for 2.5GBaseX
  • IEEE 802.3x for flow control
  • IEEE 802.3ad for Port Trunk with LACP
  • IEEE 802.1Q for VLAN Tagging
  • IEEE 802.1D-2004 for Spanning Tree Protocol
  • IEEE 802.1w for Rapid Spanning Tree Protocol
  • IEEE 802.1p for Class of Service
  • IEEE 802.1X for authentication

Industrial Protocols

  • EtherNet/IP
  • Modbus TCP
  • PROFINET IO Device

Management

  • IPv4/IPv6
  • Flow control
  • Back Pressure Flow Control
  • DHCP Server/Client
  • ARP
  • RARP
  • LLDP
  • Port Mirroring (SPAN, RSPAN)
  • Linkup Delay
  • SMTP
  • SNMP Trap
  • SNMP Inform
  • SNMPv1/v2c/v3
  • RMON
  • TFTP
  • SFTP
  • HTTP
  • HTTPS
  • Telnet
  • Syslog
  • Private MIB
  • Fiber check

Filter

  • GMRP
  • GVRP
  • GARP
  • 802.1Q VLAN
  • IGMP Snooping v1/v2/v3
  • IGMP Querier

Redundancy Protocols

  • STP
  • RSTP
  • Turbo Ring v2
  • Turbo Chain
  • Ring Coupling
  • Dual-Homing
  • Link Aggregation
  • MRP
  • MSTP

Security

  • Broadcast storm protection
  • Rate Limit
  • Trust access control
  • Static Port Lock
  • MAC Sticky
  • HTTPS/SSL
  • SSH
  • RADIUS
  • TACACS+
  • Login and Password Policy
  • Access control list
  • DHCP Snooping

Time Management

  • SNTP
  • NTP Server/Client
  • NTP Authentication
  • IEEE 1588v2 PTP (hardware-based)
  • Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017

Protocols

  • IPv4/IPv6
  • TCP/IP
  • UDP
  • ICMP
  • ARP
  • RARP
  • TFTP
  • DNS
  • NTP Client
  • DHCP Server
  • DHCP Client
  • 802.1X
  • QoS
  • HTTPS
  • HTTP
  • Telnet
  • SMTP
  • SNMPv1/v2c/v3
  • RMON
  • Syslog

MIB

  • P-BRIDGE MIB
  • Q-BRIDGE MIB
  • IEEE8021-SPANNING-TREE-MIB
  • IEEE8021-PAE-MIB
  • IEEE8023-LAG-MIB
  • LLDP-EXT-DOT1-MIB
  • LLDP-EXT-DOT3-MIB
  • SNMPv2-MIB
  • RMON MIB Groups 1, 2, 3, 9

MAC Table Size

  • 16 K

Jumbo Frame Size

  • 9.216 KB

Max. No. of VLANs

  • 256

VLAN ID Range

  • VID 1 to 4094

IGMP Groups

  • 512

Priority Queues

  • 4

Packet Buffer Size

  • 1 MB

LED Indicators

  • PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

Console Port

  • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Connector

  • USB Type A (Reserved)

Alarm Contact Channels

  • 1, Relay output with current carrying capacity of 1 A @ 24 VDC

Digital Input Channels

  • 1

Digital Inputs

  • +13 to +30 V for state 1
  • -30 to +3 V for state 0
  • Max. input current: 8 mA

Buttons

  • Reset button

DIP Switches

  • Turbo Ring, Master, Coupler, Reserve

Connector

  • 2 removable 4-contact terminal block(s)

Pre-installed Power Module

  • -LV/-LV-T models: PWR-100-LV
  • -HV/-HV-T models: PWR-105-HV-I

Note

  • The EDS-G4014 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
  • For example:
    EDS-G4014-6QGS-T + PWR-100-LV = EDS-G4014-6QGS-LV-T
    EDS-G4014-6QGS-T + PWR-105-HV-I = EDS-G4014-6QGS-HV-T
  • If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4014-6QGS-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-G4014-6QGS-HV-T.

Input Voltage

  • -LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
  • -HV/-HV-T models: 110/220 VDC/VAC, Single input

Operating Voltage

  • -LV/-LV-T models: 9.6 to 60 VDC
  • -HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC

Input Current

  • -LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
  • -HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A

Power Consumption (Max.)

  • EDS-G4014-6QGS-LV(-T) models: 14.91 W
  • EDS-G4014-6QGS-HV(-T) models: 17.32 W

Overload Current Protection

  • Supported

Reverse Polarity Protection

  • Supported

IP Rating

  • IP40

Dimensions

  • 55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)

Weight

  • 846 g (1.87 lb)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)

Housing

  • Metal

Operating Temperature

  • Standard Models: -10 to 60°C (14 to 140°F)
  • Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35
  • EN 61000-6-2/-6-4

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Industrial Cybersecurity

  • IEC 62443-4-2 Security Level 2

Safety

  • UL 61010-2-201
  • EN 62368-1 (LVD)

Maritime

  • -LV/-LV-T models: DNV, ABS, NK, LR

Vibration

  • IEC 60068-2-6

Shock

  • IEC 60068-2-27

Freefall

  • IEC 60068-2-32

Railway

  • EN 50121-4

Traffic Control

  • NEMA TS2

Power Substation

  • IEC 61850-3
  • IEEE 1613 Class 1

Hazardous Locations

  • -LV/-LV-T models:
  • ATEX
  • IECEx
  • Class I Division 2

Time

  • EDS-G4014-6QGS-LV/LV-T models: 994,797 hrs
  • EDS-G4014-6QGS-HV/HV-T models: 487,613 hrs

Warranty Period

  • 5 years
