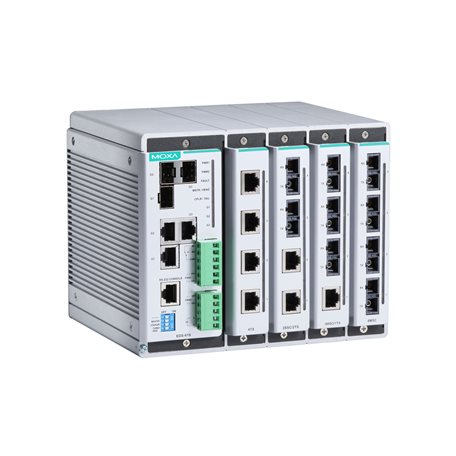

EDS-619 Series

Features and Benefits

  • Up to 19 optical fiber connections in a compact switch
  • Modular design with 4-port copper/fiber combinations
  • Hot-swappable media modules for continuous operation
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)  , and STP/RSTP/MSTP for network redundancy
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • EDS-619
  • EDS-619-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy EDS-619 Series from APulsar Technologies, MOXA official distributor.

In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The versatile modular design of the compact EDS-619 Series allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-619’s modular design lets you install up to 3 Gigabit Ethernet ports and 16 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, RSTP/STP, and MSTP help increase the reliability and availability of your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. The EDS-619 Series supports several reliable and intelligent functions, including EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions
  • SNMP Inform for ensuring reliable event management
  • LLDP for automated topology discovery
  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
  • Compatible with PROFINET protocol for transparent data transmission
  • Port mirroring for online debugging
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • QoS (IEEE 802.1p/1Q and ToS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Bandwidth management to prevent unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address
  • Automatic warning by exception through email and relay output

Specifications

Input/Output Interface

Digital Inputs

  • +13 to +30 V for state 1
  • -30 to +3 V for state 0
  • Max. input current: 8 mA

Alarm Contact Channels

  • Relay output with current carrying capacity of 1 A @ 24 VDC

Module

  • 4 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX

Standards

  • IEEE 802.1D-2004 for Spanning Tree Protocol
  • IEEE 802.1p for Class of Service
  • IEEE 802.1Q for VLAN Tagging
  • IEEE 802.1s for Multiple Spanning Tree Protocol
  • IEEE 802.1w for Rapid Spanning Tree Protocol
  • IEEE 802.1X for authentication
  • IEEE 802.3 for 10BaseT
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3ad for Port Trunk with LACP
  • IEEE 802.3u for 100BaseT(X) and 100BaseFX
  • IEEE 802.3x for flow control

Filter

  • GMRP
  • GVRP
  • IGMP v1/v2
  • Port-based VLAN

Industrial Protocols

  • EtherNet/IP
  • Modbus TCP

Management

  • Back Pressure Flow Control
  • BOOTP
  • DDM
  • DHCP Option 66/67/82
  • DHCP Server/Client
  • Flow control
  • IPv4/IPv6
  • LLDP
  • Port Mirror
  • RARP
  • RMON
  • SMTP
  • SNMP Inform
  • SNMPv1/v2c/v3
  • Syslog
  • Telnet
  • TFTP

MIB

  • Bridge MIB
  • Ethernet-like MIB
  • MIB-II
  • P-BRIDGE MIB
  • Q-BRIDGE MIB
  • RMON MIB Groups 1, 2, 3, 9
  • RSTP MIB

Redundancy Protocols

  • Link Aggregation
  • MSTP
  • RSTP
  • STP
  • Turbo Chain
  • Turbo Ring v1/v2

Security

  • Broadcast storm protection
  • HTTPS/SSL
  • Port Lock
  • RADIUS
  • SSH
  • TACACS+

Time Management

  • NTP Server/Client
  • SNTP

IGMP Groups

  • 256

MAC Table Size

  • 8 K

Max. No. of VLANs

  • 64

Packet Buffer Size

  • 1 Mbits

Priority Queues

  • 4

VLAN ID Range

  • VID 1 to 4094

LED Indicators

  • PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, G1/G2/G3

Console Port

  • RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

Ethernet Interface

  • Turbo Ring, Master, Coupler, Reserve

Connection

  • 1 removable 6-contact terminal block(s)

Input Voltage

  • 12/24/48 VDC
  • Redundant dual inputs

Input Current

  • 2.6 A @ 12 VDC
    Note: These are the input current ratings for the device with the maximum number of modules installed.

Power Consumption (Max.)

  • 31.2 W @ 12 VDC
    Note: These are the power consumption ratings for the device with the maximum number of modules installed.

Overload Current Protection

  • Supported

Reverse Polarity Protection

  • Supported

IP Rating

  • IP30

Dimensions

  • 185 x 151 x 157.4 mm (7.28 x 5.95 x 6.20 in)

Weight

  • 2,509 g (5.53 lb)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)

Operating Temperature

  • EDS-619: 0 to 60°C (32 to 140°F)
  • EDS-619-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Freefall

  • IEC 60068-2-32

EMC

  • EN 55032/35
  • EN 61000-6-2/-6-4

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Hazardous Locations

  • ATEX
  • Class I Division 2

Maritime

  • ABS
  • DNV
  • LR
  • NK

Railway

  • EN 50121-4

Safety

  • UL 508

Shock

  • IEC 60068-2-27

Traffic Control

  • NEMA TS2

Vibration

  • IEC 60068-2-6

Time

  • 475,816 hrs

Standards

  • Telcordia (Bellcore), GB

Warranty Period

  • 5 years
