Click “WhatsApp Us” or “Get a Quote” above to buy EDS-2005-ELP from APulsar Technologies, MOXA official distributor.
In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

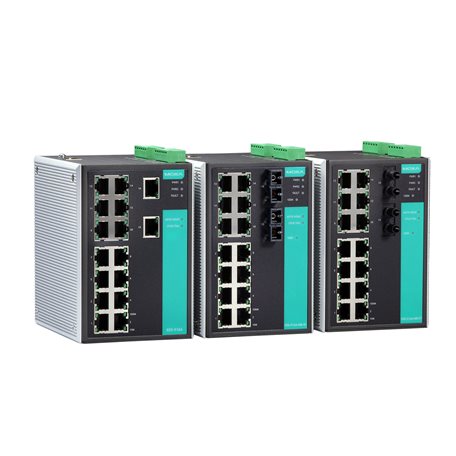

The EDS-516A standalone 16-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-516A switches suitable for any harsh industrial environment.
| 100BaseFX | |||||
| Multi-Mode | Single-Mode (40 km) | Single-Mode (80 km) | |||
| Fiber Cable Type | OM1 | 50/125 µm | G.652 | G.652 | |
| 800 MHz x km | |||||
| Typical Distance | 4 km | 5 km | 40 km | 80 km | |
| Wavelength | Typical (nm) | 1300 | 1310 | 1550 | |
| TX Range (nm) | 1260 to 1360 | 1280 to 1340 | 1530 to 1570 | ||
| RX Range (nm) | 1100 to 1600 | 1100 to 1600 | 1100 to 1600 | ||
| Optical Power | TX Range (dBm) | -10 to -20 | 0 to -5 | 0 to -5 | |
| RX Range (dBm) | -3 to -32 | -3 to -34 | -3 to -34 | ||
| Link Budget (dB) | 12 | 29 | 29 | ||
| Dispersion Penalty (dB) | 3 | 1 | 1 | ||
| Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB). |
|||||
