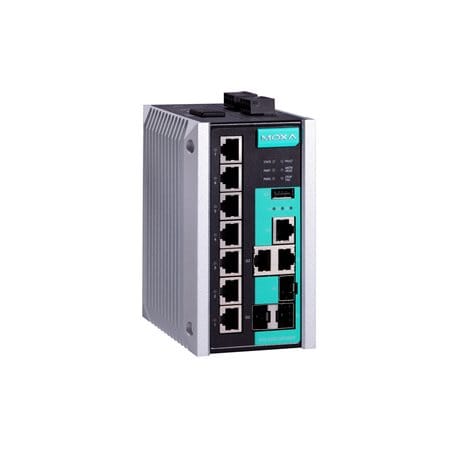

EDS-510E Series

Features and Benefits

  • 3 Gigabit Ethernet ports for redundant ring or uplink solutions
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
  • RADIUS, TACACS+, SNMPv3, IEEE 802.1x, HTTPS, SSH, and sticky MAC address to enhance network security
  • Security features based on IEC 62443
  • EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring3
  • Supports MXstudio for easy, visualized industrial network management
  • V-ON™ ensures millisecond-level multicast data and video network recovery

Models

  • EDS-510E-3GTXSFP
  • EDS-510E-3GTXSFP-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy EDS-510E from APulsar Technologies, MOXA official distributor.

In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The EDS-510E Gigabit managed Ethernet switches are designed to meet rigorous mission-critical applications, such as factory automation, ITS, and process control. The 3 Gigabit Ethernet ports allow great flexibility to build up a Gigabit redundant Turbo Ring and a Gigabit uplink. The switches have USB interfaces for switch configuration, system file backup, and firmware upgrade, making them easier to manage.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions
  • DHCP Option 82 for IP address assignment with different policies
  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
  • IGMP snooping and GMRP for filtering multicast traffic
  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
  • Configurable by web browser, Telnet/USB console, CLI, MXconfig, and ABC-02-USB automatic backup configurator
  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
  • Port Trunking for optimum bandwidth utilization
  • SNMPv1/v2c/v3 for different levels of network management
  • RMON for proactive and efficient network monitoring
  • Bandwidth management to prevent unpredictable network status
  • Lock port function for blocking unauthorized access based on MAC address
  • Automatic warning by exception through email and relay output

Specifications

Input/Output Interface

Alarm Contact Channels

  • 1
  • Relay output with current carrying capacity of 1 A @ 24 VDC

Buttons

  • Reset button

Digital Input Channels

  • 1

Digital Inputs

  • +13 to +30 V for state 1
  • -30 to +3 V for state 0
  • Max. input current: 8 mA

10/100BaseT(X) Ports (RJ45 connector)

  • 7
  • Auto negotiation speed
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

  • 3

10/100/1000BaseT(X) Ports (RJ45 connector)

  • Auto negotiation speed
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection

Standards

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X) and 100BaseFX
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
  • IEEE 802.3x for flow control
  • IEEE 802.1D-2004 for Spanning Tree Protocol
  • IEEE 802.1w for Rapid Spanning Tree Protocol
  • IEEE 802.1s for Multiple Spanning Tree Protocol
  • IEEE 802.1p for Class of Service
  • IEEE 802.1Q for VLAN Tagging
  • IEEE 802.1X for authentication
  • IEEE 802.3ad for Port Trunk with LACP

Filter

  • 802.1Q VLAN
  • BPDU Guard
  • BPDU Filter
  • GMRP
  • GVRP
  • IGMP v1/v2/v3
  • Port-based VLAN

Industrial Protocols

  • EtherNet/IP
  • Modbus TCP
  • PROFINET IO Device

Management

  • LLDP
  • Back Pressure Flow Control
  • BOOTP
  • Port Mirror
  • DHCP Option 66/67/82
  • DHCP Server/Client
  • Fiber check
  • Flow control
  • IPv4/IPv6
  • RARP
  • RMON
  • SCP
  • SMTP
  • SNMP Inform
  • SNMPv1/v2c/v3
  • Syslog
  • Telnet
  • TFTP

MIB

  • Ethernet-like MIB
  • MIB-II
  • Bridge MIB
  • P-BRIDGE MIB
  • Q-BRIDGE MIB
  • RMON MIB Groups 1, 2, 3, 9
  • RSTP MIB

Redundancy Protocols

  • Link Aggregation
  • MRP
  • MSTP
  • RSTP
  • STP
  • Turbo Chain
  • Turbo Ring v1/v2

Security

  • Broadcast storm protection
  • HTTPS/SSL
  • TACACS+
  • SNMPv3
  • Sticky MAC
  • NTP authentication
  • Port Lock
  • RADIUS
  • SSH
  • SMTP with TLS

Time Management

  • NTP Server/Client
  • SNTP

IGMP Groups

  • 2048

MAC Table Size

  • 8 K

Max. No. of VLANs

  • 64

Packet Buffer Size

  • 1 Mbits

Priority Queues

  • 4

VLAN ID Range

  • VID 1 to 4094

Storage Port

  • USB Type A

LED Indicators

  • PWR1, PWR2, STATE, FAULT, 10/100M (TP port), Gigabit combo port, MSTR/HEAD, CPLR/TAIL

Console Port

  • USB-serial console (Type B connector)

DIP Switches

  • Turbo Ring, Master, Coupler, Reserve

Connection

  • 2 removable 4-contact terminal block(s)

Input Current

  • 0.68 A @ 24 VDC

Input Voltage

  • 12/24/48/-48 VDC
  • Redundant dual inputs

Operating Voltage

  • 9.6 to 60 VDC

Overload Current Protection

  • Supported

Reverse Polarity Protection

  • Supported

Housing

  • Metal

IP Rating

  • IP30

Dimensions

  • 79.2 x 135 x 116 mm (3.12 x 5.31 x 4.57 in)

Weight

  • 1263 g (2.78 lb)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)

Operating Temperature

  • EDS-510E-3GTXSFP: -10 to 60°C (14 to 140°F)
  • EDS-510E-3GTXSFP-T: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Safety

  • UL 508

EMC

  • EN 61000-6-2/-6-4

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Hazardous Locations

  • ATEX
  • Class I Division 2

Power Substation

  • IEC 61850-3
  • IEEE 1613

Railway

  • EN 50121-4

Traffic Control

  • NEMA TS2

Vibration

  • IEC 60068-2-6

Shock

  • IEC 60068-2-27

Freefall

  • IEC 60068-2-32

Maritime

  • LR
  • ABS
  • NK
  • DNV

Time

  • 725,532 hrs

Standards

  • Telcordia (Bellcore), GB

Warranty Period

  • 5 years
