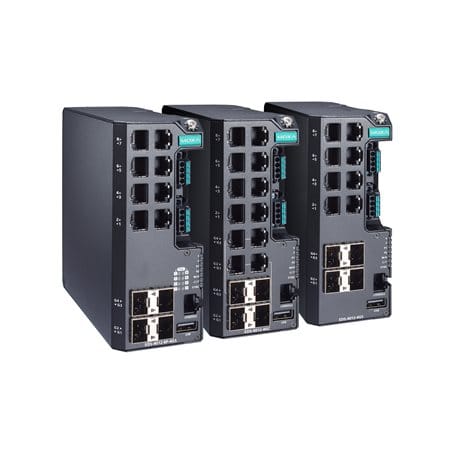

EDS-4012 Series

Features and Benefits

  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  • Support for IEEE 802.3bt PoE for up to 90 W output per port
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and RSTP/STP for network redundancyt
  • Wide range of power input options for flexible deployment
  • Compact and flexible housing design to fit into confined spaces
  • Supports MXstudio for easy, visualized industrial network management
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • EDS-4012-4GC-HV-T
  • EDS-4012-8P-4GS-LVA
  • EDS-4012-8P-4GS-LVB
  • EDS-4012-4GC-LV-T
  • EDS-4012-4GS-LV-T
  • EDS-4012-4GS-LV
  • EDS-4012-4GS-HV
  • EDS-4012-4GC-LV
  • EDS-4012-4GC-HV
  • EDS-4012-8P-4GS-LVB-T
  • EDS-4012-4GS-HV-T
  • EDS-4012-8P-4GS-LVA-T

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy EDS-4012 Series from APulsar Technologies, MOXA official distributor.

Purchase from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The EDS-4012 Series is a range of 12-port managed Fast Ethernet switches with the option for four 1 Gbps fiber-optic uplink ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.

The EDS-4012 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

  • EDS-4012-4GS-LV/-HV/-T models: 8
  • EDS-4012-4GC-LV/-HV/-T models: 8
  • Auto negotiation speed
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection

PoE Ports (10/100BaseT(X), RJ45 connector)

  • EDS-4012-8P-4GS-LVA/-LVB/-T models: 8

100/1000BaseSFP Ports

  • EDS-4012-4GS-LV/-HV/-T models: 4
  • EDS-4012-8P-4GS-LVA/-VB/-T models: 4

Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)

  • EDS-4012-4GC-LV/-HV/-T models: 4

Standards

  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X) and 100BaseFX
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3z for 1000BaseX
  • IEEE 802.3x for flow control
  • IEEE 802.3ad for Port Trunk with LACP
  • IEEE 802.1Q for VLAN Tagging
  • IEEE 802.1D-2004 for Spanning Tree Protocol
  • IEEE 802.1w for Rapid Spanning Tree Protocol
  • IEEE 802.1p for Class of Service
  • IEEE 802.1X for authentication

Industrial Protocols

  • EtherNet/IP
  • Modbus TCP
  • PROFINET IO Device

Management

  • IPv4/IPv6
  • Flow control
  • Back Pressure Flow Control
  • DHCP Server/Client
  • ARP
  • RARP
  • LLDP
  • Fiber check
  • Port Mirroring (SPAN, RSPAN)
  • Linkup Delay
  • SMTP
  • SNMP Trap
  • SNMP Inform
  • SNMPv1/v2c/v3
  • RMON
  • TFTP
  • SFTP
  • HTTP
  • HTTPS
  • Telnet
  • Syslog
  • Private MIB

Filter

  • GMRP
  • GVRP
  • GARP
  • 802.1Q VLAN
  • IGMP Snooping v1/v2/v3
  • IGMP Querier

Redundancy Protocols

  • STP
  • RSTP
  • Turbo Ring v2
  • Turbo Chain
  • Ring Coupling
  • Dual-Homing
  • Link Aggregation
  • MRP
  • MSTP

Security

  • Broadcast storm protection
  • Rate Limit
  • Trust access control
  • Static Port Lock
  • MAC Sticky
  • HTTPS/SSL
  • SSH
  • RADIUS
  • DHCP Snooping
  • TACACS+
  • Login and Password Policy
  • Access control list

Time Management

  • SNTP
  • NTP Server/Client
  • NTP Authentication
  • IEEE 1588v2 PTP (hardware-based)
  • Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017

Protocols

  • IPv4/IPv6
  • TCP/IP
  • UDP
  • ICMP
  • ARP
  • RARP
  • TFTP
  • DNS
  • NTP Client
  • DHCP Server
  • DHCP Client
  • 802.1X
  • QoS
  • HTTPS
  • HTTP
  • Telnet
  • SMTP
  • SNMPv1/v2c/v3
  • RMON
  • Syslog

MIB

  • P-BRIDGE MIB
  • Q-BRIDGE MIB
  • IEEE8021-SPANNING-TREE-MIB
  • IEEE8021-PAE-MIB
  • IEEE8023-LAG-MIB
  • LLDP-EXT-DOT1-MIB
  • LLDP-EXT-DOT3-MIB
  • SNMPv2-MIB
  • RMON MIB Groups 1, 2, 3, 9

MAC Table Size

  • 16 K

Jumbo Frame Size

  • 9.216 KB

Max. No. of VLANs

  • 256

VLAN ID Range

  • VID 1 to 4094

IGMP Groups

  • 512

Priority Queues

  • 4

Packet Buffer Size

  • 1 MB

LED Indicators

  • PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

Console Port

  • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Connector

  • USB Type A (Reserved)

Alarm Contact Channels

  • 1, Relay output with current carrying capacity of 1 A @ 24 VDC

Digital Input Channels

  • 1

Digital Inputs

  • +13 to +30 V for state 1
  • -30 to +3 V for state 0
  • Max. input current: 8 mA

Buttons

  • Reset button

DIP Switches

  • Turbo Ring, Master, Coupler, Reserve

Connection

  • 2 removable 4-contact terminal block(s)

Pre-installed Power Module

  • -LV/-LV-T models: PWR-100–LV
  • -HV/-HV-T models: PWR-105-HV-I
  • -LVA/-LVA-T models: PWR-101-LV-BP-I
  • -LVB/-LVB-T models: PWR-103-LV-VB-I

Note

  • The EDS-4012 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
  • For example:
  • EDS-4012-4GS-T + PWR-100–LV = EDS-4012-4GS-LV-T
  • EDS-4012-4GS-T + PWR-105-HV-I = EDS-4012-4GS-HV-T
  • If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4012-4GS–LV-T
    with the PWR-105–HV-I, refer to the specifications of the EDS-4012–4GS-HV-T.

Input Voltage

  • -LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
  • -HV/-HV-T models: 110/220 VDC/VAC, Single input
  • -LVA/-LVA-T models: 48 VDC, Redundant dual inputs
  • -LVB/-LVB-T models: 12/24/48 VDC, Redundant dual inputs

Operating Voltage

  • -LV/-LV-T models: 9.6 to 60 VDC
  • -HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
  • -LVA/-LVA-T models: 44 to 57 VDC (>52 VDC for PoE+ output recommended)
  • -LVB/-LVB-T models: 12 to 57 VDC (>52 VDC for PoE+ output recommended)

Input Current

  • -LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
  • -HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
  • -LVA/-LVA-T models: 48 VDC, 5.42 A
  • -LVB/-LVB-T models: 12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A

Power Consumption (Max.)

  • EDS-4012-4GS-LV/-T models: 10.52 W
  • EDS-4012-4GS-HV-/T models: 12.22 W
  • EDS-4012-4GC-LV/-T models: 10.7 W
  • EDS-4012-4GC-HV/-T models: 13.35 W
  • EDS-4012-8P-4GS-LVA/-T models:
    Without PoE: 13.34 W
    With PoE: Max. 240 W for total PD power consumption @ 48 VDC input
  • EDS-4012-8P-4GS-LVB/-T models:
    Without PoE: 15.32 W
    With PoE:
    Max. 180 W for total PD power consumption @ 48 VDC input
    Max. 150 W for total PD power consumption @ 24 VDC input (Max. 120 W for -T model)
    Max. 62 W for total PD consumption @ 12 VDC input

Max. PoE Power Output per Port

  • 90 W

Overload Current Protection

  • Supported

Reverse Polarity Protection

  • Supported

IP Rating

  • IP40

Dimensions

  • 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in)

Weight

  • 827 g (1.82 lb)

Installation

  • DIN-rail mounting
  • Wall mounting (with optional kit)

Housing

  • Metal

Operating Temperature

  • Standard Models: -10 to 60°C (14 to 140°F)
  • Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

Industrial Cybersecurity

  • IEC 62443-4-2 Security Level 2

Safety

  • UL 61010-2-201
  • EN 62368-1 (LVD)

EMC

  • EN 55032/35
  • EN 61000-6-2/-6-4

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF

Maritime

  • -LV/-LV-T, PoE/PoE-T models: DNV, ABS, NK, LR

Vibration

  • IEC 60068-2-6

Shock

  • IEC 60068-2-27

Freefall

  • IEC 60068-2-32

Railway

  • EN 50121-4

Traffic Control

  • NEMA TS2

Power Substation

  • IEC 61850-3
  • IEEE 1613 Class 1

Hazardous Locations

  • -LV/-LV-T models:
  • ATEX
  • IECEx
  • Class I Division 2

Time

  • EDS-4012-4GC-LV/-T models: 1,036,336 hrs
  • EDS-4012-4GC-HV/-T models: 497,392 hrs
  • EDS-4012-4GS-LV/-T models: 874,838 hrs
  • EDS-4012-4GS-HV/-T models: 456,870 hrs
  • EDS-4012-8P-4GS-LVA/-T models: 799,780 hrs
  • EDS-4012-8P-4GS-LVB/-T models: 759,924 hrs

Standards

  • Telcordia Standard SR-332

Warranty Period

  • 5 years
