IM-G7000A Module Series

Features and Benefits

Full Gigabit Ethernet ports
IEEE 802.3af/at, PoE+ standards (PoE model)

Get Quote Get Quote

Download Datasheet Download Datasheet

Models

IM-G7000A-4GSFP
IM-G7000A-4GTX
IM-G7000A-4PoE

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy IM-G7000A Module Series from APulsar Technologies, MOXA official distributor.

In stock. Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

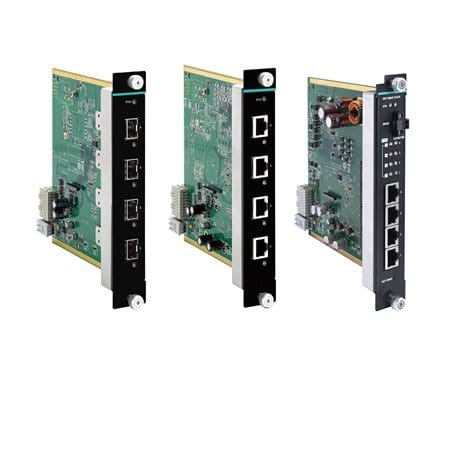

The IM-G7000A Module Series includes 4G-port Ethernet interface modules designed for ICS-G7748A, ICS-G7750A, ICS-G7752A, ICS-G7848A, ICS-G7850A, and ICS-G7852A modular managed switches. In particular, the IM-G7000A-4PoEA module is a PoE-enabled interface module that centralizes the power supply and provides up to 36 watts of power per port, reducing the effort required to provide power to connected devices.

Specifications

Ethernet Interface

10/100/1000BaseT(X) Ports (RJ45 connector)

IM-G7000A-4GTX: 4
IM-G7000A-4GTX: Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

100/1000BaseSFP Ports

IM-G7000A-4GSFP: 4

PoE Ports (10/100/1000BaseT(X), RJ45 connector)

IM-G7000A-4PoE: 4, Compliant with IEEE 802.3af/at high power mode up to 36 W
IM-G7000A-4PoE: Auto negotiation speed

LED Interface

LED Indicators

State
Hot-swap
10/100/1000 for TP port
100/1000 for fiber port
PoE and EPS for PoE module

Power Parameters

Power Consumption

IM-G7000A-4GSFP: 1.32 W (max.)
IM-G7000A-4GTX: 3.47 W (max.)
IM-G7000A-4PoE: 5.14 W (max.)

Physical Characteristic

Dimensions

28.8 x 174.7 x 166.8 mm (1.13 x 6.88 x 6.57 in)

Weight

220 g (0.49 lb)

MTBF

Time

IM-G7000A-4GTX: 1,569,520 hrs
IM-G7000A-4GSFP: 1,544,084 hrs
IM-G7000A-4PoE: 394,348 hrs

Standards

Telcordia (Bellcore)
GB

Warranty Period

5 years

Warranty

Warranty Period

5 years
