MOXA CSM-G200 Series - Ethernet-to-fiber Media Converters

CSM-G200 Series

Features and Benefits

LFP (Link Fault Pass-Through) and FEF (Far End Fault)
Two different operation modes: store-and-forward and pass-through
Auto-negotiation
Plug and play
Hot-swappable
Supports 10 KB jumbo frames

Get Quote Get Quote

Download Datasheet Download Datasheet

Models

CSM-G200-1221

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy CSM-G200 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

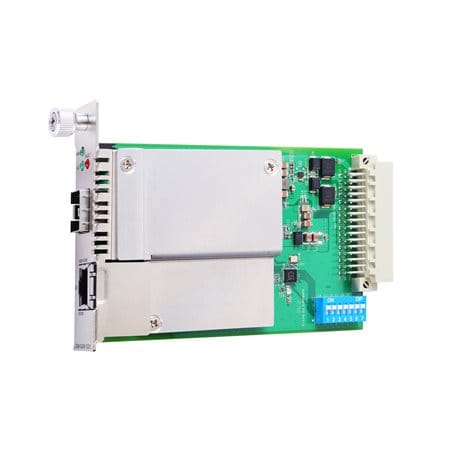

The CSM-G200 slide-in Ethernet-to-fiber media converters are designed for the NRack System™. The module provides media conversion from 10/100/1000BaseT(X) to 100/1000BaseFX (SFP connector), and can be installed in any NRack System™ chassis.

Specifications

Ethernet Interface

100/1000BaseSFP Ports

10/100/1000BaseT(X) Ports (RJ45 connector)

Jumbo Frame Size

10 KB

Power Parameters

Input Current

185 mA @ 12 VDC

Input Voltage

12 VDC

Overload Current Protection

Supported

Physical Characteristics

Dimensions

86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)

Weight

Product only: 140 g (0.31 lb)

Environmental Limits

Operating Temperature

0 to 55°C (32 to 131°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF: 30 A/m

Environmental Testing

IEC 60068-2-1
IEC 60068-2-14
IEC 60068-2-2
IEC 60068-2-3

Vibration

IEC 60068-2-6

MTBF

Time

1,579,447 hrs

Standards

MIL-HDBK-217F

Warranty

Warranty Period

5 years
