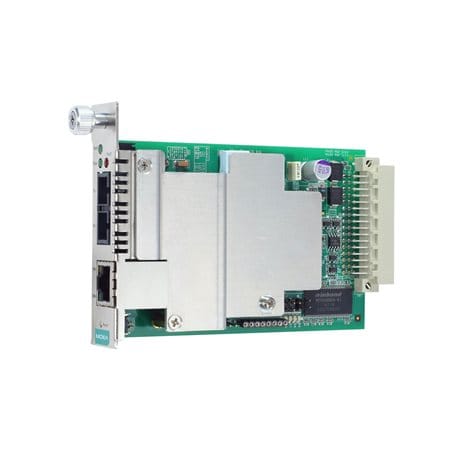

The CSM-400 Series consists of slide-in Ethernet-to-fiber managed media converters for the NRack System™. The modules provide media conversion from 10/100BaseT(X) to 100BaseFX (with SC/ST connectors), and can be installed in any NRack System™ chassis. The CSM-400 modules support LFP and FEF for easily tracing network link failures, and support store-and-forward and pass-through modes, 802.3AM OAM for remote management and monitoring, as well as WDM-type fiber modules to reduce fiber cable cost.
| 100BaseFX | 100 BaseFX WDM-A | 100 BaseFX WDM-B | ||||
| Multi-Mode | Single-Mode | |||||
| Fiber Cable Type | OM1 | 50/125 µm | G.652 | |||
| 800 MHz x km | ||||||
| Typical Distance | 4 km | 5 km | 40 km | 20 km | 20 km | |
| Wavelength | Typical (nm) | 1300 | 1310 | 1310/1550 | 1550/1310 | |
| TX Range (nm) | 1260 to 1360 | 1280 to 1340 | 1280 to 1340 | 1480 to 1600 | ||
| RX Range (nm) | 1100 to 1600 | 1100 to 1600 | 1480 to 1600 | 1280 to 1340 | ||
| Optical Power | TX Range (dBm) | -10 to -20 | 0 to -5 | -5 to 15 | -5 to 15 | |
| RX Range (dBm) | -3 to -32 | -3 to -34 | -3 to -32 | -3 to -32 | ||
| Link Budget (dB) | 12 | 29 | 17 | 17 | ||
| Dispersion Penalty (dB) | 3 | 1 | 1 | 1 | ||
| Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB). |
||||||
