TRC-2190 Series

Features and Benefits

  • 19-inch chassis for rackmount use
  • 18 slots for high-density applications
  • Supports dual power inputs with redundancy
  • Fanless chassis design reduces servicing costs
  • SNMP/web console for easy management
  • -20 to 55°C operating temperature range
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

  • TRC-2190-AC
  • TRC-2190-DC-48V

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy TRC-2190 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

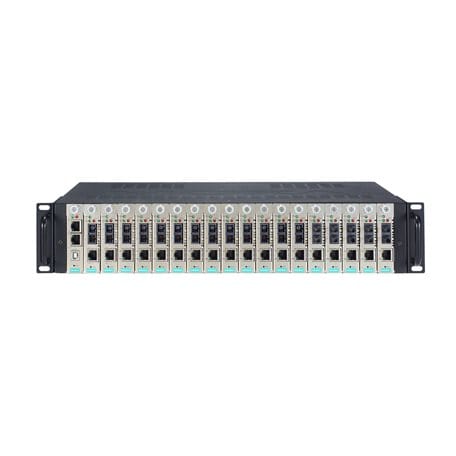

The TRC-2190 Series provides 18 slots for media converter modules from the CSM-400 Series of Ethernet-to-fiber management modules. It also supports SNMP/web console for remote management and monitoring. A TRC-2190 chassis comes with one AC or DC power input, with an optional redundant power expansion module available for greater reliability. The TRC-2190 Series’ power input module supports a fanless chassis design, as well as a -20 to 55°C operating temperature range.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

  • 2

Industrial Protocols

  • SNMPv1/v2c, SNMPv1/v2c Trap

Management

  • DHCP Client, IPv4/IPv6, SNMPv1/v2c, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console

MIB

  • MIB-II

Security

  • HTTPS/SSL, Local Account Accessibility, TACACS+, RADIUS, SSH

Time Management

  • NTP Client

Authentication

  • Local database (password only)
  • RADIUS
  • TACACS+

Encryption

  • HTTPS, AES-128, AES-256, RSA-1024, SHA-1, SHA-256, SHA-384

Security Protocols

  • SNMPv3
  • SSHv2
  • HTTPS (TLS 1.2)

Input Voltage

  • TRC-2190-AC: 110 to 240 VAC
  • TRC-2190-DC-48V: 48 VDC

No. of Power Inputs

  • 2

Overload Current Protection

  • Supported

Power Consumption

  • TRC-2190-AC: 1.5 A @ 100 to 240 VAC
  • TRC-2190-DC-48V: 3.2 A @ 48 VDC

IP Rating

  • IP30

Dimensions

  • 440 x 260 x 77 mm (18.6 x 11 x 3.3 in)

Weight

  • 5.2 g (11.4 lb)

Installation

  • 19-inch rack mounting

Operating Temperature

  • -20 to 55°C (-4 to 131°F)

Storage Temperature (package included)

  • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  • IEC 61000-4-8 PFMF

Environmental Testing

  • IEC 60068-2-1
  • IEC 60068-2-14
  • IEC 60068-2-2
  • IEC 60068-2-3

Safety

  • UL 62368-1, IEC 62368-1

Vibration

  • IEC 60068-2-6

Time

  • 1,055,112 hrs

Standards

  • Telcordia (Bellcore), GB

Warranty Period

  • 5
