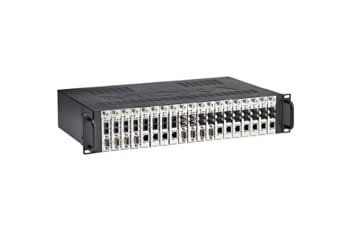

MOXA TRC-190 Series - 19-inch Rackmount Media Converter

TRC-190 Series

Features and Benefits

19-inch chassis for rackmount use
19 slots for high-density applications
Supports dual power inputs with redundancy
Fanless chassis design reduces servicing costs

Get Quote Get Quote

Download Datasheet Download Datasheet

Models

TRC-190-DC-48
TRC-190-AC

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy TRC-190 from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya, or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

The TRC-190 rackmount chassis provides 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF-142-RM Series of serial-to-fiber modules. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion AC or DC module available to enhance reliability. The PWR-190-AC and PWR-190-DC-48 power modules can be installed at the same time.

Specifications

Power Parameters

Input Voltage

TRC-190-AC: 110 to 240 VAC
TRC-190-DC-48: 48 VDC
Redundant dual inputs, Redundant dual inputs

No. of Power Inputs

Overload Current Protection

Supported

Power Consumption

TRC-190-AC: 1.5 A @ 100 to 240 VAC
TRC-190-DC-48: 3.2 A @ 36 to 53 VDC

Physical Characteristics

Dimensions

440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in)

Installation

19-inch rack mounting

IP Rating

IP30

Weight

5200 g (11.4 lb)

Environmental Limits

Ambient Relative Humidity

5 to 95% (non-condensing)

Operating Temperature

0 to 60°C (32 to 140°F)

Storage Temperature (package included)

-20 to 75°C (-4 to 167°F)

Standards and Certifications

EMC

EN 55032/35

EMI

CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC)
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF

Environmental Testing

IEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3

Safety

IEC 62368-1, UL 62368-1

Vibration

IEC 60068-2-6

MTBF

Time

1,055,112 hrs

Standards

Telcordia (Bellcore), GB

Warranty

Warranty Period

5 years
