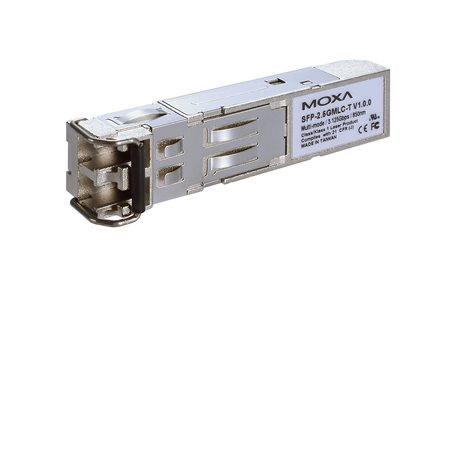

The SFP-2.5G Series 1-port 2.5 Gigabit Ethernet SFP modules are available as optional accessories for a wide range of Moxa switches.
| 2.5G Ethernet SFP | ||||||||
| SFP-M | SFP-S | SFP-LS | SFP-SLH | |||||
| Transceiver Type | Multi-mode | Single-mode | Single-mode | Single-mode | ||||
| Fiber Cable Type | OM1 | OM2 | OM3 | OM4 | G.652 | G.652 | G.652 | |
| Typical Distance | 170 m | 200 m | 550 m | 600 m | 5 km | 20 km | 45 km | |
| Wave-length | Typical (nm) | 850 | 1310 | 1310 | 1550 | |||
| TX Range (nm) | 830 to 860 | 1260 to 1360 | 1260 to 1360 | 1520 to 1580 | ||||
| RX Range (nm) | 830 to 860 | 1260 to 1360 | 1260 to 1360 | 1260 to 1600 | ||||
| Optical Power | TX Range (dBm) | -7.5 to -1 | -9 to -3 | -5 to 0 | -4 to +1 | |||
| Rx Range (dBm) | 0 to -13.5 | -3 to -15 | 0 to -16 | +1 to -19 | ||||
| Link Budget (dB) | 6 | 6 | 11 | 15 | ||||
| Dispersion Penalty (dB) | 2.5 | 2 | 1 | 1.5 | ||||
Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)
