NPort 5600-DT Series

Features and Benefits

  • 8 serial ports supporting RS-232/422/485
  • Compact desktop design
  • 10/100M auto-sensing Ethernet
  • Easy IP address configuration with LCD panel
  • Configure by Telnet, web browser, or Windows utility
  • Socket modes: TCP server, TCP client, UDP, Real COM
  • SNMP MIB-II for network management

Models

  • NPort 5650-8-DT-T
  • NPort 5650-8-DT
  • NPort 5650-8-DT-J
  • NPort 5610-8-DT-J
  • NPort 5650I-8-DT
  • NPort 5610-8-DT-T
  • NPort 5650I-8-DT-T
  • NPort 5610-8-DT

Overview

How to Buy

Click “WhatsApp Us” or “Get a Quote” above to buy NPort 5600-DT Series (NPort 5610-8-DT, NPort 5650-8-DT) from APulsar Technologies, MOXA official distributor.

Purchase walk-in from our office in Petaling Jaya. Or order online and enjoy fast delivery across Kuala Lumpur and the entire Malaysia.

Introduction

NPort 5600-DT device servers connect 8 serial devices to an Ethernet network with ease. They provide transparent connectivity and require only basic configuration. You can centralize management of your serial devices. You can also distribute management hosts across the network. The NPort 5600-8-DT device servers feature a compact form factor compared to MOXA’s 19-inch models. This makes them ideal for applications needing additional serial ports without mounting rails.

Convenient Design for RS-485 Applications

  • The NPort 5600-DT device servers offer selectable resistor options. These include 1 kilo-ohm and 150 kilo-ohm pull high/low resistors plus a 120-ohm terminator. Critical environments may require termination resistors to prevent serial signal reflection. When you use termination resistors, set the pull high/low resistors correctly. This prevents electrical signal corruption. No single set of resistor values works universally across all environments. NPort 5600-8-DT device servers use DIP switches for manual adjustment. Users can adjust termination and pull high/low resistor values for each serial port.

Convenient Power Inputs

  • The NPort 5600-DT device servers support dual power input options. You can use both power terminal blocks and power jacks for enhanced flexibility. Connect the terminal block directly to a DC power source. Alternatively, use the power jack to connect to an AC circuit through an adapter.

LED Indicators to Ease Your Maintenance Tasks

  • The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The NPort 5600’s LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.

Two Ethernet Ports for Convenient Cascade Wiring

  • The NPort 5600-8-DT device servers come with two Ethernet ports that can be used as Ethernet switch ports. Connect one port to the network or server, and the other port to another Ethernet device. The dual Ethernet ports eliminate the need to connect each device to a separate Ethernet switch, reducing wiring costs.

Appearance

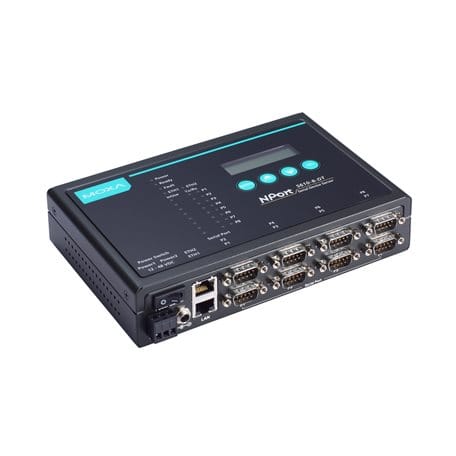

Moxa NPort 5600 Series 8-port serial device server with labeled interfaces including serial ports (RS-232/422/485), Ethernet switch, RS-232 console port, LCD panel, LED indicators, push buttons, power input, and reset button.

Specifications

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

  • 2

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Configuration Option

  • Serial Console
  • Telnet Console
  • Web Console (HTTP/HTTPS)
  • Windows Utility

Management

  • ARP
  • BOOTP
  • DHCP Client
  • DNS
  • HTTP
  • HTTPS
  • ICMP
  • IPv4
  • LLDP
  • Rtelnet
  • SMTP
  • SNMPv1/v2c
  • TCP/IP
  • Telnet
  • UDP

Filter

  • IGMP v1/v2

Windows Real COM Drivers

  • Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
  • Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
  • Windows Embedded CE 6.0/5.0, Windows XP Embedded

Linux Real TTY Drivers

  • Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

Fixed TTY Drivers

  • macOS Versions: 11.x, 10.12 to 10.15
  • SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Arm®-based Platform Support

  • Linux Kernel 5.x/4.x

Virtual Machine

  • VMWare ESXi (Windows 11/10)
  • VMware Fusion (Windows on macOS 10.12 to 11.x)
  • Parallels Desktop (Windows on macOS 10.12 to 11.x)

Android

  • Android 3.1.x and later

Time Management

  • SNTP

MIB

  • RFC1213, RFC1317

Authentication

Local database

Encryption

  • HTTPS
  • AES-128
  • RSA-1024
  • SHA-1
  • SHA-256

Security Protocols

  • HTTPS (TLS 1.2)
  • SNMPv3

Connector

  • 8-pin RJ45:
  • NPort 5610-8-DT-J/5650-8-DT-J
  • DB9 male:
  • NPort 5610-8-DT models/NPort 5650-8-DT models/NPort 5650I-8-DT models

No. of Ports

  • 8

Serial Standards

  • NPort 5610-8-DT Models: RS-232
  • NPort 5650-8-DT Models: RS-232/422/485

Baudrate

Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

Data Bits

  • 5, 6, 7, 8

Stop Bits

  • 1, 1.5, 2

Parity

  • None, Even, Odd, Space, Mark

Flow Control

  • RTS/CTS
  • DTR/DSR
  • XON/XOFF

Pull High/Low Resistor for RS-485

  • 1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

  • 120 ohms

RS-485 Data Direction Control

  •  Automatic Data Direction Control (ADDC)

Isolation

  • -I models: 2 kV

Surge

  • 0.5 kV

Console Port

  • RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

Input Current

  • NPort 5610-8-DT/NPort 5610-8-DT-J/
  • NPort 5610-8-DT-T:
  • 611 mA @ 12 VDC
  • NPort 5650-8-DT/NPort 5650-8-DT-J/
  • NPort 5650-8-DT-T:
  • 615 mA @ 12 VDC
  • NPort 5650I-8-DT/NPort 5650I-8-DT-T:
  • 1066 mA @ 12 VDC

No. of Power Inputs

  • 2

Input Voltage

  • 12 to 48 VDC

Reverse Polarity Protection

  • Supported

Source of Input Power

  • TB, Power input jack

Automatic Reboot Trigger

  • Built-in WDT

Alert Tools

  • Built-in buzzer and RTC (real-time clock)

Housing

  • Metal

Installation

  • Desktop
  • DIN-rail mounting (with optional kit)
  • Wall mounting (with optional kit)

Dimensions (with ears)

  • 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)

Dimensions (without ears)

  • 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)

Dimensions (with DIN-rail kit on bottom panel)

  • 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)

Weight

  • NPort 5610-8-DT: 1,570 g (3.46 lb)
  • NPort 5610-8-DT-J: 1,520 g (3.35 lb)
  • NPort 5610-8-DT-T: 1,320 g (2.91 lb)
  • NPort 5650-8-DT: 1,590 g (3.51 lb)
  • NPort 5650-8-DT-J: 1,540 g (3.40 lb)
  • NPort 5650-8-DT-T: 1,340 g (2.95 lb)
  • NPort 5650I-8-DT: 1,660 g (3.66 lb)
  • NPort 5650I-8-DT-T: 1,410 g (3.11 lb)

Interactive Interface

  • LCD panel display (standard temp. models only)
  • Push buttons for configuration (standard temp. models only)

Operating Temperature

  • Standard Models: 0 to 55°C (32 to 140°F)
  • Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature (package included)

  • -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A

EMS

  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
  • IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
  • IEC 61000-4-8 PFMF
  • IEC 61000-4-11

Safety

  • UL 60950-1
  • IEC 62368-1

Green Product

  • RoHS, CRoHS, WEEE

Time

  • 836,374 hrs

Standards

  • Telcordia (Bellcore) Standard

Warranty Period

  •  5 years
