RKP-C110 Series

Features and Benefits

  • 1U rackmount computer with fanless design
  • 11th Gen Intel® Celeron®, or Intel® Core™ i3, i5, or i7 processor
  • Rich interface options for up to 12 LAN ports and up to 10 serial ports
  • 12/24 VDC and dual 100 to 240 VAC/VDC power input options
  • Unified front-panel connectivity design for easy access of interfaces
  • -30 to 60°C operating temperature range
WhatsApp Us
Get Quote Get Quote
Download Datasheet Download Datasheet

Models

Overview

Introduction

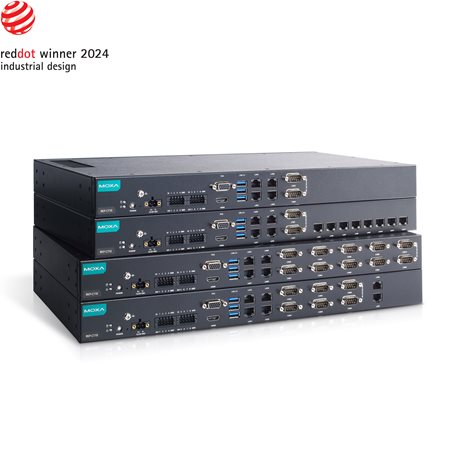

The RKP-C110 rackmount computers are powered by 11th Gen Intel® Celeron®, or Intel® Core™ i3, i5, or i7 processor. The computers come with a rich set of interface options including up to up to 12 Gigabit Ethernet ports, 10 software-selectable RS-232/422/485 serial ports, and 8 digital inputs and 8 digital outputs. The communication interfaces are all located on the front panel for enabling easy access and convenient expansion for industrial applications. Two hand-rotated 2.5” SSD storages and an outer replaceable RTC battery design deliver a reliable, durable, and versatile platform for a more user-friendly option.

Designed as 1U standard form factor fanless rackmount computers with an operating temperature range of -30 to 60°C and a build-in TPM 2.0 module, the RKP-C110 computers are ideal as reliable and secure computing platforms for industrial applications in extreme operating environments.

Specifications

Computer

CPU

  • RKP-C110-C1 models: Intel® Celeron® 6305E “(Dual core, 4M cache, 1.80 GHz)
  • RKP-C110-C3 models: Intel® Core™ i3-1115G4E (Quad core, 4M cache, 3 GHz, Base: 2.20 GHz)
  • RKP-C110-C5 models: Intel® Core™ i5-1145G7E (Quad core, 8M cache, 2.60 GHz, Base: 1.50 GHz)
  • RKP-C110-C7 models: Intel® Core™ i7-1185G7E (Quad core, 12M cache, 2.80 GHz, Base: 1.80 GHz)

System Memory Slot

  • SODIMM DDR4 slots x 1, up to 32 GB max.

System Memory Pre-installed

  • 8 GB DDR4

Storage Slot

  • 2.5-inch SSD slots x 2 (SATAIII interface)
    RAID 0/1 support

Supported OS

  • Windows images and drivers supported:
    – Windows 11 IoT Ent LTSC 2024 64-bit
    – Windows 10 IoT Ent LTSC 2021 64-bit
    – Windows 11 Professional 64-bit
    – Windows Server 2022 (driver support only)
  • Linux image supported:
    – Debian 12 (kernel 6.10)
  • Linux drivers supported:
    – Debian 12 (kernel 6.10)
    – Ubuntu 22.04 LTS/HWE
    – RHEL 9 (kernel 5.14)

Graphics Controller

  • Intel® Iris® Xe Graphics

Ethernet Ports

  • RKP-C110-C1-8L-T/C3-8L-T/C5-8L-T/C7-8L-T models:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 12
  • RKP-C110-C1-2L4C-T/C3-2L4C-T/C5-2L4C-T/C7-2L4C-T models:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 6
  • All other models:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

Serial Ports

  • RKP-C110-C1-8C-T/C3-8C-T/C5-8C-T/C7-8C-T models:
    RS-232/422/485 ports x 10, software selectable (DB9 male)
  • RKP-C110-C1-2L4C-T/C3-2L4C-T/C5-2L4C-T/C7-2L4C-T models:
    RS-232/422/485 ports x 6, software selectable (DB9 male)
  • All other models:
    RS-232/422/485 ports x 2, software selectable (DB9 male)

USB 3.0

  • USB 3.0 hosts x 3, type-A connectors

Digital Input

  • DIs x 8

Digital Output

  • DOs x 8

TPM

  • TPM v2.0

Video Output

  • HDMI 2.0b x 1, (type A connector)
  • VGA x 1, 15-pin D-sub connector (female)

Buttons

  • Reset button
  • Power button

Magnetic Isolation Protection

  • 1.5 kV (built-in)

Baudrate

  • 50 bps to 115.2 kbps

Connector

  • DB9 male

Data Bits

  • 5, 6, 7, 8

Parity

  • None, Even, Odd, Space, Mark

Stop Bits

  • 1, 1.5, 2

Flow Control

  • RTS/CTS, XON/XOFF

RS-232

  • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

  • Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

  • Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

Connector

  • Spring-type Euroblock terminal

Sensor Type

  • Dry contact

Dry Contact

  • Logic 0: Short to GND
  • Logic 1: Open

Connector

  • Spring-type Euroblock terminal

I/O Type

  • Sink

Current Rating

  • 200 mA per channel

Voltage

  • 0 to 24 VDC

System

  • Power x 1
  • Storage x 1

LAN

  • 2 per port (10/100/1000 Mbps)

Input Voltage

  • 12/24 VDC
  • 2HV-T models: 100 to 240 VAC/VDC

Power Connector

  • Screw-fastened Euroblock terminal

Power Consumption

  • 90 W

Housing

  • Metal

IP Rating

  • IP20

Dimensions

  • 440 x 230 x 43.6 mm (17.32 x 9.06 x 1.72 in)
  • 2HV-T models: 440 x 360 x 43.65 mm (17.32 x 14.17 x 1.72 in)

Weight

  • RKP-C110-C1-8C-T/C3-8C-T/C5-8C-T/C7-8C-T models:
    3,610 g (7.95 Ib)
  • RKP-C110-C1-2L4C-T/C3-2L4C-T/C5-2L4C-T/C7-2L4C-T models:
    3,540 g (7.80 Ib)
  • RKP-C110-C1-8L-T/C3-8L-T/C5-8L-T/C7-8L-T models:
    3,800 g (8.37 Ib)
  • RKP-C110-C1-T/C3-T/C5-T/C7-T/C1-T-Win10/C3-T-Win10/C5-T-Win10/C7-T-Win10 models:
    3,350 g (7.38 Ib)
  • RKP-C110-C1-2HV-T/C3-2HV-T/C5-2HV-T/C7-2HV-T models:
    5,616 g (12.38 lb)

Installation

  • Rack mounting (standard 1U)

Operating Temperature

  • -30 to 60°C (-22 to 140°F)

Storage Temperature

  • -40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

  • 5 to 95% (non-condensing)

EMC

  • EN 55032/35

EMI

  • CISPR 32, FCC Part 15B Class A
  • BSMI

EMS

  • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  • IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
  • IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
  • IEC 61000-4-6 CS: 3 V
  • IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

Safety

  • IEC 62368-1
  • UL 62368-1
  • BSMI

Shock

  • IEC 60068-2-27

Vibration

  • IEC 60068-2-64

Package Drop Test

  • ISTA 1A

Package Vibration Test

  • ISTA 1A

Green Product

  • RoHS, CRoHS, WEEE

Time Source

  • Built-in RTC (real-time clock) with lithium-battery backup

Automatic Reboot Trigger

  • Built-in WDT

Time

  • 493,336
  • 2HV-T models: 1,435,365 hrs hrs

Standards

  • Telcordia (Bellcore), GB

Warranty Period

  • 3 years
  • RKP-C110-C1-T
  • RKP-C110-C1-T-Win10
  • RKP-C110-C1-8L-T
  • RKP-C110-C1-8C-T
  • RKP-C110-C1-2L4C-T
  • RKP-C110-C5-T
  • RKP-C110-C5-T-Win10
  • RKP-C110-C5-8L-T
  • RKP-C110-C5-8C-T
  • RKP-C110-C5-2L4C-T
  • RKP-C110-C7-T
  • RKP-C110-C7-T-Win10
  • RKP-C110-C7-8L-T
  • RKP-C110-C7-8C-T
  • RKP-C110-C7-2L4C-T
  • RKP-C110-C1-2HV-T
  • RKP-C110-C3-2HV-T
  • RKP-C110-C5-2HV-T
  • RKP-C110-C7-2HV-T
